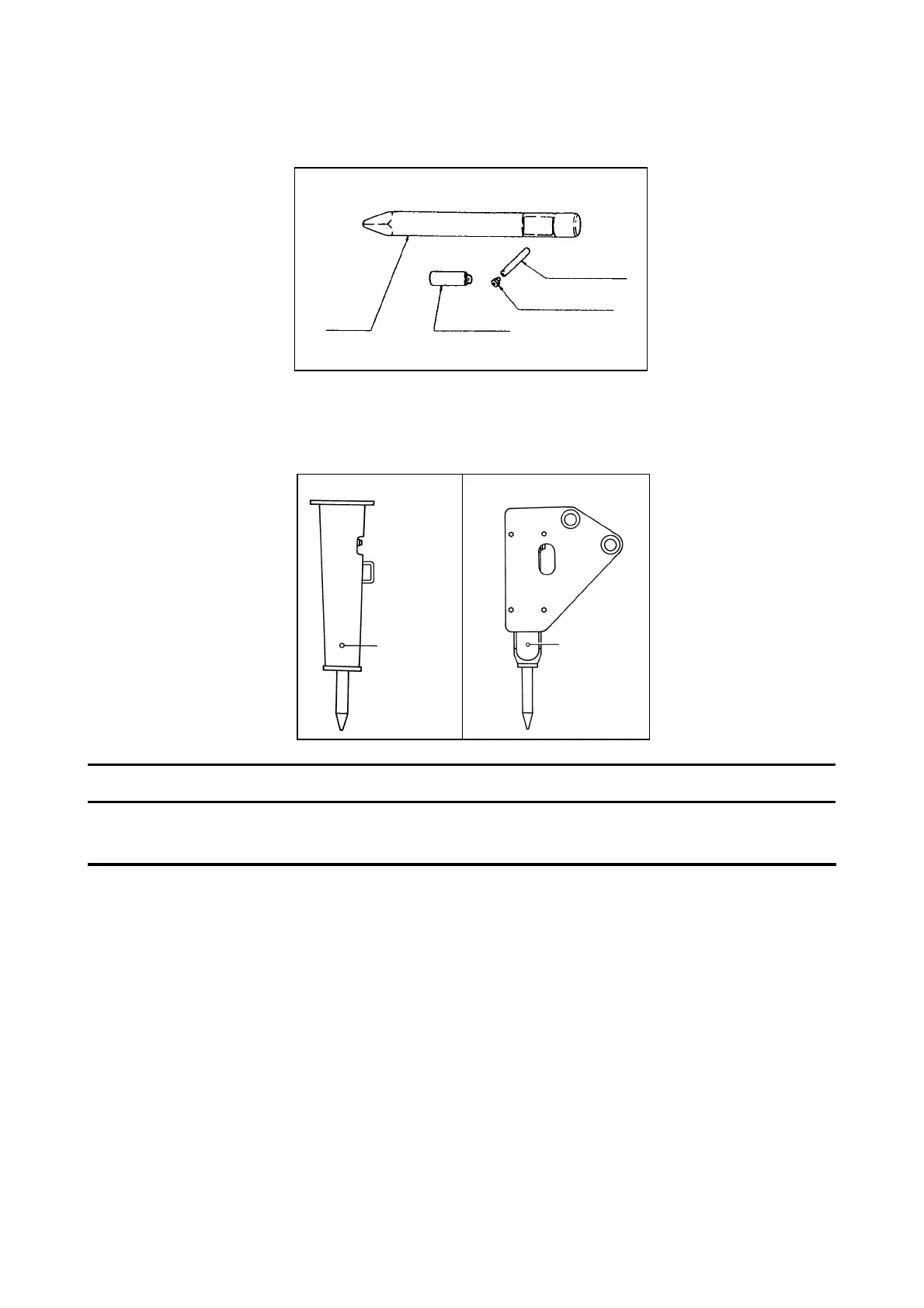

Replacement of rod
3 – 12
4. Pull out the rod. Check the removed parts for abrasion, damage, and scratches. Remove burrs and
swelling especially from the rod pin.
5. When assembling the rod pin, align the rod pin hole in the front head with the groove in the rod, and
insert the rod pin. Grease the moving section of the rod pin and rod.
T-box Side bracket
NOTICE
Substantially deformed rod pin will make it difficult to replace the rod. Check the
condition periodically, and replace earlier than usual.
6. Reassemble a new rod in the opposite procedure of disassembly.
Grease
nipple
Grease
nipple
Screw plug
Stop pin
Rod pin
Rod
To Next Page
