Operation procedures (Breaking)
2 – 16

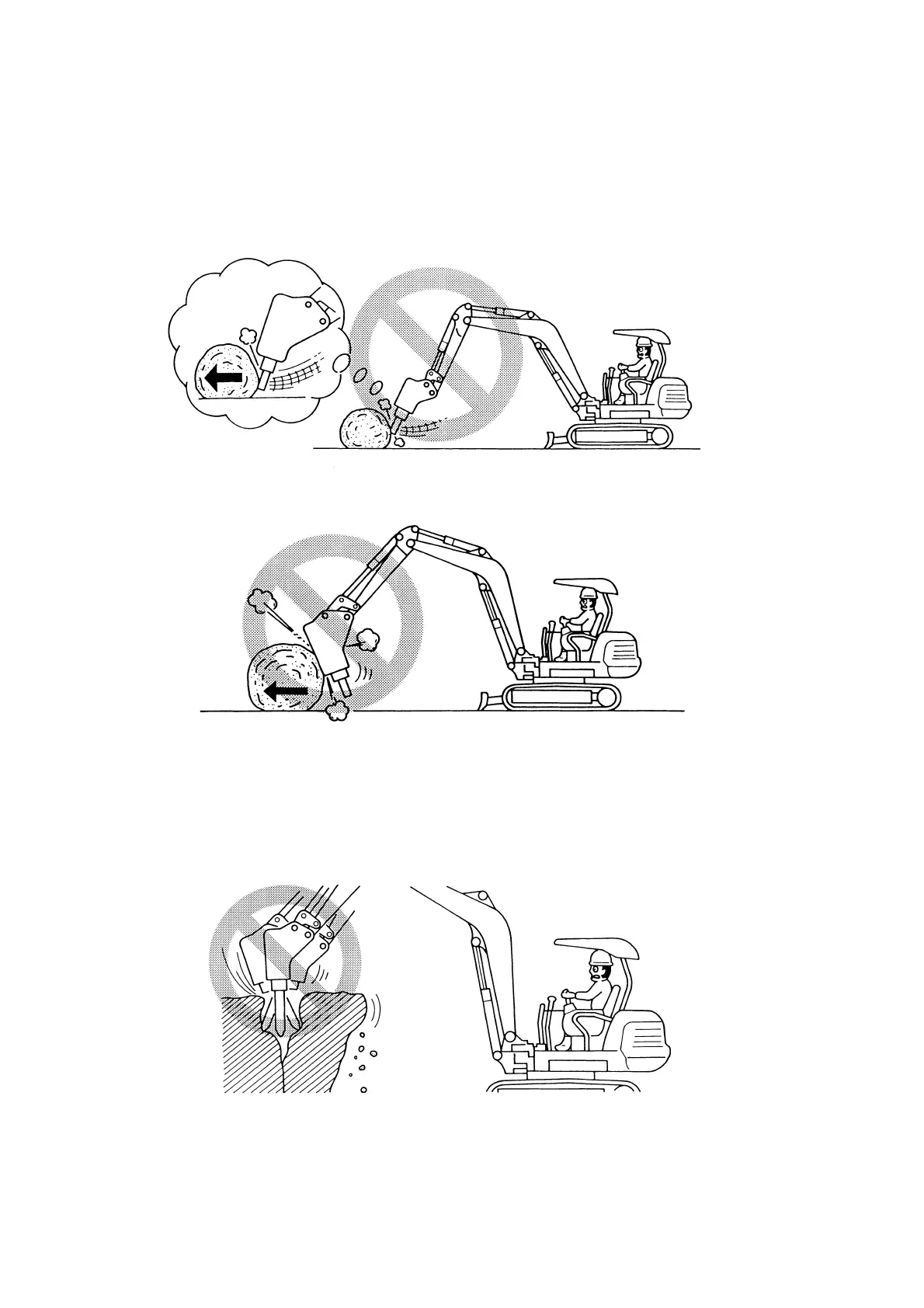

3. Do not move rock.
Rolling or falling a rock with the rod end or bracket side by using the boom or arm of the base machine
as shown in the figure will result in breakage of the breaker mounting bolt or bracket, breakage and
galling of the rod, and damage to the arm and boom. Do not move rock.
It is strictly prohibited to travel when the breaker is in contact with rock.
4. Do not wrench open rock.
Do not put the rod into a crack in rock and move the rod to and for to break the rock, otherwise the rod
will be broken or the frame and mounting bracket will be damaged.
Prohibited.
Prohibited.
Do not try to
wrench open
a rock.
