Furukawa F2 - Page 70

Maintenance, inspection and repair
3 – 6

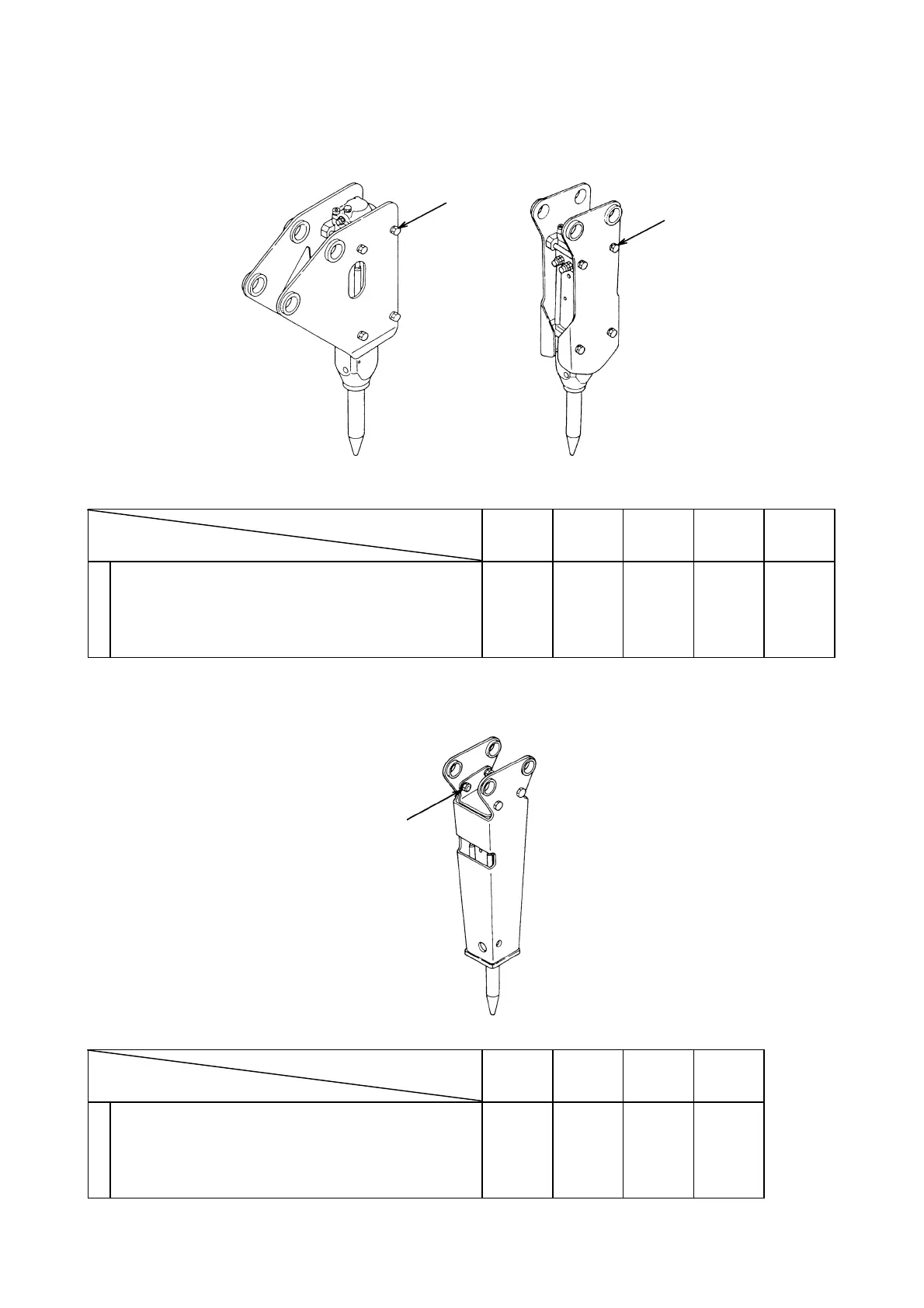

Side Bracket / bracket
n
nn
n F1-F5
Unit: Nm
Model
Location
F1 F2 F3 F4 F5
7 Bracket
Bolt size
HEX head size mm
Nut HEX size mm
Tightening torque N-m
M16×2.0
24
24
294
M18×2.5
27
27
392
M20×2.5
30
30
490
M22×2.5
32
32
588
M24×3.0
36
36
785
B-box
n
nn
n F2-F5
Unit: Nm
Model
Location
F2 F3 F4 F5
8 Top cover
Bolt size
HEX head size mm
Nut HEX size mm
Tightening torque N-m
M18×2.5
27
27
294
M20×2.5
30
30
343
M22×2.5
32
32
392
M24×3.0
36
36
490
7
7
8
