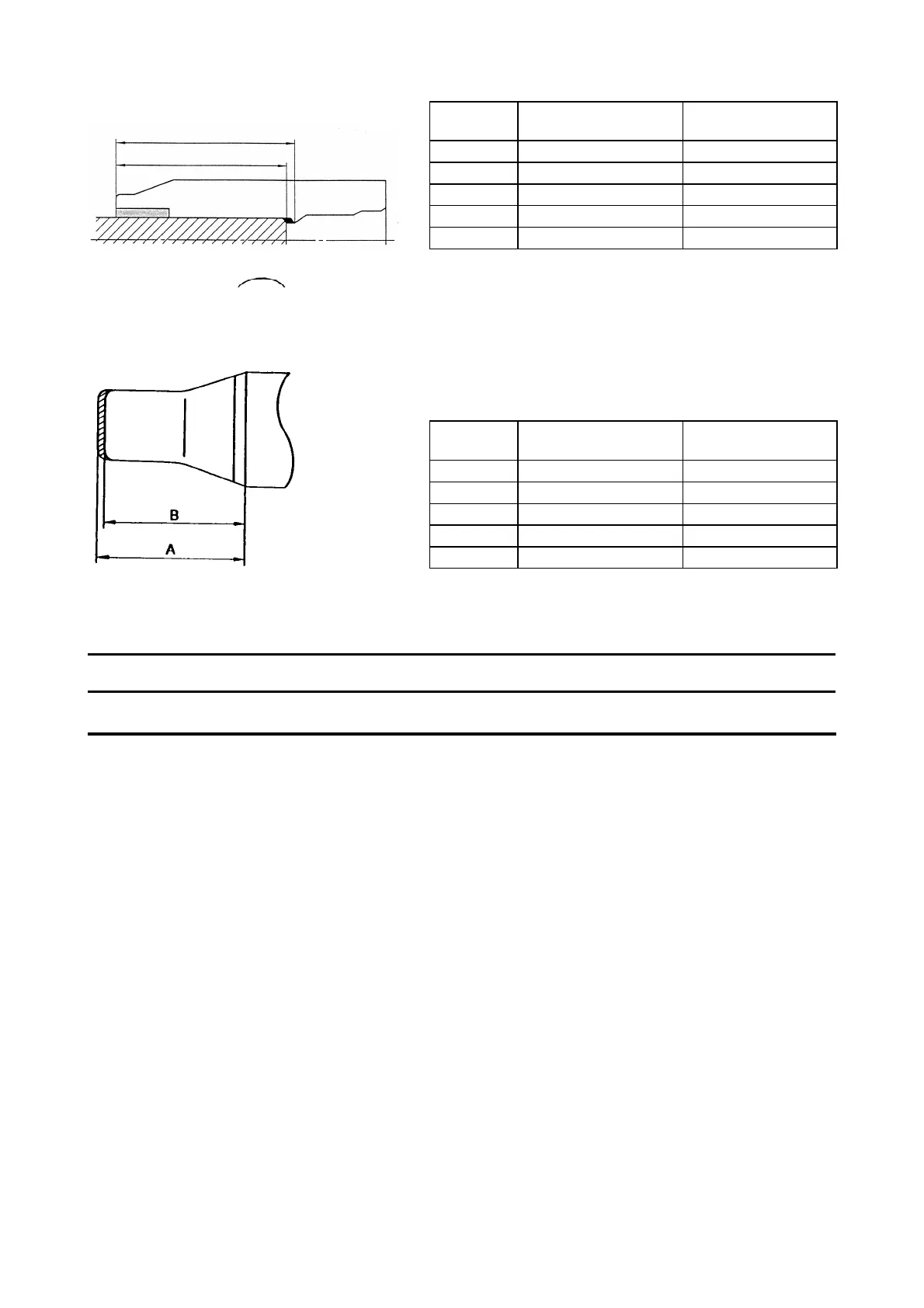

Wear limit dimensions for consumable parts
3 – 9
n
nn
n Front head
NOTICE
Be sure to use "genuine Furukawa parts" for replacement.
Unit (mm)
Model
Inner length (A) of
new rod
Wear limit inner
length(B) of rod
F1 135 137
F2 165 167
F3 185 187
F4 205 208
F5 227 230
Unit (mm)
Model
Dimension (A) of
new part
Wear limit
dimension(B)
F1 35 34
F2 35 34
F3 45 44
F4 50 49
F5 53 52
n
nn
n Piston
B
A
Rod
Measurement o
f
