Furuno 1722 - Page 7

AIR-033-407 adapter cable
( direct connection of smart sensor to DATA 4)
Terminal
Block
(local supply)
NAVNET 10.4"
Display
NOTES:
Waypoint information
from a external GPS is
possible by menu
selection.
Press [MENU],
[PLOTTER SETUP],
select [QP], edit QP to
"EXT WPT (RMB)"
and press [ENTER].
PORT PRIORITIES:
HIGHEST:
(*BBWGPS overrides
all ports)
NETWORK PORT
(any position data
coming in to display)
DATA 4 (NMEA I/O)
DATA 2 (NMEA I/O)
DATA 1 (NMEA I/O)*
LOWEST:
DATA 4
remaining wire colors
for 000-144-418 cable
are same as shown
on AIR-033-407 adapter
FURUNO
BBWGPS
antenna
FURUNO GP32
GPS system
OR
other external
GPS unit
(follow
manufacturer
wiring
specifications)
Autopilot
VHF RADIO
(DSC input)
DATA2 shown
OR
use DATA4
RS232 NMEA
output for RS232
level requirement
FURUNO
SMART
DEPTH SENSOR
Connect BBWGPS
attached cable
directly to the
NavNet display
DATA 1 (NMEA input/output)
blue (common ground)
green (input RS232)
yellow (output RS232)
bare wire (common ground)
white (output RS232)
blue (input RS232)
DATA 4
use AIR-033-407 adapter for DATA 4 (connect direct to DATA 1)
NMEA output(white RS232)
OR
Terminal
Block
(local supply)
DATA 2 (NMEA input/output)
DATA 3 (FurunoAD10 or NMEA Heading only)
FURUNO
PG1000
white (NMEA output +)
black (NMEA output -)
cable (local supply)
cable (local supply)
AND/OR
white (NMEA heading)
black (NMEA heading)
000-125-237 cable supplied with PG1000
cable (local supply)
OR (one only!)
NMEA input (blue RS232)
ext. buzzer (black)
+12VDC (red)
common ground(bare wire) for
12VDC, RS232 I/O & buzzer
7(P)
plug
FURUNO GP32
GPS system
OR
other external
GPS unit
(follow
manufacturer
wiring
specifications)
OR
Terminal
Block
(local supply)
white
NMEA
output(+)
RS422
blue
NMEA
output(-)
RS422
yellow
NMEA
input(+)
green
NMEA
input(-)
OR (one only!)

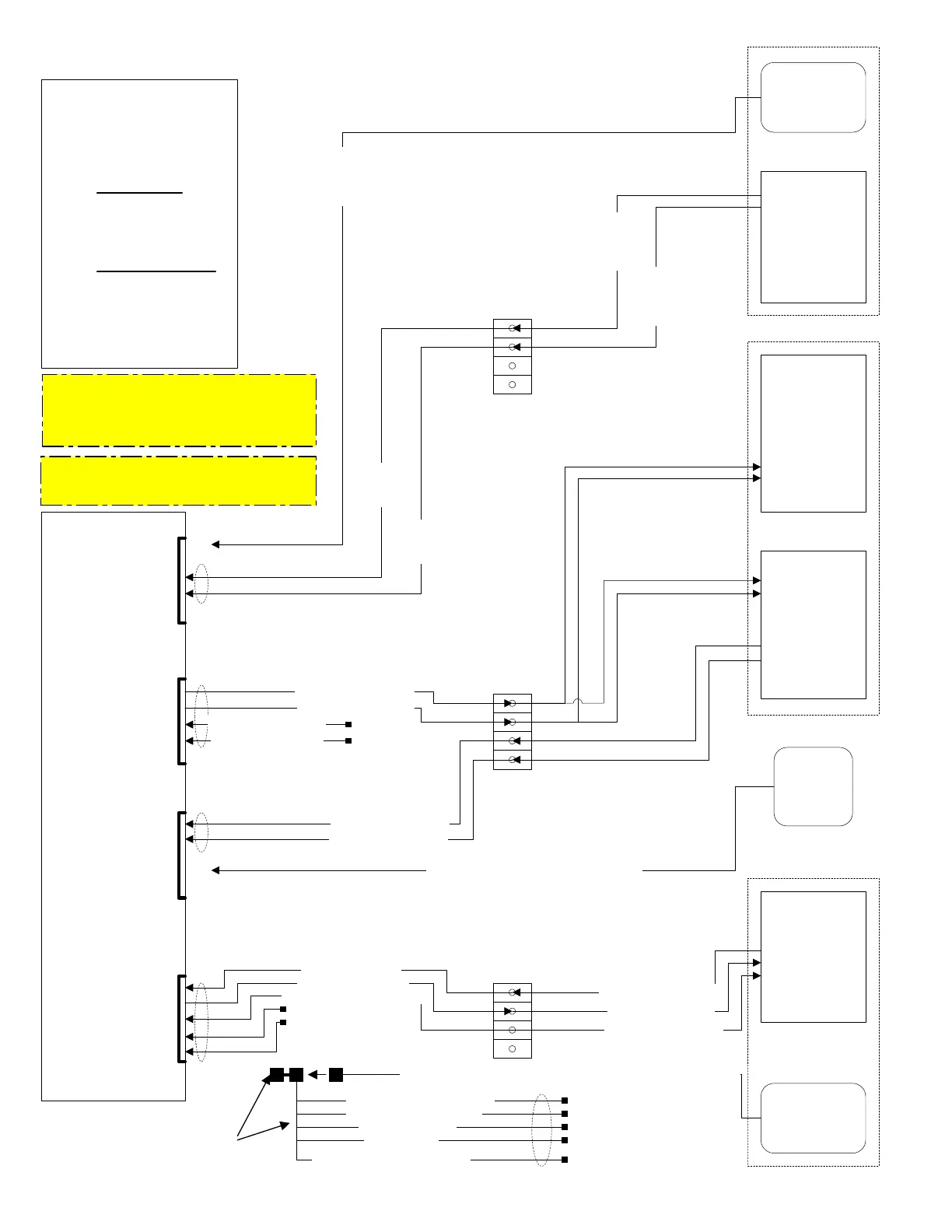

NAVNET Wiring Configurations
NOTE: These are examples of NavNet
wiring. Please contact Furuno or a local
authorized dealer for more advanced or
special configurations.
NAVNET 7" Display
NOTES:
Radar (17X2/C type) display
DATA 1 same as 10.4"
DATA 2 heading only!
DATA 3 same as 10.4" DATA 4
Plotter (GP1700C)
DATA 1 same as 10.4"
DATA 2 NMEA input/output
DATA 3 same as 10.4" DATA 4
Furuno BBWGPS
000-117-603 (5m) cable
000-117-603 (5m) cable
000-144-418 (5m) cable
000-145-612 (1.2m) cable
(included with GP32)
000-144-418 (5m) cable
000-145-612 (1.2m) cable
(included with GP32)
Power supply connections are omitted for clarity
Refer to appropriate installation manual for more information
OR (one only!)
yellow (NMEA input +)
green (NMEA input -)
from ext.
NMEA device
NavNet displays input & output NMEA data in
RS422 (+/-) and RS232 (+/ground) voltage levels,
use the appropriate connections as required.
RS422 + input (yellow)
RS422 - input (green)
Heading output
(NMEA)
NMEA input
NMEA input
