2. WIRING
2-2
2.2 Transducer Cable
Separate the transducer cable as far as possible from power cables to prevent inter-
ference to the sonar. Keep the transducer cable away from televisions and monitors
to prevent noise in the cable.
Fabricate the cable as shown in the procedure below, then connect it inside the unit
with a WAGO connector.

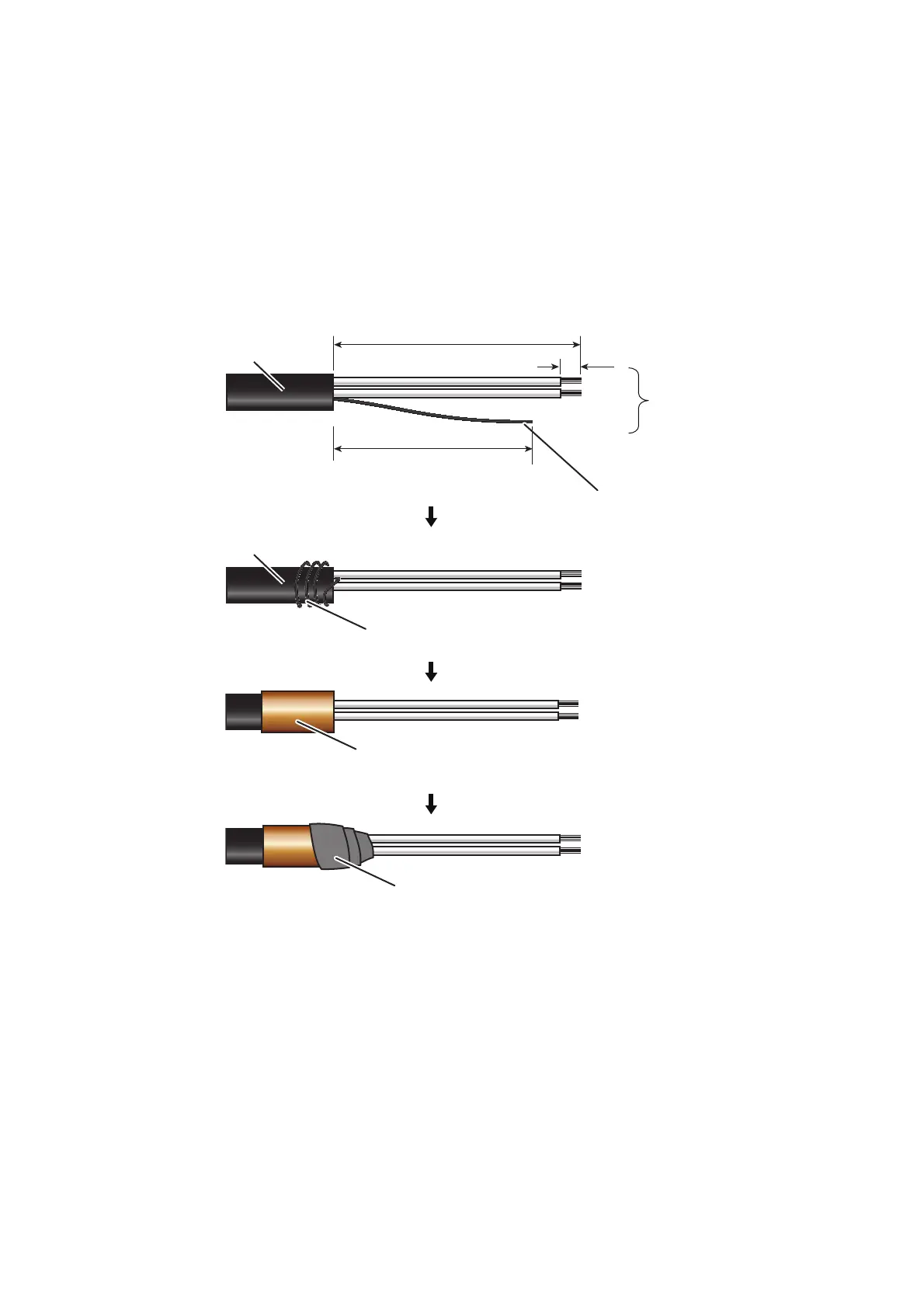

1. Fabricate the cable as shown below.
Note: Keep the recommended lengths to prevent noise in the cable.
2. Remove the outer cover.
3. Unfasten four screws to remove the inner chassis cover.
Unit: mm
Sheath
x9x9
ShieldShield
110
6
80
Wrap with vinyl tape (width: 30 mm).
Wrap shield with conductive tape.
Wrap shield around sheath.
To Next Page
