4. OPERATION
4-14

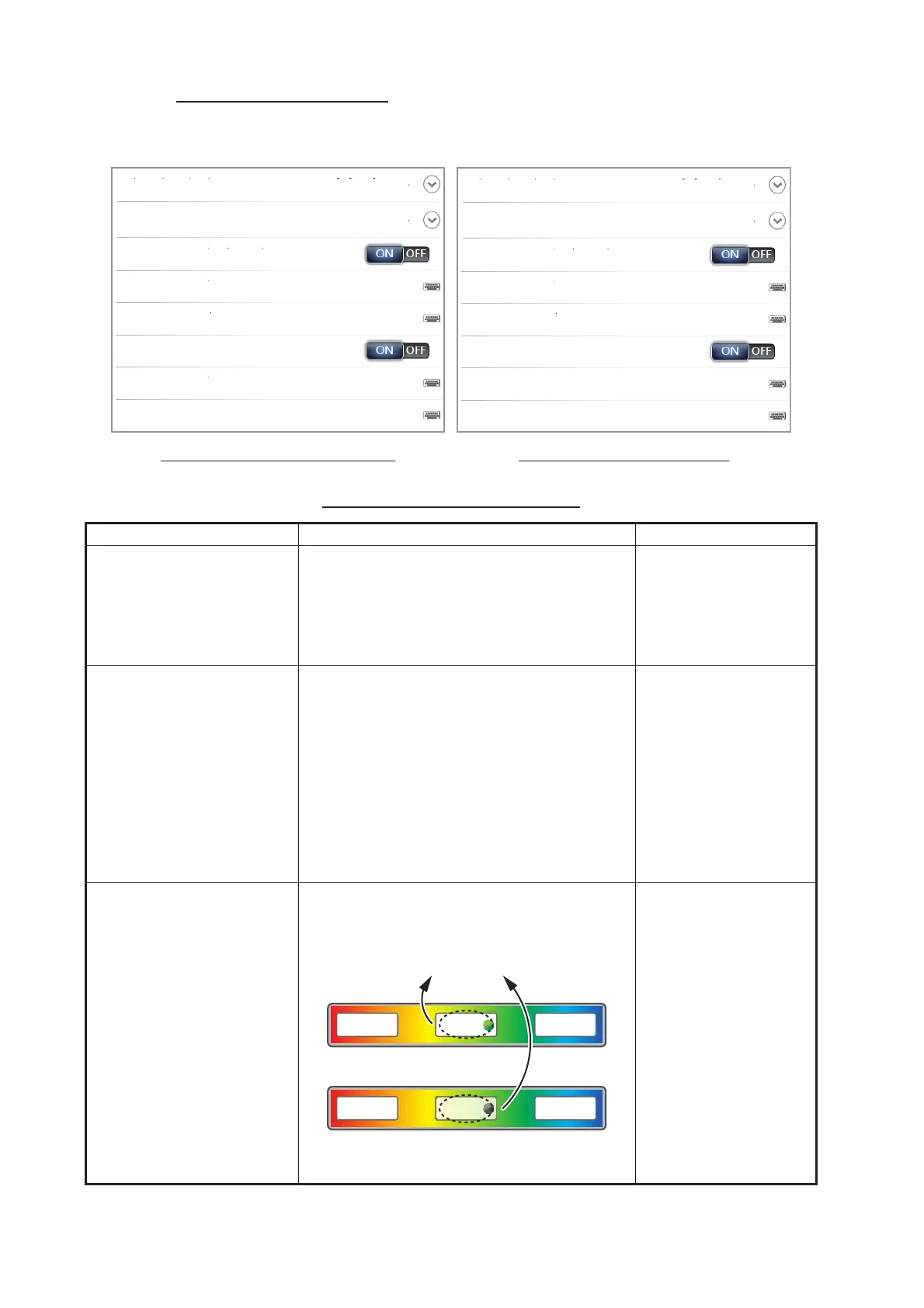

How to set color shading
Open the menu, select Multi Beam to show the menu for setting color shading.
[Color Mode] selected to [Seabed]
Menu item Description Setting options
[Seabed Color] For setting multi tone or single tone. [Classic Hue]
[Inverted Classic Hue]
[Red Hue]
[Blue Hue]
[Green Hue]
[Yellow Hue]
[Fish Monochrome Color] For setting single tone or single color. [Gray Hue]
[Brown Hue]
[Red]
[Green]
[Blue]
[Cyan]
[Magenta]
[Black Or White]
[Pink]
[Light Green]
[Yellow]
[Auto Seabed Shading] Use automatic or manual seabed shading. [ON], [OFF]
Minimum Value
Maximum Value
Auto Seabed Shading
Minimum Value
Maximum Value
Auto Fish Shading
Seabed Color
Fish Monochrome Color
0 m
50 m
0 m
50 m
Classic Hue
Gray Hue
Minimum Value
Maximum Value
Auto Seabed Shading
Minimum Value
Maximum Value
Auto Fish Shading
Fish Color
Seabed Monochrome Color
0 m
50 m
0 m
50 m
Classic Hue
Gray Hue
[Color Mode] selected to [Seabed] [Color Mode] selected to [Fish]
ON
OFF
(AUTO is greyed out)
0.0 m
50.0 m
AUTO
0.0 m
50.0 m
AUTO
Tap here to turn the automatic
seabed shading scale [ON] or [OFF].
