1.4.2 PSU-017 (option)
A power supply unit is required when you connect a radar sensor. The PSU-017 is available in the
combination of DRS2D/4D and TZT9/14/BB. Use the PSU-012 or PSU-013 in all other combina-
tions.
Note: When the fuse in this unit blows, the LED does not light. At this time, the PSU-017 can not
output 48 VDC, but high voltage is still present inside. Turn off the unit from the ship’s mains to
service the unit.
Contents of PSU-017
Mounting
When selecting a location, keep in mind the following points. Fix the power supply unit on the
desktop or bulkhead with four tapping screws (4x20, supplied).
• Location is dry, well ventilated.
• Make sufficient maintenance space.
• A disconnecting device (breaker, etc.) is required when the power cable is connected to ship’s
mains.
Name Type Code No. Qty Remarks
Power supply unit PSU-017 - 1
Self-tapping screw 4x20, SUS304 000-158-850-10 4
Fuse FGMB 125V 7A PBF 000-157-493-10 1 For the replacement
FGMB 125V 1.5A PBF 000-157-464-10 1

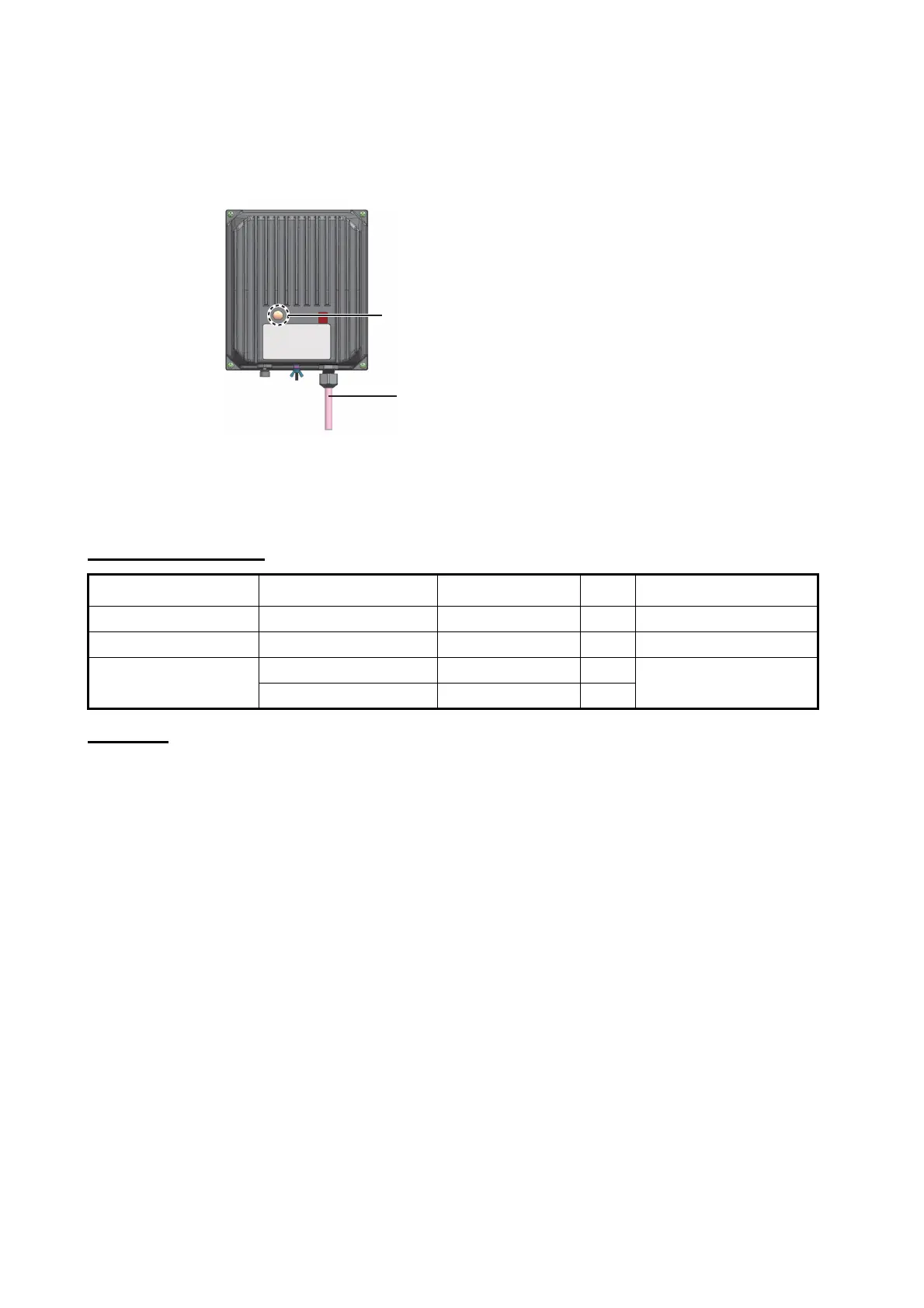

Power cable (5 m):
The power cable is preattached to
the unit.
LED for the operation check:
Lights in green when the unit
outputs 48 VDC.
