1. OPERATION
1-31
RIGHT-TOP
LEFT-BOTTOM
ZONE
1-8 nm
20-200 nm
20-200 nm
TX/RX
RX
UNUSED

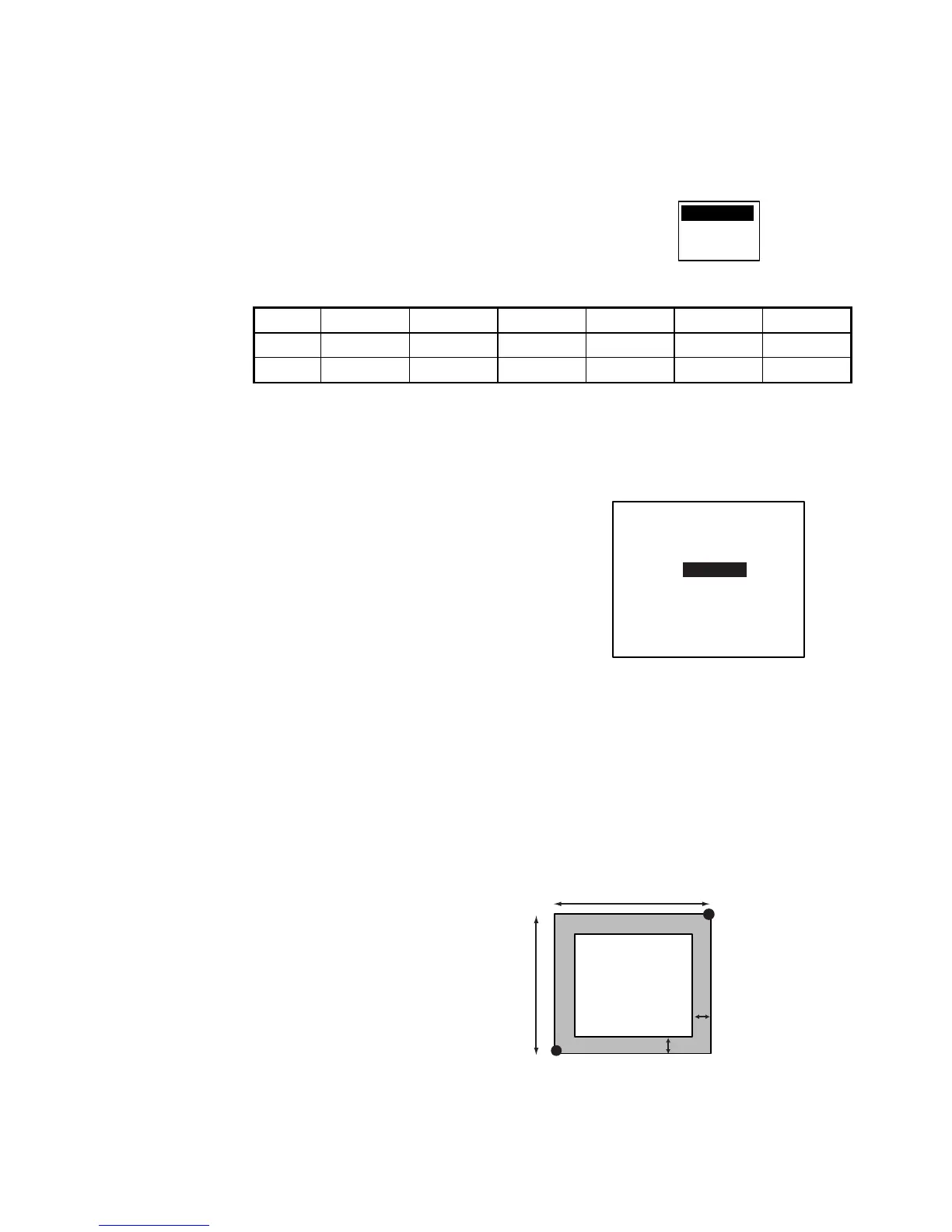

[EDIT CHANNEL] 2/2
CH AREA
RIGHT TOP
LAT: 0
°
00.0'N
LON: 0
°
00.0'E
LEFT BOTTOM
LAT: 0
°
00.0'N
LON: 0
°
00.0'E
7. Select power desired then press the ENT key.
8. CH NO. CH-A is selected; press the ENT key.
9. Select channel number for CH-A then press the ENT key.
10. CH NO. CH-B is selected; press the ENT key.
11. Select channel number for CH-B then press the ENT key.
12. MODE CH-A is selected; press the ENT key.
13. Select desired mode for CH-A then press the ENT key.
Mode 1 2 3 4 5 6
CH-A TX/RX TX/RX RX RX RX UNUSED
CH-B TX/RX RX TX/RX RX UNUSED RX
14. MODE CH-B is selected; press the ENT key.
15. Select desired mode for CH-B then press the ENT key.
16. ZONE is selected; press the ENT key.
17. Key in the zone distance then press the ENT key. (The setting range is 1 to
8 (nm)).
18. Use ▼ or ▲ to show page 2 of the [EDIT
CHANNEL] sub-menu.
19. LAT of RIGHT TOP is selected; press the ENT key. Enter latitude for the
right-top position (northeast point) of the AIS operating area then press the
ENT key.
20. LON of RIGHT TOP is selected; press the ENT key. Enter longitude for the
right-top position (northeast point) of the AIS operating area then press the
ENT key.
21. LAT of LEFT BOTTOM is selected; press the ENT key. Enter latitude for the
left-bottom position (southwest point) of the AIS operating area then press
the ENT key.
22. LON of LEFT BOTTOM is
selected; press the ENT key.
Enter longitude for the
left-bottom position (southeast
point) of the AIS operating area
then press the ENT key.
Note: The available range is
20-200 nm. If the area contains
overlapping data the older data
will be erased.
