Furuno FA-150 - Pilot Plug (Option)

1. OPERATION
1-35
1.12 Pilot Plug (Option)
A pilot plug, which is connected between the AIS and a PC, is required to feed
AIS information to a PC. The plug is required for the ships passing through the
Panama Canal and the Saint Lawrence Seaway. The specifications for the pilot
plug are as shown below.
Baudrate: 38400 bps
Note: The following setting is required for the FA-150. If the
pilot does not function, check these settings.
Menu Setting
[INITIAL SETTINGS]-
[VIEW I/O PORT]-
[VIEW COM PORT]-
[VIEW COM4]
[MODE]: [EXT DISPLAY]
Type: AMP 206486-1, 206486-2 (9-pin, male)
Signal connection: TX-A ------ Pin 1
TX-B ------ Pin 4
RX-A ------ Pin 5
RX-B ------ Pin 6
SHIELD ------ Pin 9

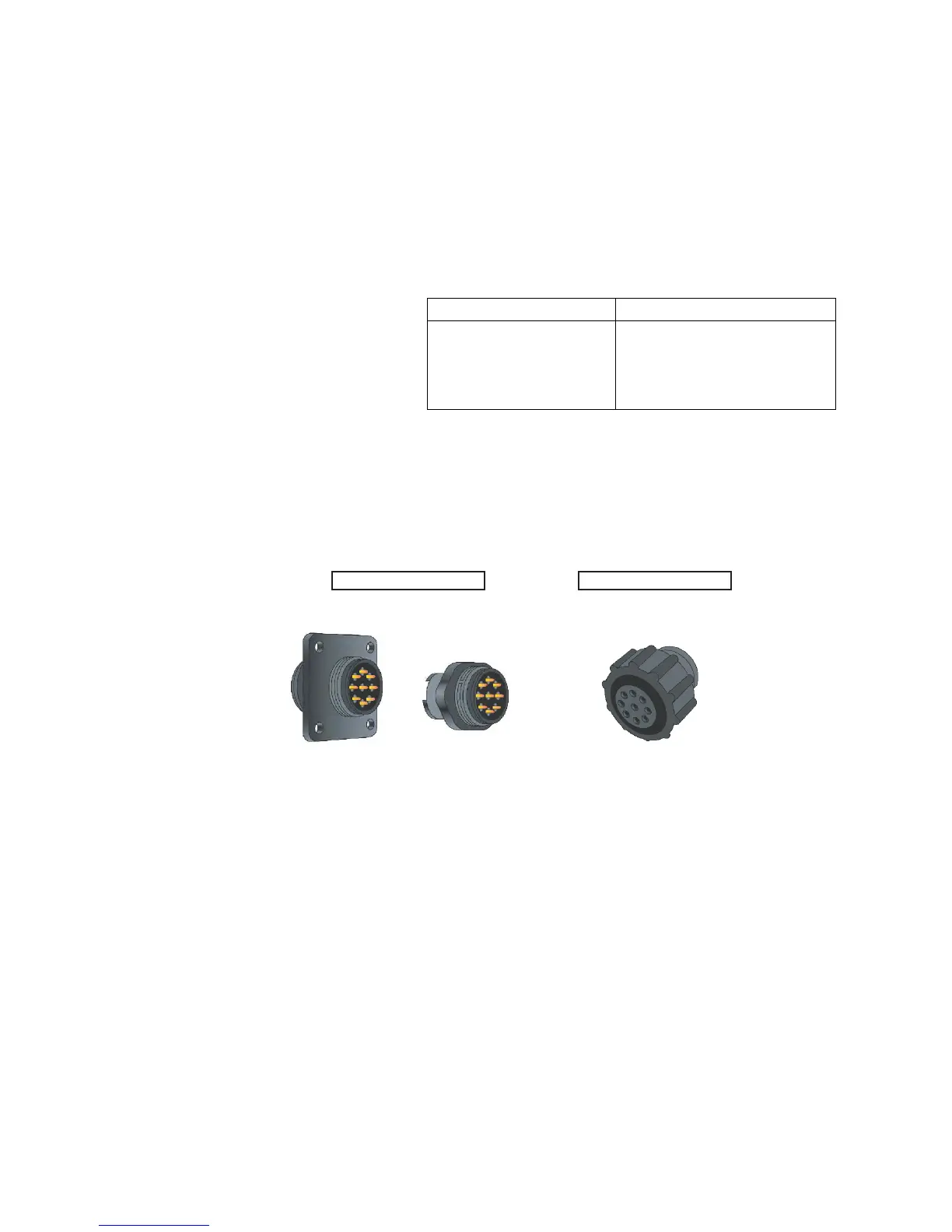

Connector for AIS
Connector for PC
206486-1 206486-2 206485-1
Example
s of connectors
