Furuno FAR-2117 Service Manual

6.1 Self-test
6-8
Key check
Key check is a function for checking the panel keys.

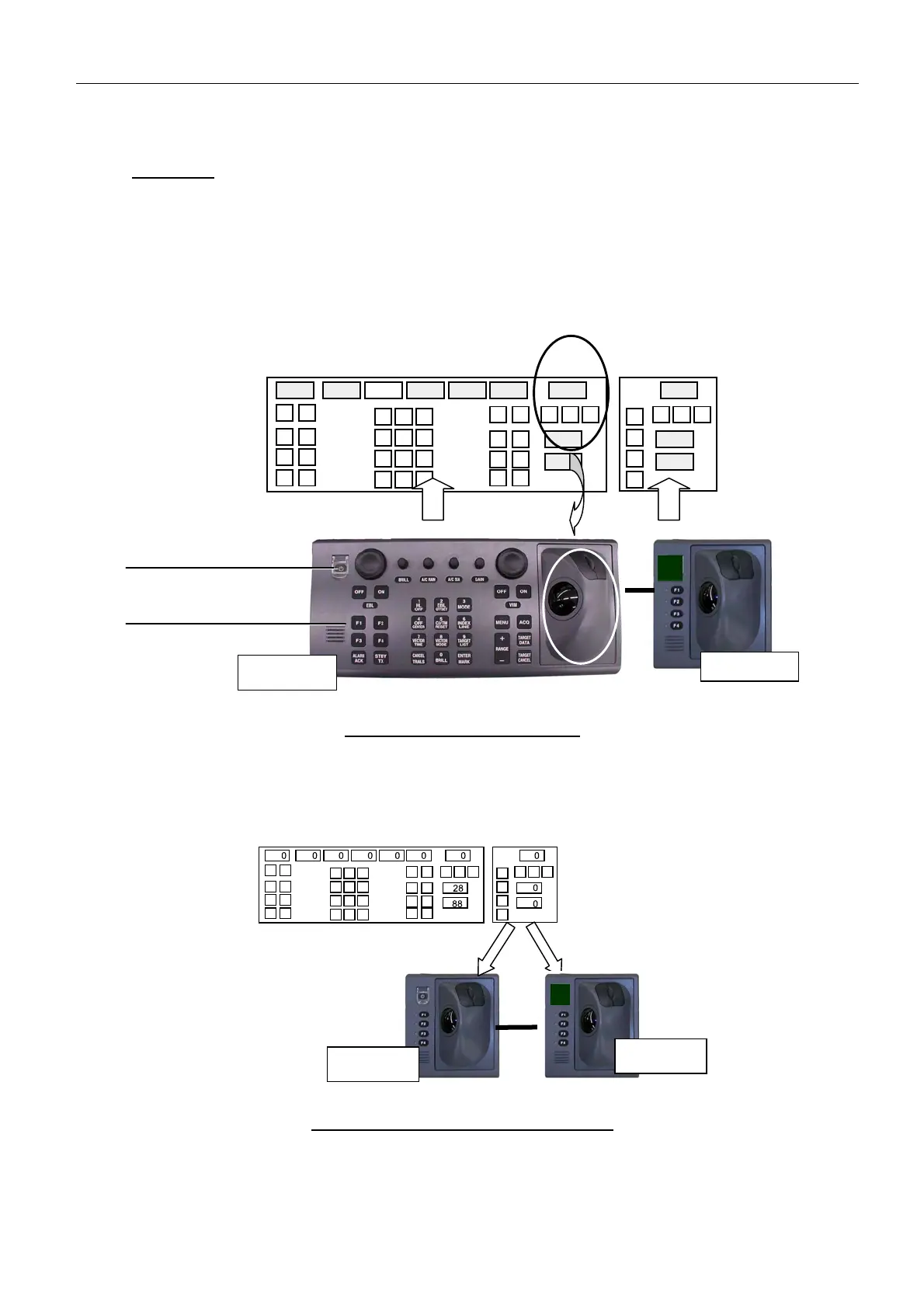

The drawing on the left below corresponds to the arrangement of the keys, knobs and
trackball of RCU-014 and the drawing on the right corresponds to those of RCU-015
and RCU-016 (but the power key is excluded.)
The boxes numerically displayed are used for checking of the knobs and track ball
showing changes in a range between 0 and 255. Other boxes correspond to keys and the
corresponding key is highlighted when a box is pressed.
Fig. 6.1.6 RCU-014 Key Check
When the Trackball control unit RCU-015 is connected with the Remote control unit
RCU-016, both units use the display on the right. The left-side display is not used.
Fig. 6.1.7 RCU-015 and 016 Key Check
000 000 0 0
0
0
28
88
Press the [F1] key 2 times
to go to the next test.
RCU-016
Excluding the Power key.
RCU-014
RPU-015
RPU-016

Furuno FAR-2117 Specifications

General

Range	Up to 96 nautical miles
Power Output	12 kW
Antenna Type	Open Array
IMO Compliance	Yes
Frequency	9.41 GHz
Rotation Speed	24 rpm
Range Scales	0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48, 96 nautical miles
