Furuno FAR-2127 Service Manual

2.3 Monitor Unit
2-34
2.3 Monitor Unit
Fig. 2.3.2 Connections on LCD Display Unit
Cable Clamp
VIDEO IN
(DVI-D)
GND Terminal
Power Supply Terminal
Fuse
100 VAC: 2 A
220 VAC: 2 A
24 VDC: 6 A

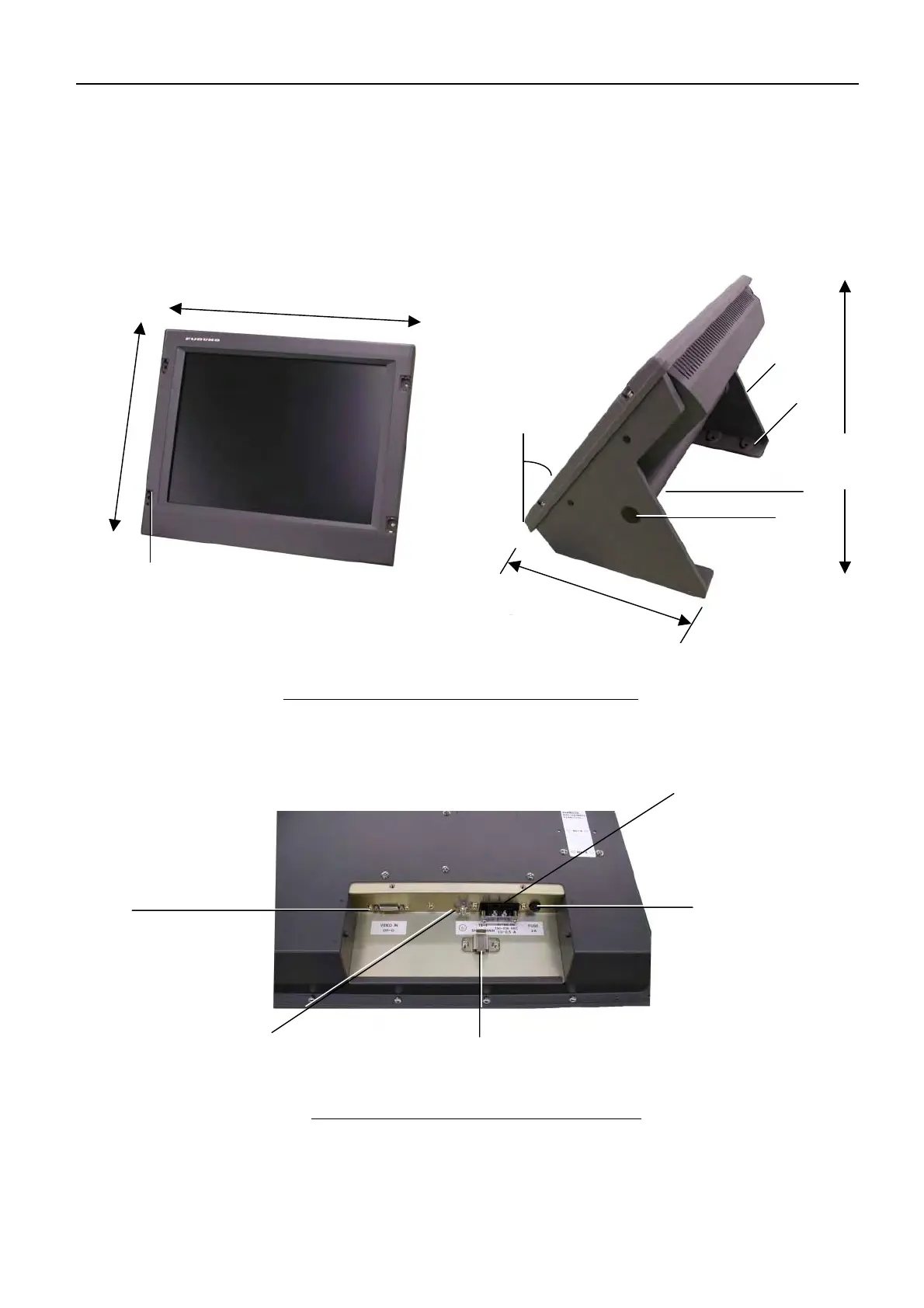

Fig.2.3.1 Monitor Unit (MU-201CR/MU-231CR)
- MU-201CR (20 inch LCD)
- MU-231CR (23 inch LCD)
454 (505)
534 (598)
Hanger Mounting Hole (x4)
with Cover (M6 x 25)
Hanger
Hanger Stay
4-(
φ
)13
35°
409
(451)
2-M10 x 30
352 (351)

Furuno FAR-2127 Specifications

General

Power Output	25 kW
Power Supply	24 VDC
Frequency	9.41 GHz
Range	0.125 to 96 nautical miles
Antenna Size	4 ft
Rotation Speed	24 RPM
Display	LCD
