Furuno FELCOM 19 Installation Manual

2. WIRING
2-3
8D-FB-CV (50 m)

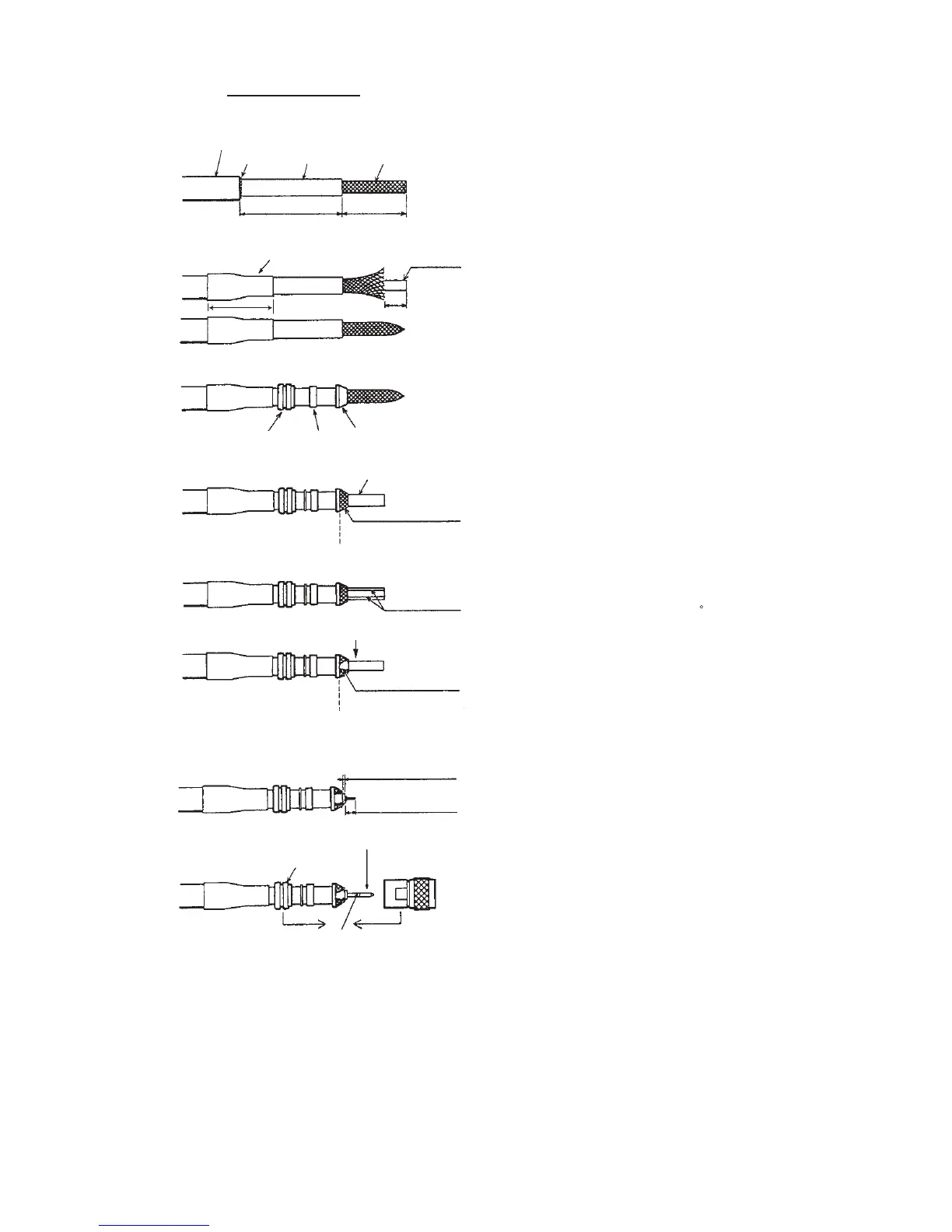

How to fabricate antenna cable 8D-FB-CV
Outer Sheath
Armor
Shield
Dimensions in millimeters.
50
30
Cover with heat-shrink tubing and heat.
30
10
Clamp Nut
Gasket (reddish brown)
Clamp
Trim shield here.
Aluminum Foil
Insulator
Trim aluminum tape foil here.
1
5
Pin
Shell
Clamp Nut
Solder through the hole.
Remove outer sheath and armor by the
dimensions shown left.
Expose inner sheath and shield by the
dimensions shown left.
Remove insulator and core by 10 mm.
Twist shield end.
Slip on clamp nut, gasket and clamp as shown
left.
Fold back shield over clamp and trim.
Cut aluminum foil at four places, 90 from one
another.
Fold back aluminum tape foil onto shield and trim.
Expose the insulator by 1 mm.
Expose the insulator by 5 mm.
Slip the pin onto the conductor. Solder them
together through the hole on the pin.
Insert the pin into the shell. Screw the
clamp nut into the shell.
(Tighten by turning the clamp nut. Do not
tighten by turning the shell.)
Inner Sheath
