2. SYSTEM & INSTALLATION
MENUS

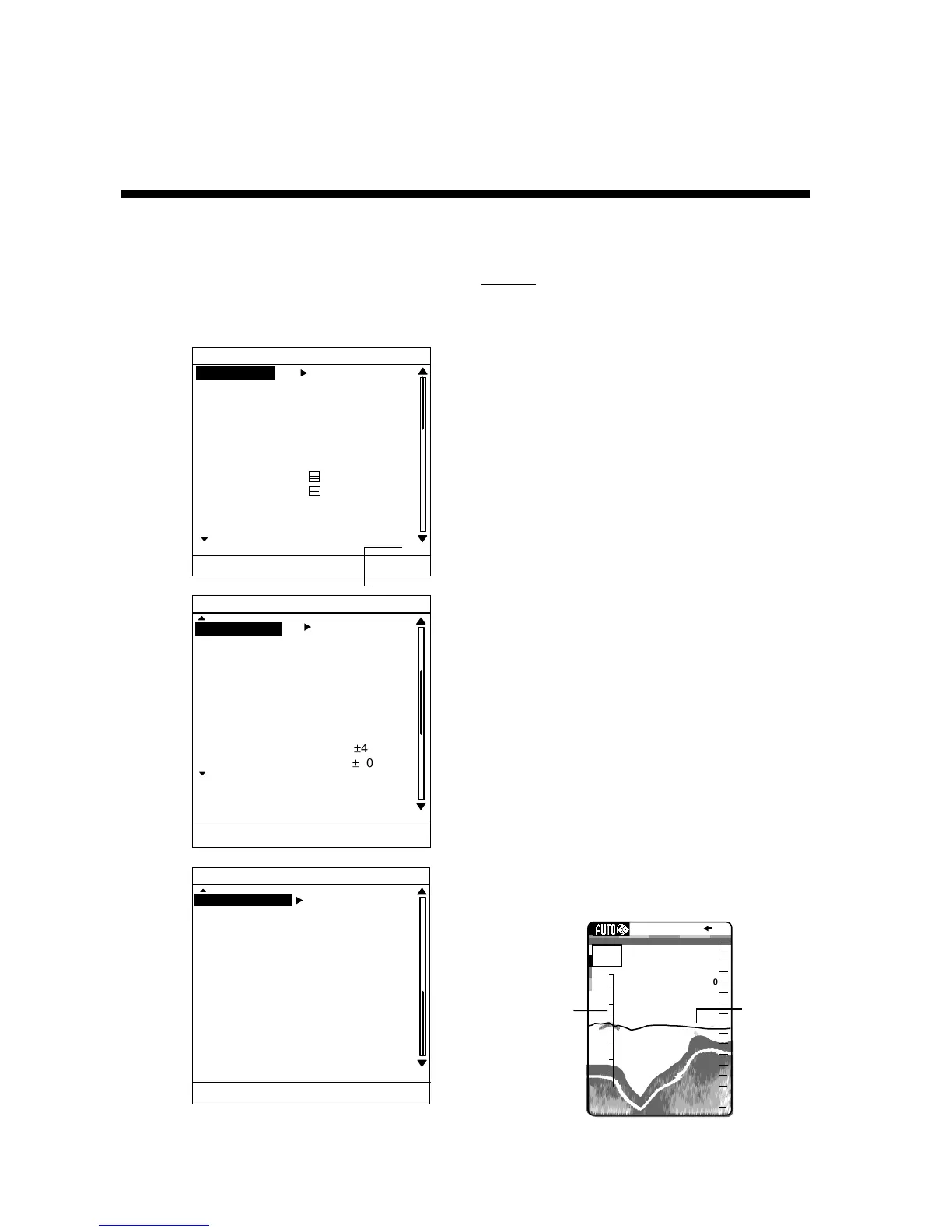

The System menu mainly consists of items
which once set do not require frequent
adjustment. You may display this menu by
choosing SYSTEM MENU at page 2 of the
menu and pressing ►.
SYSTEM MENU
LANGUAGE English
DEPTH UNIT : ft
SPEED UNIT : kt
WIND UNIT : m/s
TEMP UNIT : °F
TEMP GRAPH : Off
NAV DATA-1 :
NAV DATA-2 :
KEY BEEP : On
BATT VOLTAGE : Off
(1/3)
[MENU]: Exit
SYSTEM MENU
(2/3)
NAV DISPLAY Temp/Speed
NMEA0183 : Ver 2.0
TLL OUTPUT : Off
BEARING : True
WIND SPD/DIR : Apparent
TRIP SOURCE : Own
TEMP SOURCE : Own
SPEED SOURCE : Own
TEMP CALIB. : +0.0°F ( ± 40)
SPEED CALIB. : +0% ( ± 50)
Own speed Own temp
10.0 kt 16.2°F
[MENU]: Exit
SYSTEM MENU
(3/3)
BASIC RANGE1 15 ft
RANGE2: 30
RANGE3: 60
RANGE4: 120
RANGE5: 200
RANGE6: 400
RANGE7: 600
RANGE8: 1000 (7-1500)
ZOOM RANGE : 15 ft (7-150)
B/L RANGE : 15 ft (10-30)
(Bottom Lock)
ZOOM MARKER: On
[MENU]: Exit
PAGE 3
PAGE 2
PAGE 1
Page no.
System menus
2.1 System Menu
Page 1
LANGUAGE: The system language is
available in English, several European
languages and Japanese. To change
language, select language desired and
press the [MENU/ESC] key.
DEPTH UNIT: Choose unit of depth
measurement from meters, feet, fathoms,
passi/braza and hiro (Japanese).
SPEED UNIT: Choose unit of speed
measurement from knots, miles per hour
and kilometers per hour. Requires speed
data.
WIND UNIT: Choose unit of wind speed
measurement from m/s, kt, km/h, and mph.
Requires wind speed data.
TEMP UNIT: Choose unit of temperature
measurement; Celsius or Fahrenheit.
Requires temperature data.
TEMP GRAPH: Turns the water
temperature display on or off. The
temperature scale range is 16° (°F) in
“Narrow”; 40° (°F) in “Wide”. Requires
water temperature data.
m
52.6
0
20
40
60
80
0.0
0
50k
1/1
40
80
70
50
60
Temperature
Scale
Temperature
Graph
63.8°F
16.2kt
Water temperature display (wide, °F)
