3. PLOTTER OPERATION
3-26
MARKS SHAPE
▲
¡
¡
¡
¡
¡
¡
▼
¤
¡
✕

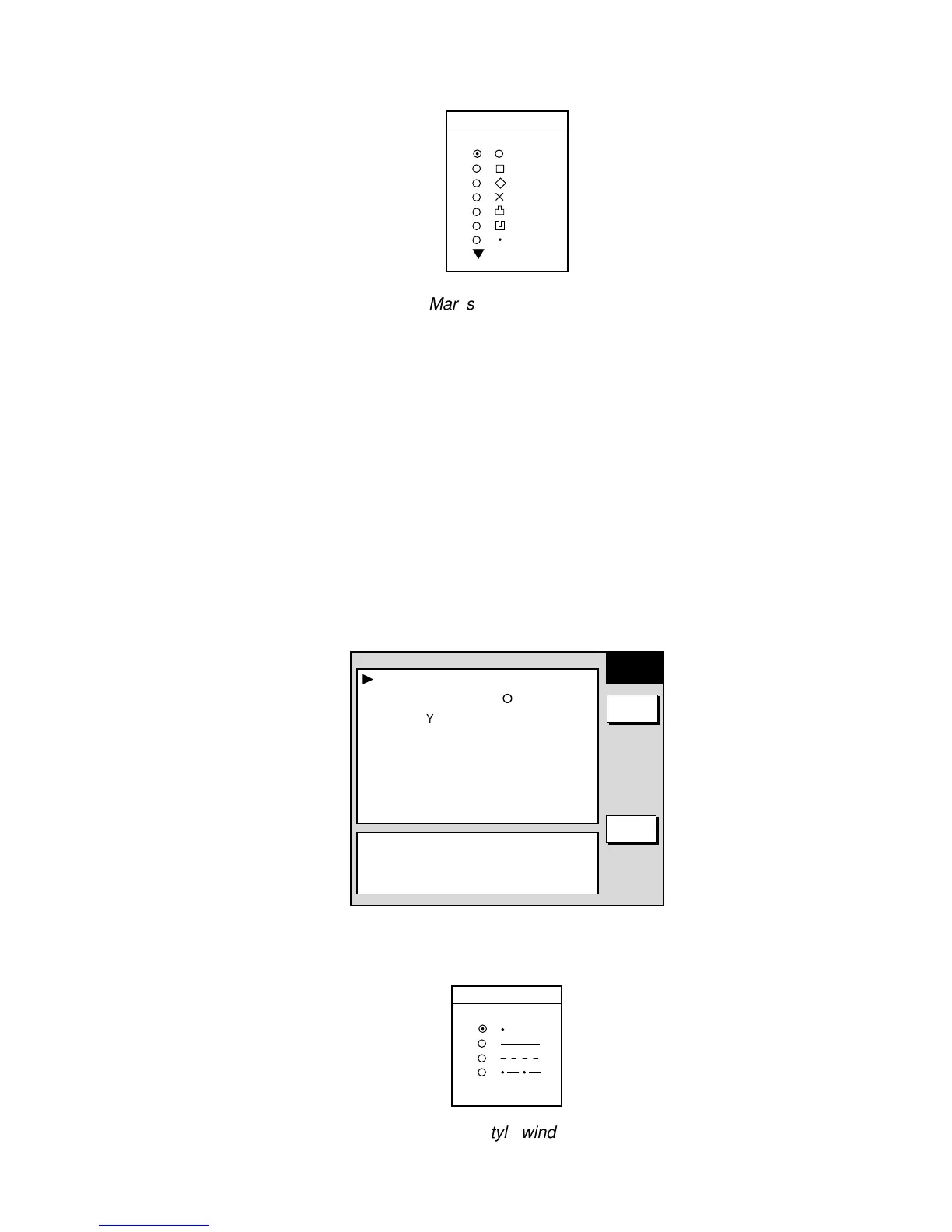

Marks shape window
7. Use the trackball to select mark shape desired, then press the ENTER soft
key.
8. Select MARKS SIZE, then press the EDIT soft key.
9. Use the trackball to select LARGE (default setting) or SMALL as appropriate.
10. Press the ENTER soft key.
11. Press the [MENU] key twice to close the menu.
3.7.3 Selecting line type
You may inscribe lines to denote good fishing spots, areas of special interest, etc.
You can even construct simple charts.
1. Press the [MENU] key followed by the CHART SETUP, TRACKS & MARKS
CONTROL and MARK SETUP soft keys to show the MARKS & LINES
menu.
MARKS &
LINES
EDIT
RETURN
MARKS/LINES COLOR YELLOW
MARKS SHAPE
¡
LINES STYLE .
MARKS SIZE LARGE
SHIP’S TRACK STATUS
TRACKING
TRACK: 1234/2000
MARK : 9/6000
Marks & lines menu
2. Select LINES STYLE, then press the EDIT soft key.
LINES STYLE
▲
¡
¡
¡
▼
¤
----
Lines style window

Furuno MARINE RADAR 1823C Specifications

General

Type	Marine Radar
Display Size	10.4 inches
Resolution	800 x 600 pixels
Power Output	4 kW
Antenna Type	Open Array
Rotation Speed	24 RPM
Frequency	9410 MHz (X-band)
Display	LCD
Power Supply	12/24 VDC
Range Scales	0.125, 0.25, 0.5, 12, 24, 48 nautical miles
