Furuno MARINE RADAR 1823C User Manual

2. RADAR OPERATION
2-12
2.10.2 Measuring range by cursor
Operate the trackball to place the cursor intersection on the inside edge of the
radar target. The range to the target, as well as the bearing, appears to the right
of “+” at the bottom of the display.
11.2 ˚R
11.70 nm
+
Cursor
Target
Range and bearing from
own ship to cursor
319. 9
° M
12/
H-UP
3nm
LP
ZOOM &
D. BOX
SIGNAL
PROC.
RADAR
DISPLY
TARGET
NAV
FUNC

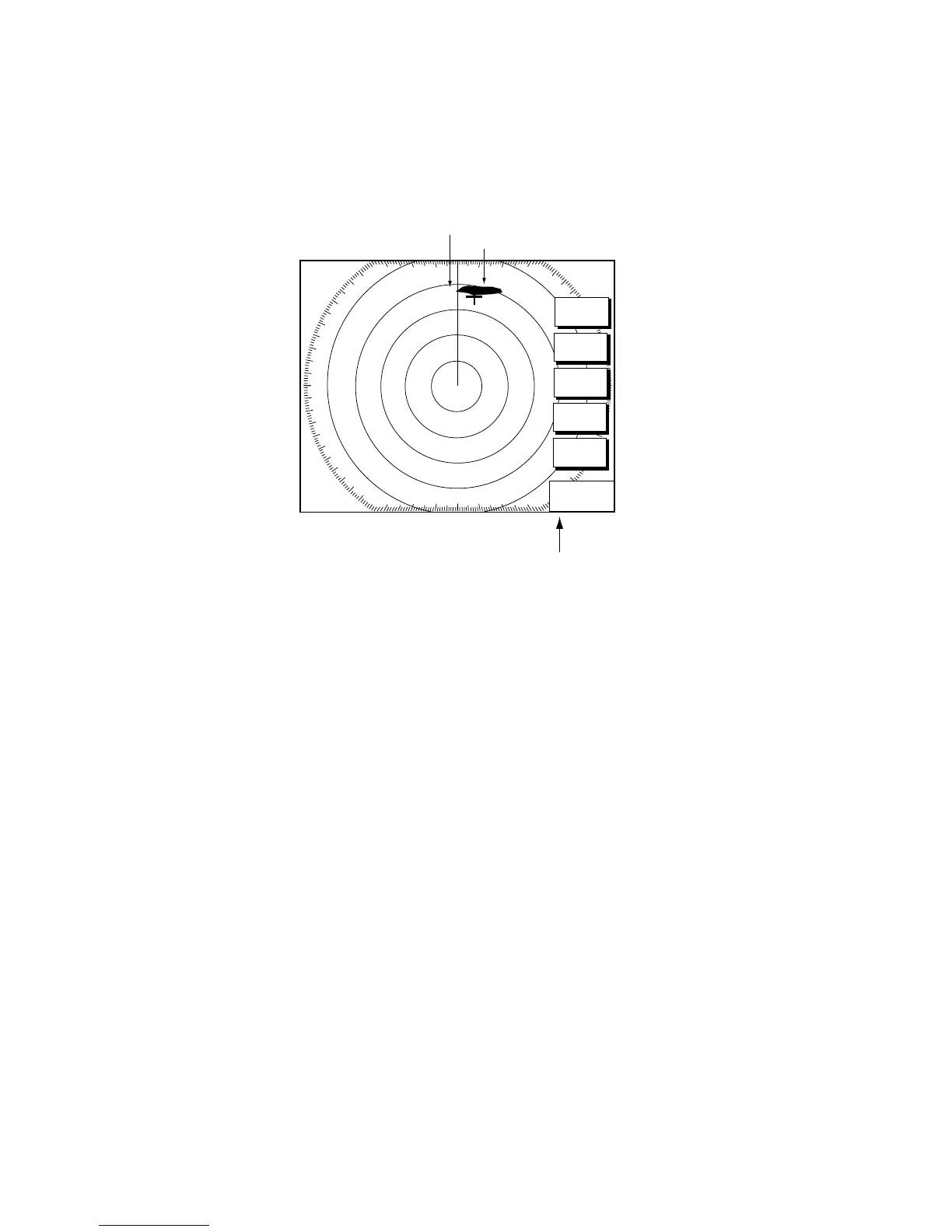

How to measure range to a target with the cursor

Furuno MARINE RADAR 1823C Specifications

General

Type	Marine Radar
Display Size	10.4 inches
Resolution	800 x 600 pixels
Power Output	4 kW
Antenna Type	Open Array
Rotation Speed	24 RPM
Frequency	9410 MHz (X-band)
Display	LCD
Power Supply	12/24 VDC
Range Scales	0.125, 0.25, 0.5, 12, 24, 48 nautical miles
