INSTALLATION
Note: Appropriate mounting is very important to ensure correct operation. Select a
location that allows both free/open airow around rear of chassis, whilst minimizing
exposure to moisture. Allow adequate room at the rear of the unit for the cable looms
(approx 2”) and underneath the unit (approx 2”) if using a SiriusXM tuner (USA Only).
If any modication to the vessel is required, such as drilling holes etc FUSION
recommends consultation with your boat dealer or manufacturer beforehand.

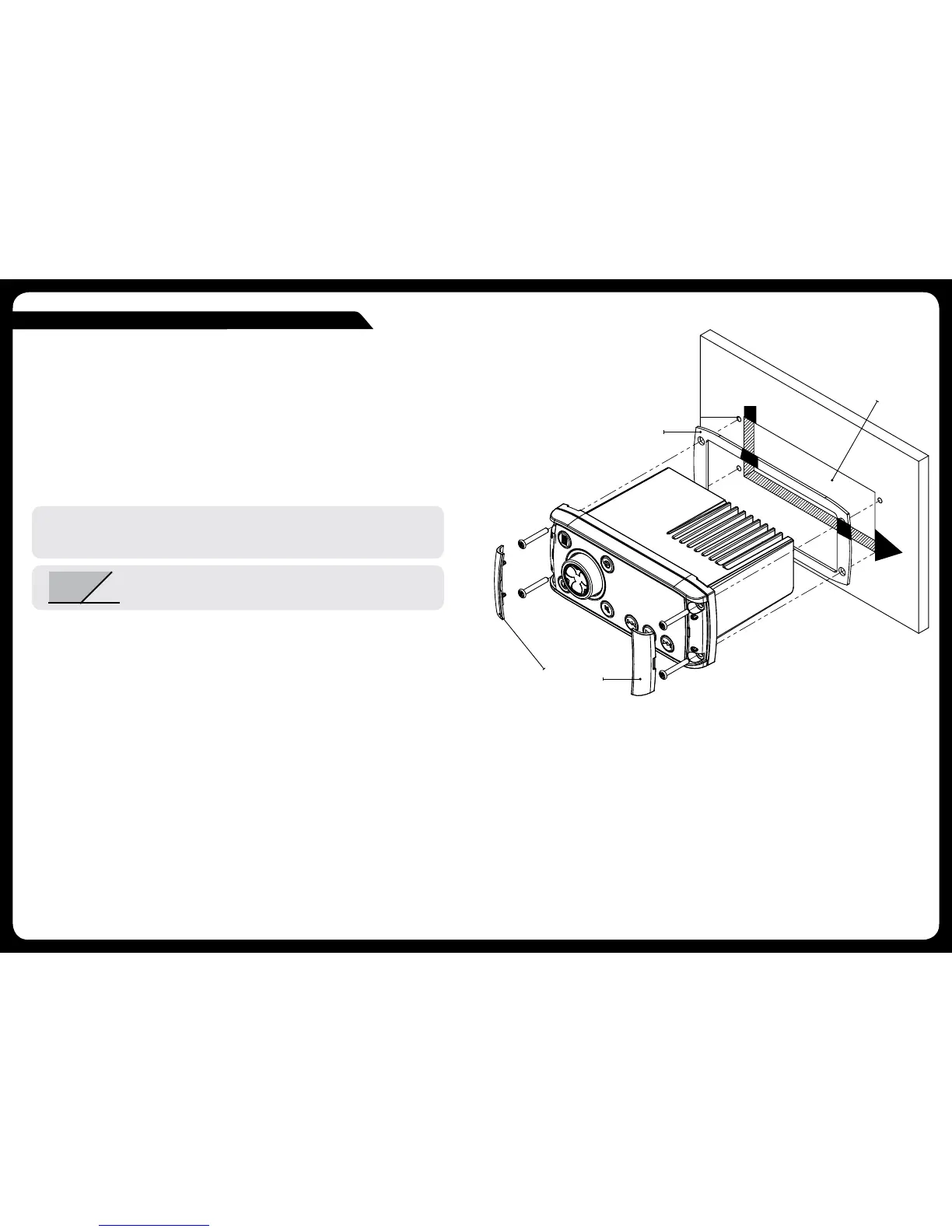

Create mounting hole for product and drill Screw Pilot Holes.
Refer to mounting template included with product or download
from www�FUSIONENTERTAINMENT�com
• Fit mounting gasket
• Insert the unit into the mounting hole
• Use the supplied 4 x self tapping screws, to afx the unit into position.
• Attach screw covers
Mounting Gasket
Screw Covers
Screw Pilot Hole
Mounting Hole
Note: The head unit must not be mounted on more than a 45˚
angle from the horizontal plain. Failure to follow mounting restric-
tions could void your warranty.
45˚
