Troubleshooting
The stereo does not respond to key presses
• Hold until the stereo turns off, and turn it on again to reset
the stereo.
• Disconnect power to the stereo for two minutes to reset the
stereo.
The stereo keeps locking up when connected to an
Apple device
• Press and hold the power button to reset the stereo.
• Reset the Apple device. Go to www.apple.com for more
information.
• Make sure you have the latest version of iTunes
®
and the
latest operating software on your Apple device.
The stereo is not finding my connected Apple device
• Make sure your Apple device supports Interface Accessory
Protocol 2 (iAP2). This stereo is not compatible with iAP1
devices.
• Make sure you have the latest version of iTunes and the
latest operating software on your Apple device.
• Make sure you have the latest version of the Fusion-Link
application on your Apple device.
• Reset the Apple device.
Go to www.apple.com for more information.
• Contact your Fusion dealer or send an email to Fusion from
www.fusionentertainment.com.
My Bluetooth audio is interrupted by short breaks
• Ensure the media player is not covered or obstructed.
Bluetooth technology performs best with line-of-sight
operation.
• Bring the media player within 10 m (33 ft.) of the stereo.
• Turn off the DISCOVERABLE setting after pairing a
Bluetooth device to the stereo.
The stereo does not display all song information from
my Bluetooth source
The availability of song information such as song title, artist
name, track duration, and album cover artwork depends on the
capability of the media player and music application.
Specifications
Weight 350 g (12.4 oz.)
Water rating IEC 60529 IPX6 and IPX7 (front of
stereo only, when properly installed)
1
IEC 60529 IPX2 (rear of stereo)
Operating temperature
range
From 0 to 50°C (from 32 to 122°F)
Storage temperature range From -20 to 70°C (from -4 to 158°F)
Input voltage From 10.8 to 16 Vdc
Current (max.) 15 A
Current (muted) Less than 400 mA
Current (off) Less than 100 mA
Fuse 15 A mini-blade type
NMEA 2000 LEN @ 9 Vdc 1 (50 mA)
Bluetooth wireless range Up to 10 m (30 ft.)
ANT wireless range Up to 3 m (10 ft.)
Wireless frequencies/
protocols
Bluetooth 2.4 GHz @ 12 dBm nominal
ANT 2.4 GHz @ 7 dBm nominal
Compass-safe distance 15 cm (5.9 in.)
1
When properly installed, the front of the stereo withstands incidental exposure to
water of up to 1 m for up to 30 min, and is protected against powerful jets of water.
For more information, go to www.garmin.com/waterrating.
On-board, Class D amplifier
Output music power per channel 4 x 50 W max. 4 Ohm
Total output peak power 200 W max.
Output power per channel 4 x 26 W RMS at 14.4 Vdc input,
4 Ohm, 10% THD
2
Line output level (max.) 5.5 V (peak to peak)
Aux input level (typical) 1 V RMS
Tuner frequencies
Tuner Europe and
Australasia
USA Japan
FM radio
frequency range
87.5 to 108 MHz 87.5 to
107.9 MHz
76 to 95 MHz
FM frequency
step
50 kHz 200 kHz 50 kHz
AM radio
frequency range
522 to 1620 kHz 530 to
1710 kHz
522 to
1620 kHz
AM frequency
step
9 kHz 10 kHz 9 kHz

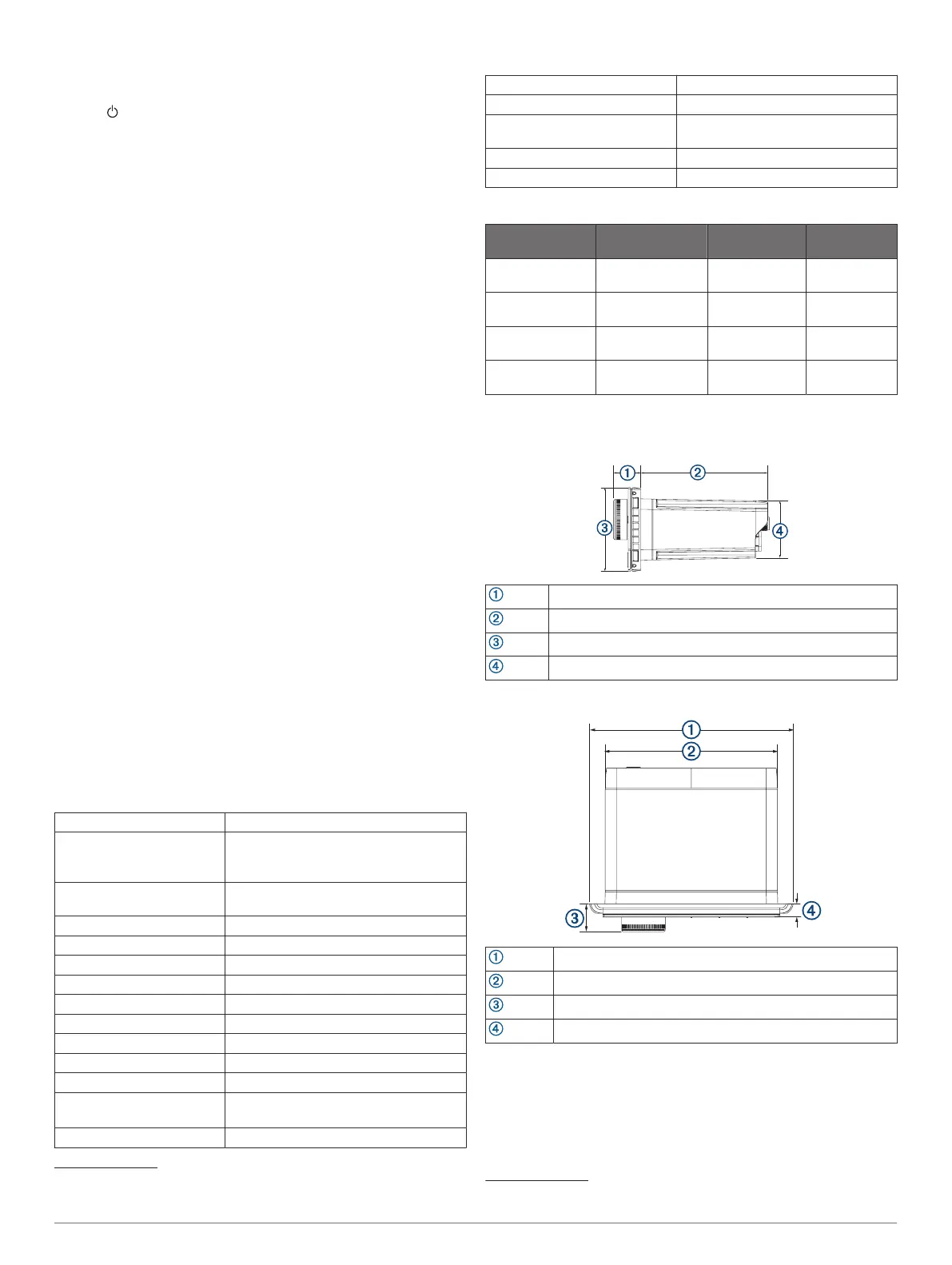

Stereo Dimension Drawings
Side Dimensions
22 mm (0.87 in.)
104.6 mm (4.12 in.)
68 mm (2.68 in.)
49.8 mm (1.96 in.)
Top Dimensions
157 mm (6.18 in.)
130 mm (5.10 in.)
22 mm (0.87 in.)
10 mm (0.39 in.)
2
The stereo may limit the output power to prevent the amplifier from overheating,
and to maintain the audio dynamics.
Appendix 11
