Fusion MS-UD650 Installation Instructions

Ä
Water-tight connections
Å
Remote on

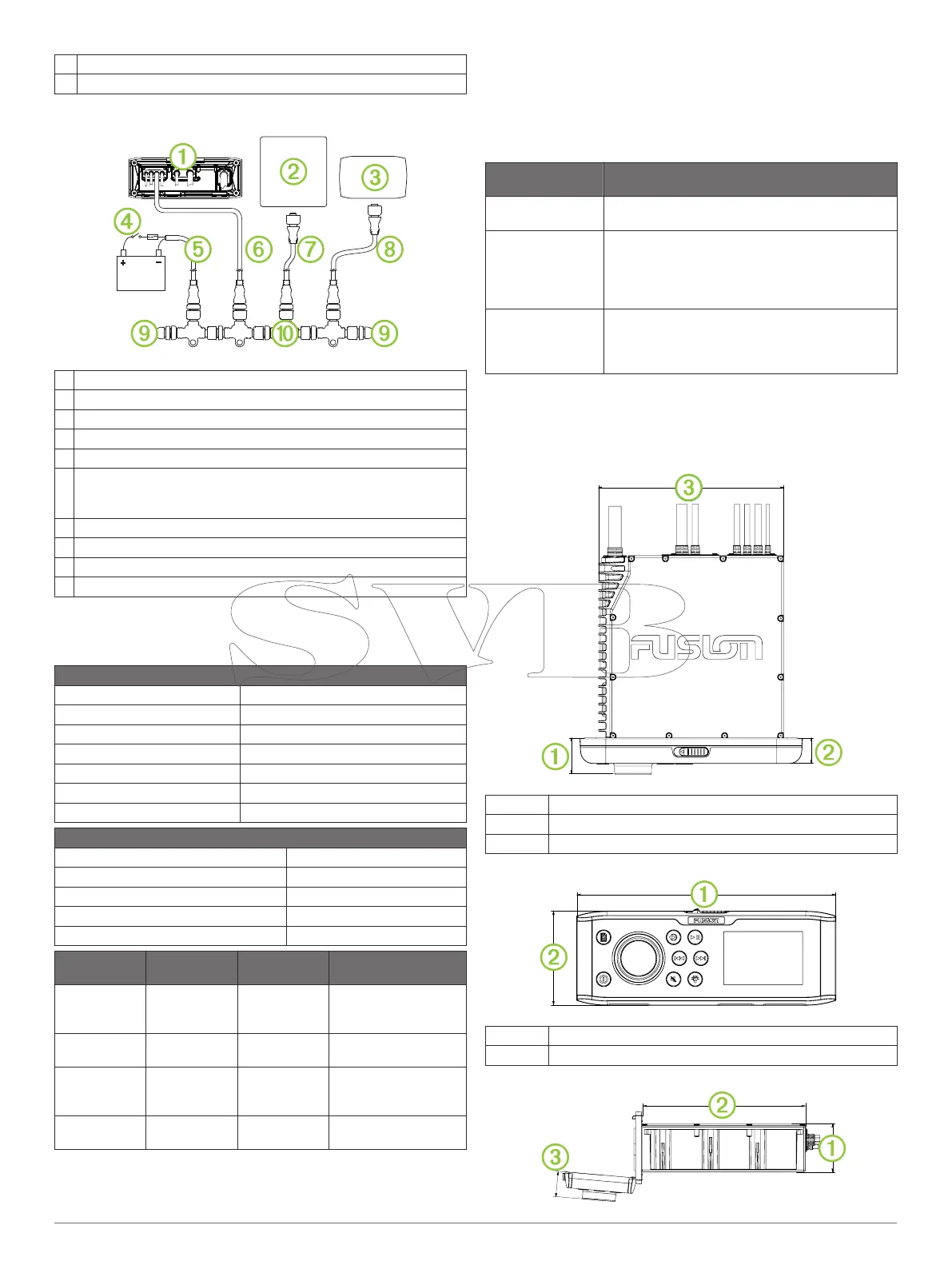

NMEA 2000 System Wiring Diagram
À
Stereo
Á
Supported chartplotter MFD
Â
Fusion Wired remote, such as the NRX200i
Ã
In-line switch
Ä
NMEA 2000 power cable
Å
NMEA 2000 cable from the stereo
This can be extended to a maximum length of 2 m (6 ft.) using a
NMEA 2000 cable.
Æ
NMEA 2000 drop cable from the MFD
Ç
NMEA 2000 drop cable from the wired remote
È
NMEA 2000 terminator or backbone cable
É
NMEA 2000 T-connector
Stereo Information
Specifications
General
Weight 0.88 kg (1.96 lb.)
Water resistance IPX5
Operating temperature range From -5 to 50°C (from 23 to 122°F)
Storage temperature range From -20 to 70°C (from -4 to 158°F)
Input voltage From 10.8 to 16 Vdc
NMEA 2000 LEN 1 (50 mA)
Compass-safe distance 15 cm (5.9 in.)
On-board, Class D Amplifier
Output music power per channel 70 W max. x 4 at 2 Ohms
Total output music power 280 W max.
Current (standby with ignition off) < 3 mA
Current (max) 15 A
Current (muted) < 900 mA
Tuner Europe and
Australasia
USA Japan
FM radio
frequency
range
87.5–108 MHz 87.5–
107.9 MHz
70–90 MHz
FM Frequency
step
50 kHz 200 kHz 50 kHz
AM radio
frequency
range
522–
1620 MHz
530–
1710 MHz
522–1620 MHz
AM Frequency
step
9 kHz 10 kHz 9 kHz
Media Player Compatibility
If you have a UD model, you can use the included adapter
cables to connect popular media players to the internal docking
station. If you have an AV model, you can use the USB cables
that came with your media player to connect the player to the
stereo.
Only media players with ports on the bottom, not on the sides, fit
in the docking station. Media players larger than 144 × 71 ×
13 mm (5.67 × 2.80 × 0.52 in.) do not fit in the docking station.
Cable Connector
in Dock
Devices
Micro-USB
connector
Supported media players. See
www.fusionentertainment.com.
Apple 30-pin
connector
Apple iPhone
®
4s, iPhone 4, iPhone 3G, and
iPhone 3GS.
iPod touch
®
(2nd, 3rd, and 4th generation), iPod
classic
®
, and iPod nano
®
(4th, 5th, and 6th
generation).
Apple Lightning
connector
Apple iPhone 6, iPhone 5s, iPhone 5c, and iPhone
5.
iPod touch (5th generation) and iPod nano (7th
generation).
You also can connect a FAT32- or NTFS-formatted USB flash
drive directly to the USB port.
Stereo Dimension Drawings
Top Dimensions
179.94
À
35 mm (1.367 in.)
Á
25 mm (0.97 in.)
Â
180 mm (7.08 in.)
Front Dimensions
À
216 mm (8.50 in.)
Á
78 mm (3.08 in.)
Side Dimensions
4
