FUTABA 3PL-2.4G - End Point, ABS, and Mixing Maps

23

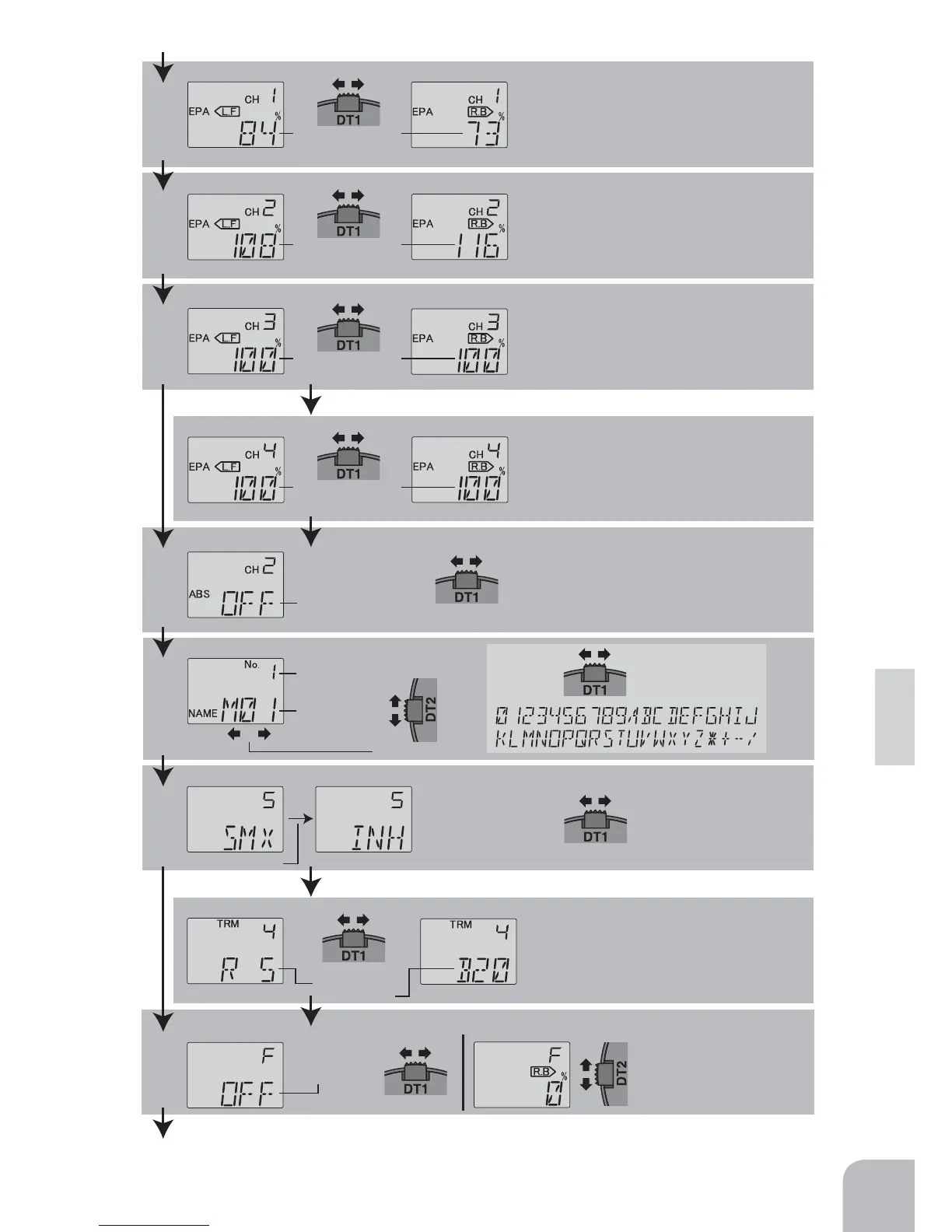

Function Map
Steering EPA
Adjust the travel of the servo while operating
the steering wheel each way.
Range: 0 - 120%
(Left side) (Right side)
Throttle EPA
Adjust the travel of the servo while
operating the throttle trigger each way.
Range: 0 - 120%
(Forward side)
(Brake side)
Adjust the travel of the servo while
operating the channel-3 switch each way.
Channel-3 EPA
Range: 0 - 120%
(Left side) (Right side)
Channel-4 EPA
Adjust the travel of the servo while
operating the steering wheel or throttle
trigger each way.
INH (Special Mix) ACT
Range: 0 - 120%
(Left side: 4WD)
(Right side: 4WD, Brake side: BRK)
ABS Cycle Speed
OFF: Inhibited
FST: Active (fast)
MID: Active (middle)
SLW: Active (slow)
ABS function
(Selection key)
Model Name
(Selection key)
Model number
(1 - 0)
Model name
(Selection key)
INH: Inhibited
4WS: 4WS mixing
BRK: Brake mixing
(2 seconds)
Special Mixing Selection
(Selection key)
INH (Special Mix) ACT
Channel-4 Trim
Range:
L25 - 0 - R25
B25 - 0 - F25
(4WS mixing) (Brake mixing)
(Selection key)
Throttle F/S Function F/S position setting
Push the DT2 lever up or down for
about one second while operating the
throttle trigger to the desired position.
Setting example: Throttle idle or brake
position
OFF: Inhibited
***%: F/S position
To Initial Screen
