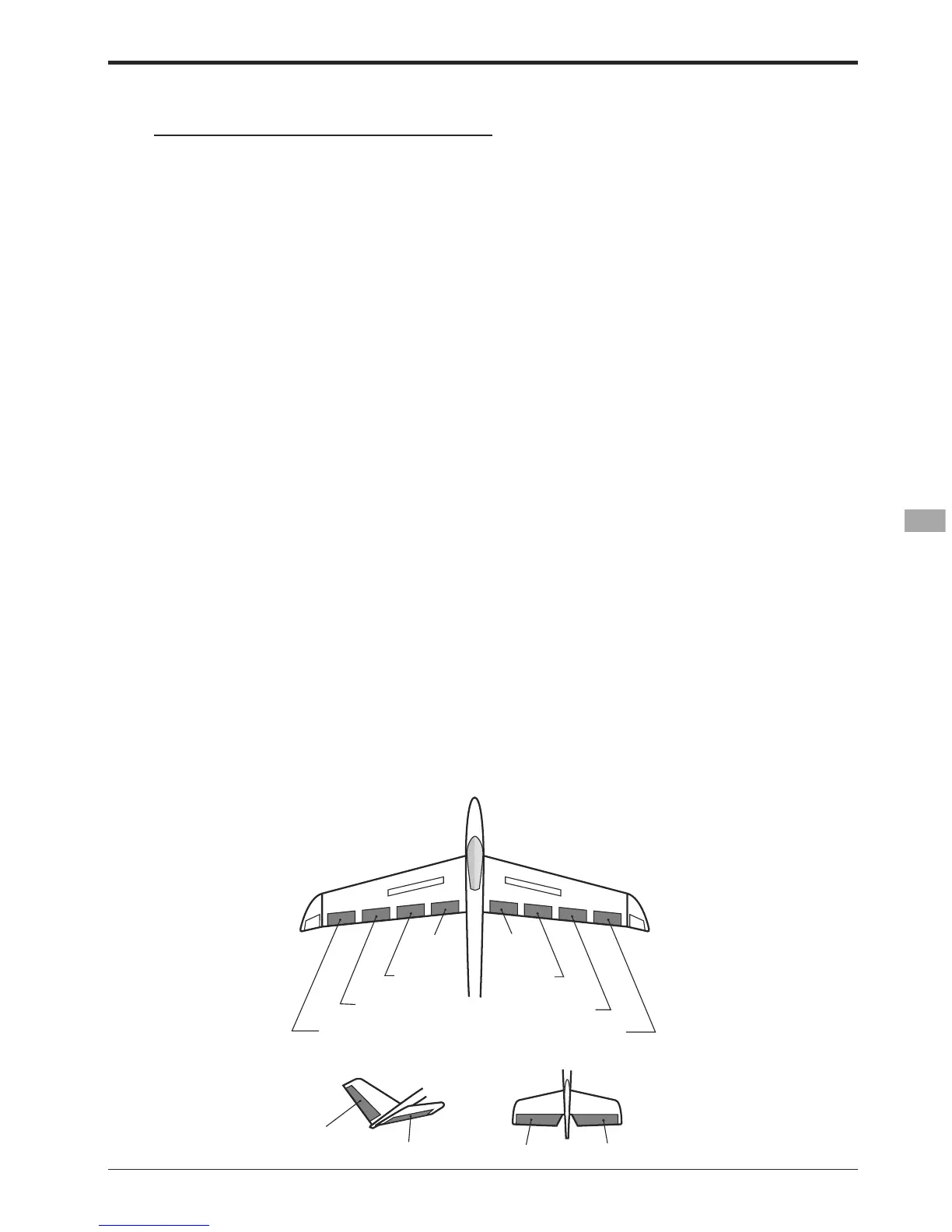

0RGHO0HQX$LUSODQH*OLGHU)XQFWLRQV!
AIL 3
(Chip Aileron)
AIL 4
(Chip Aileron)
AIL1
(Main Aileron)
AIL 2
(Main Aileron)
FLP 2
(Camber Flap)
FLP 1
(Camber Flap)
ELEVATOR
ELEVATOR 2
V-TAIL
ELEVATOR
ELEVATOR 2
AILVATOR
FLP 3
(Brake Flap)
FLP 4
(Brake Flap)
6HWWLQJPHWKRG
Ɣ$FWLYDWHWKHIXQFWLRQ
Move the cursor to the [ACT] item and touch
the RTN button to switch to the data input
mode. Select the ACT mode by scrolling the
touch sensor.
*The display blinks.
Touch the RTN button to activate the
function and return to the cursor mode. (ON
is displayed.)
When setting a switch, move the cursor to
the switch item and touch the RTN button
to access the selection screen. Select the
switch and set its ON direction. (Always ON
at "--" setting)
)RUDGHVFULSWLRQRIWKHVZLWFKVHOHFWLRQPHWKRGVHHWKH
description at the back of this manual.
Ɣ7ULPRIIVHWUDWHDGMXVWPHQW
Move the cursor to the aileron, flap or
elevator rate item and touch the RTN button
to switch to the data input mode. Adjust the
rate independently by scrolling the touch
sensor.
 ,QLWLDOYDOXH
 $GMXVWPHQWUDQJHa
:KHQWKH571EXWWRQLVWRXFKHGIRURQHVHFRQGWKHUDWHLV
UHVHWWRWKHLQLWLDOYDOXH
Touch the RTN button to end the adjustment
and return to the cursor mode.
Ɣ&RQGLWLRQGHOD\VHWWLQJ
Move the cursor to the [COND.DELAY] item
and touch the RTN button to switch to the
data input mode. Adjust the condition delay
by scrolling the touch sensor.
Initial value: 0
Adjustment range: 0~27
:KHQWKH571EXWWRQLVWRXFKHGIRURQHVHFRQGWKHVHUYR
RSHUDWLRQSRVLWLRQLVUHVHWWRWKHLQLWLDOYDOXH
Touch the RTN button to end the adjustment
and return to the cursor mode.
When setting a cut switch, move the cursor
to the [CUT-SW] item and touch the RTN
button to access the selection screen. Select
the switch and set its ON direction. (Always
ON at "--" setting)
)RUDGHVFULSWLRQRIWKHVZLWFKVHOHFWLRQPHWKRGVHHWKH
description at the back of this manual.
Ɣ6HUYRVSHHGVHWWLQJ
Move the cursor to the aileron, flap or
elevator speed item and touch the RTN
button to switch to the data input mode.
Adjust the rate by scrolling the touch sensor.
Initial value: 0
Adjustment range: 0~27 (maximum delay)
:KHQWKH571EXWWRQLVWRXFKHGIRURQHVHFRQGWKHUDWHLV
UHVHWWRWKHLQLWLDOYDOXH
Touch the RTN button to activate the
function and return to the cursor mode.
Ɣ$XWRVZLWFKVHOHFWLRQ
When selecting an auto switch, move the
cursor to the [AUTO-SW] item and touch the
RTN button to access the selection screen.
Select the switch and set its ON direction.
(Always ON at "--" setting)
)RUDGHVFULSWLRQRIWKHVZLWFKVHOHFWLRQPHWKRGVHHWKH
description at the back of this manual.
