ASSEMBLY & ADJUSTMENT
ASSEMBLY & ADJUSTMENT

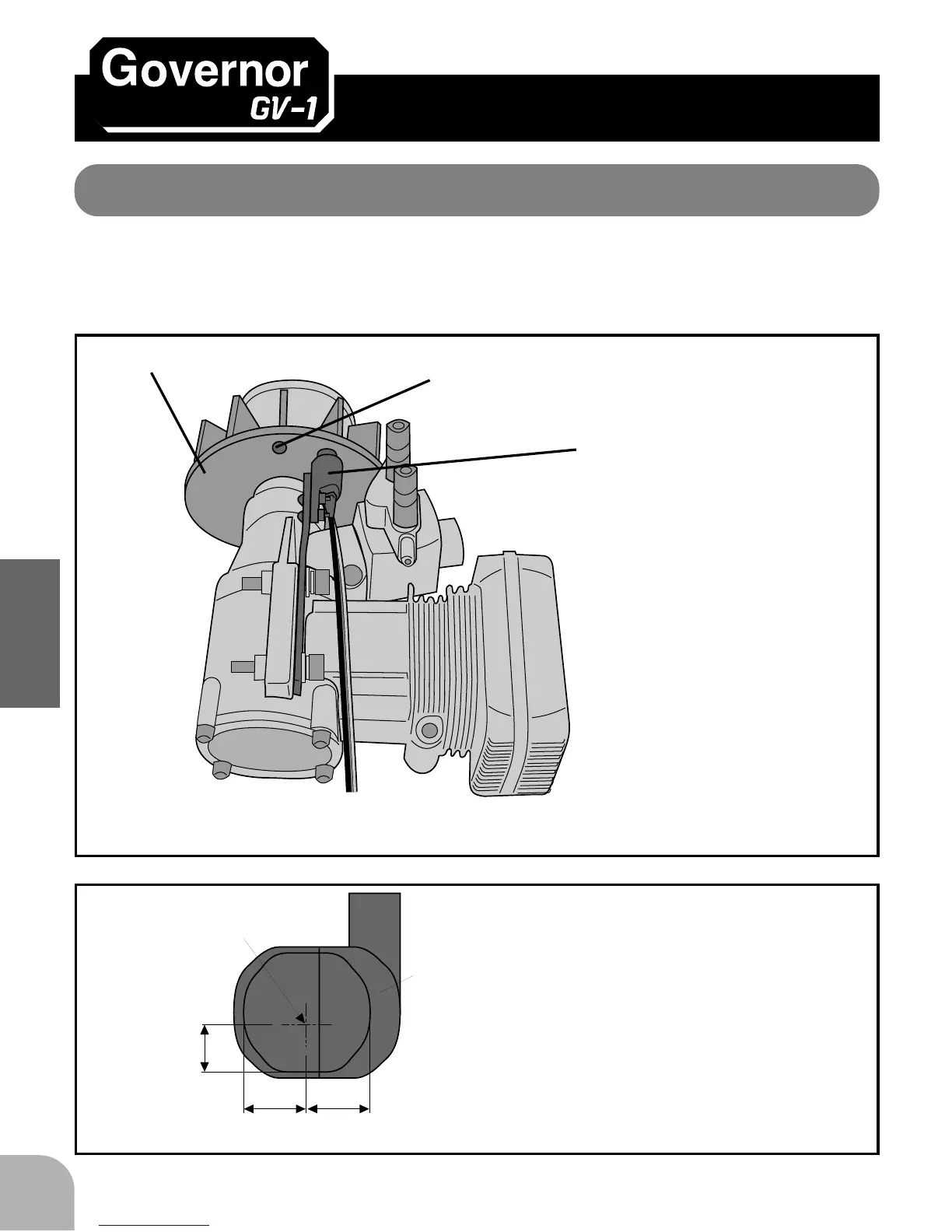

Mounting the magnet and sensor
Modify the cooling fan and install the accessory magnet and attach the mag-
netic sensor to the engine at the position shown below.
Magnet and sensor mounting
Cooling fan
Magnet (Embedded in cooling fan.)
Sensor (Attached to engine
flange through a stay.)
When installing the sensor
magnet to the muffler side,
also refer to the needle side
mounting.
Sensor center position
Offset the sensor
center position.
Sensor case
Align the sensor center position and the
center of the magnet shown in the figure
at the left.
2.2
mm
3.7mm 3.7mm
