ADJUSTMENTS AND FLIGHT TECHNIQUES
MIXING
• Mixing allows two or more channels to be controlled by a single transmitter control stick or lever. This set
features Programmable Mixing with four independent mixing circuits, along with special built-in mixing
circuits.
• NOTE: Only PROG-MIX Programable Mixing can be used in the BASIC Parameter mode. (See PARA-
METER, page 46).
•There are five types of mixing (including Prog. Mixing).
1: PROG MIX
Programmable Mixing
4: SWASH-MODE
Swashplate Mixing
2: PITCH-MIX
Pitch Mixing
5: THROTTLE-MIX
Throttle Mixing
3: RUDDER-MIX
Rudder Mixing

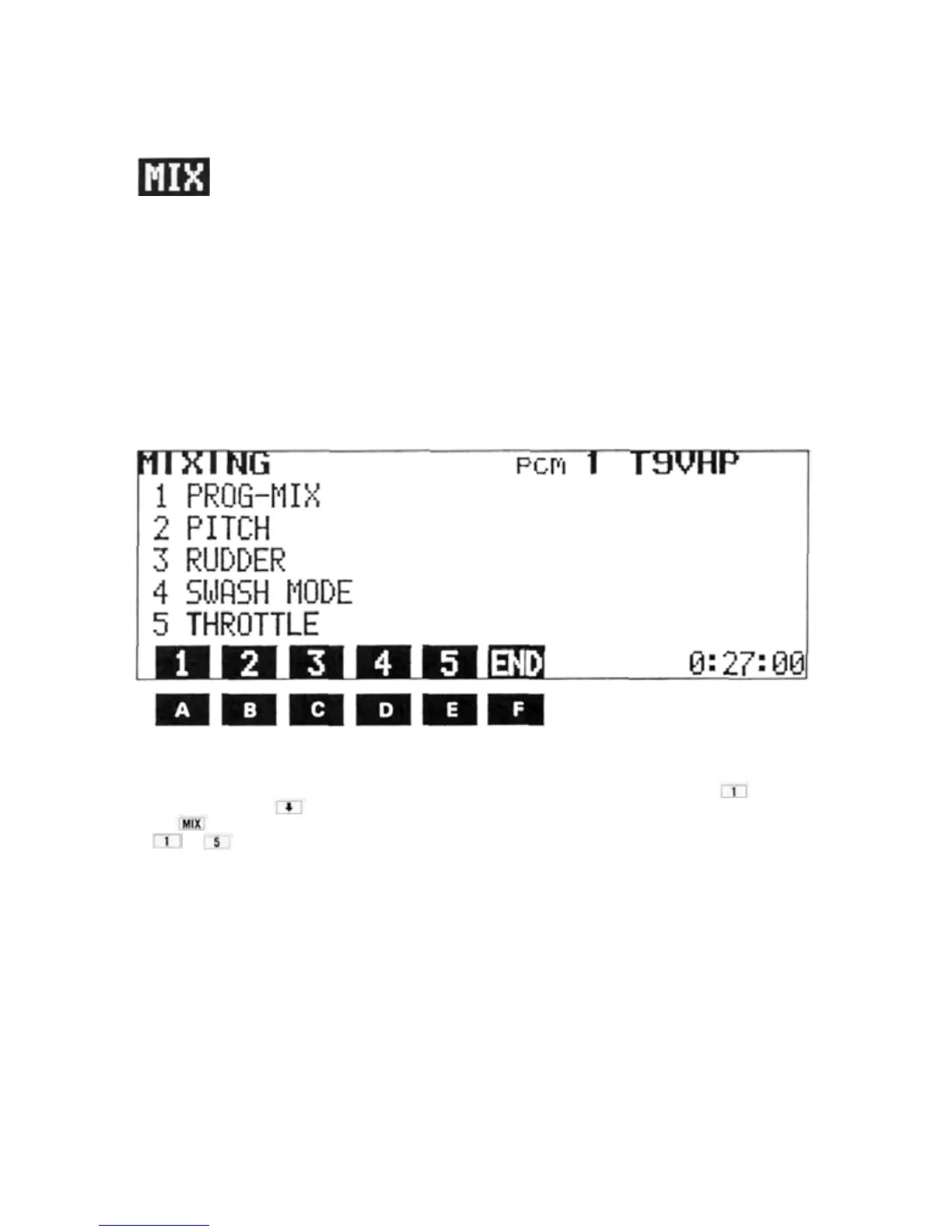

1) Select the EDIT screen and move the cursor
to Line 2 with the cursor key, then press
the program key.
3) To use 1:PROG-MIX, press the program
key. The PROGRAMABLE
MIX
screen
will
be displayed.
2) to can be selected with the program to
keys.
To Next Page
