Programmable Mixing
Four separate Programmable Mixing circuits allow almost infinite mixing combinations. The
features of this program provide the modeler with unlimited versatility in trimming and
controlling complex, high-performance models.
• Mixing of any two channels is possible.
• Four completely independent mixing
circuits
are available.
• Mixing amounts can be adjusted independently
in either direction from neutral or offset point.
•The
PROG-MIX
ON/OFF
Switch
can
be
selected.
•The point at which the mixing direction re-
verses is fully-adjustable.
•PROG-MIX circuits can be mixed with or
"slaved" to built-in mixing functions.
•PROG-MIX circuits can be mixed with each
other.
•Trim
corrections
on the "Master"
channel
can
be added to the slave channel or not, as de-
sired.
• Bi-directional mixing can be accomplished
using two mixing circuits (Ex: Flapperons)
•Adverse coupling of control inputs in fixed-
wing aircraft can be eliminated. (Ex: Tendency
to roll when rudder is applied in knife-edge
flight.)
Slave Channel
Operation (Mixing) Amount
Master Channel

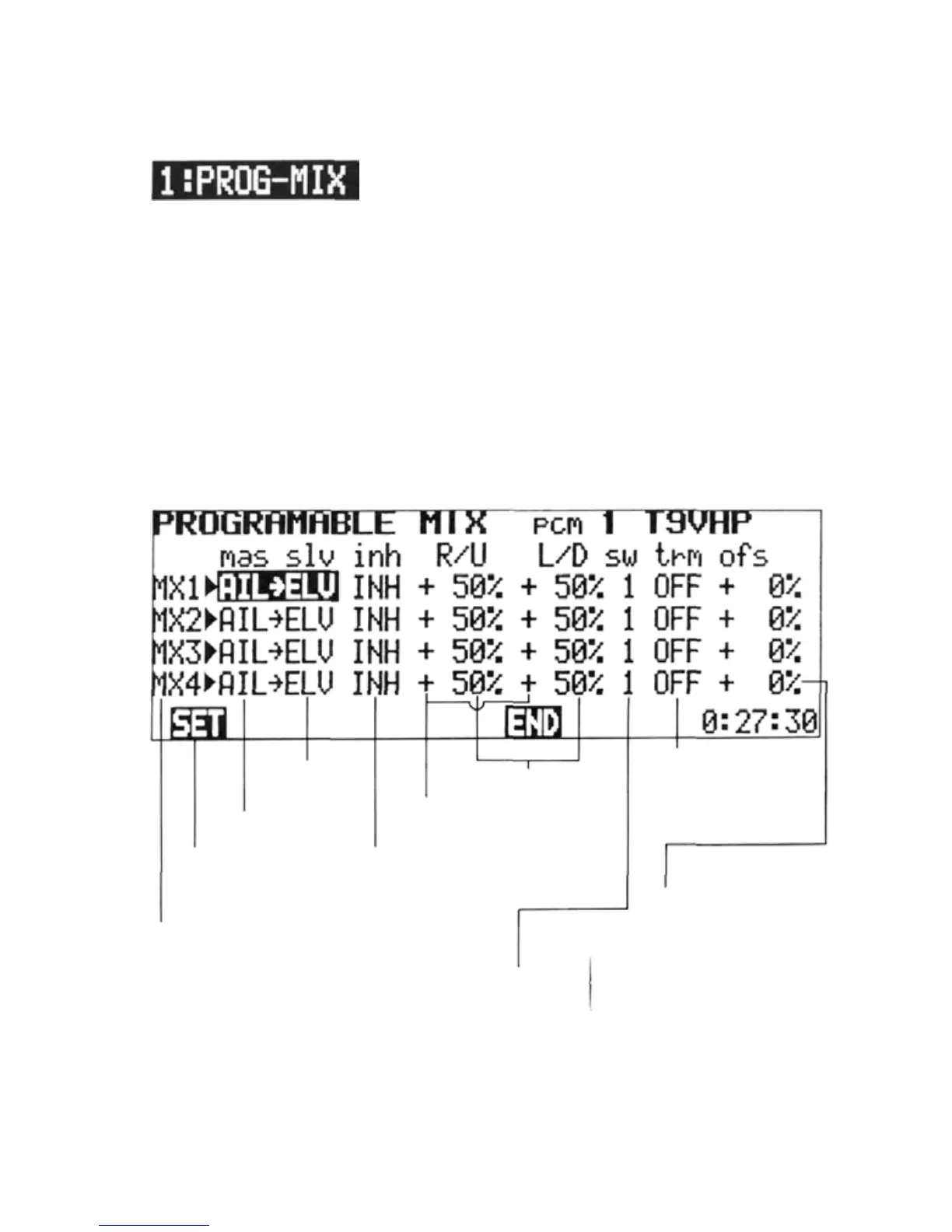

When the SET program
key is pressed, the
CHANNEL SETTING
screen is displayed.
Mixing Circuit Number
+ and - indicate the
direction of mixing
Circuit is usable when set
to
ON
When ON, the trim inputs to the
"Master" channel are also mixed
to the "Slave" channel. When
OFF,trim on the "Master"
channel affects the "Master"
channel only.
Switch Mode (ON/OFF
Switch Selection)
Indicates the control stick
position that the mixing
— reference point (R/L or
U/D Direction Change
Point) is offset to.
1. Always ON
2. ELEV.D/R Switch
3. RUD.D/R CH9 Switch
4. IDLE UP 1 and 2 (Both
switches must be ON)
5. GEAR (CH5)
To Next Page
