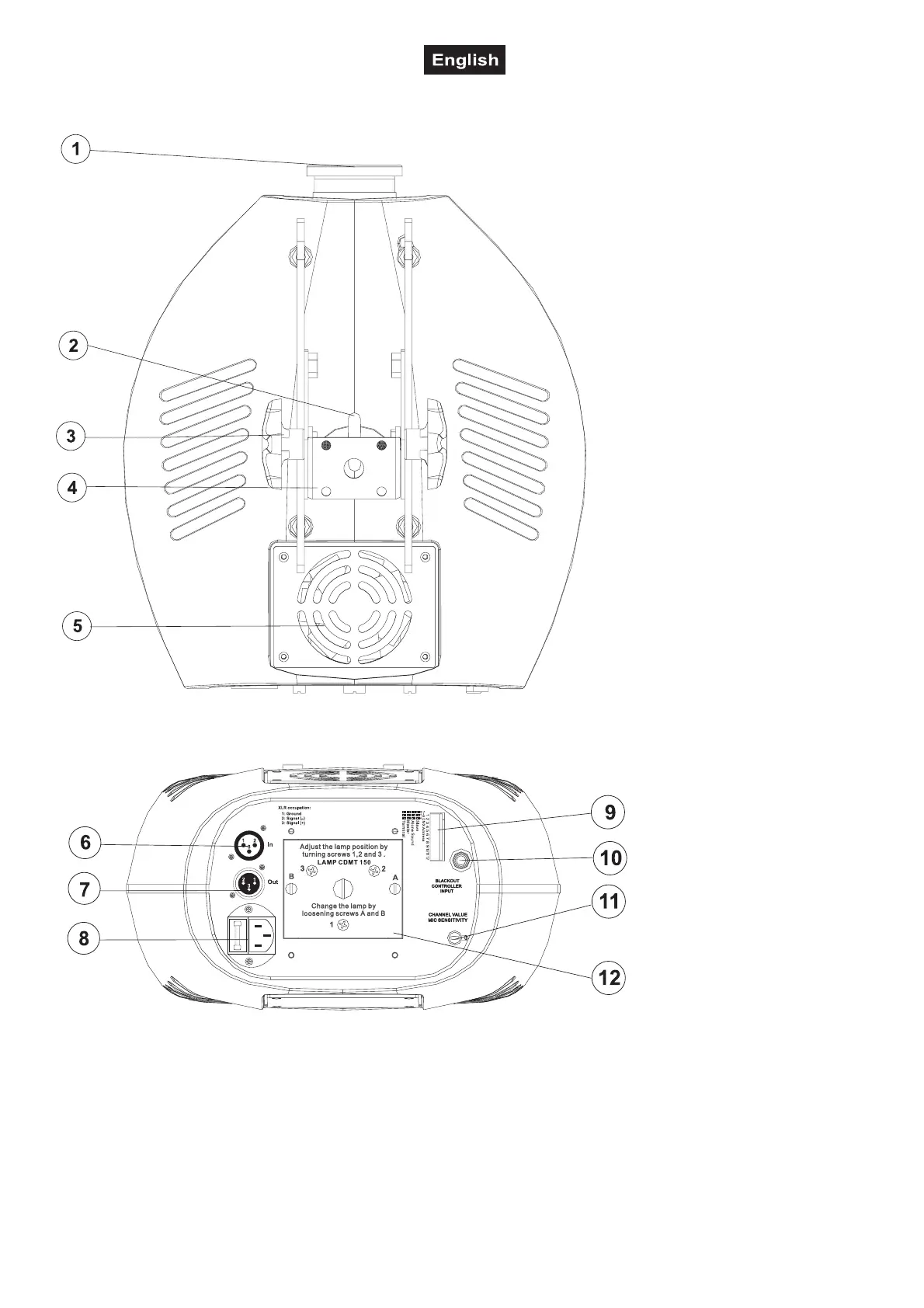

Overview
(1) Objective-lens/Focus
(2) Attachment eyelet
(3) Fixation screw
(4) Mounting bracket
(5) Ventilator
(6) DMX-In socket
(7) DMX-Out socket
(8) Power supply/
Fuseholder
(9) DIP-switches
(10) Blackout socket
(11) Mic Sensitivity-/
Channel Value-selector
(12) Lamp system
