8M093X01 R1.0 18
NOTE: There are holes to accommodate up to 8 mounting points, with only 4 required
(See Figure 10: DVR-LX Mounting Screws-Stacked)
Step 2: Repeat Step 1 for in-band filters (if applicable) and duplexer (for flat mount
configuration).
Step 3: Connect all cables according to appropriate configuration.

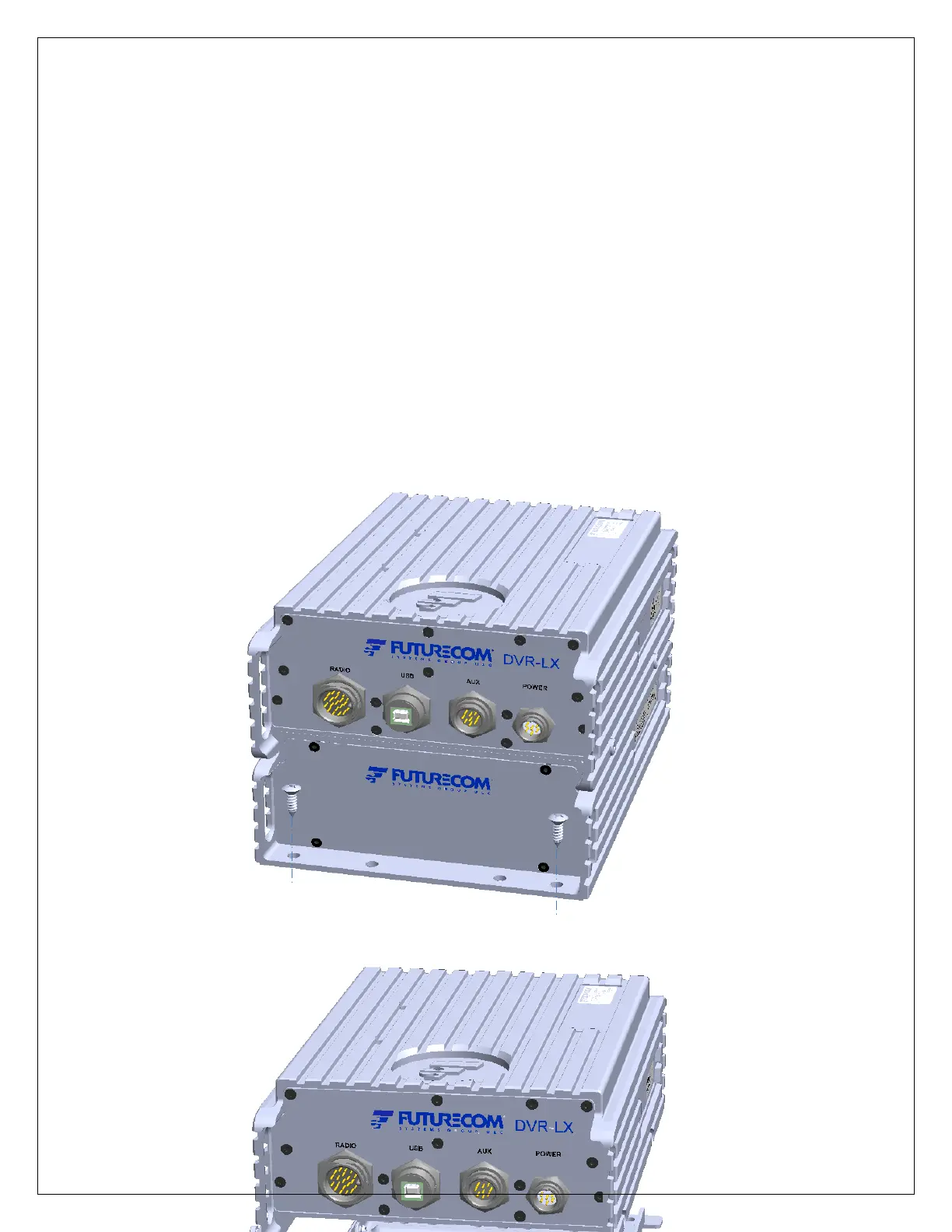

Figure 10: DVR-LX Mounting Screws-Stacked
