4 Ports
Introduction
This chapter describes the interface connectors and port pin-outs for the printer. For complete
electrical specifications on these ports, refer to Appendix A in the Developers Manual
(MNL-000029) for the power connector.
Note: While PSA-66-ST2 refers to all models of the printer, the content of this manual is
primarily for the Netplex/USB interface of the GEN2 Universal printer (PSA-66-ST2NU). For
additional information on the Netplex and USB interfaces, please contact IGT.
Front Bezel Port

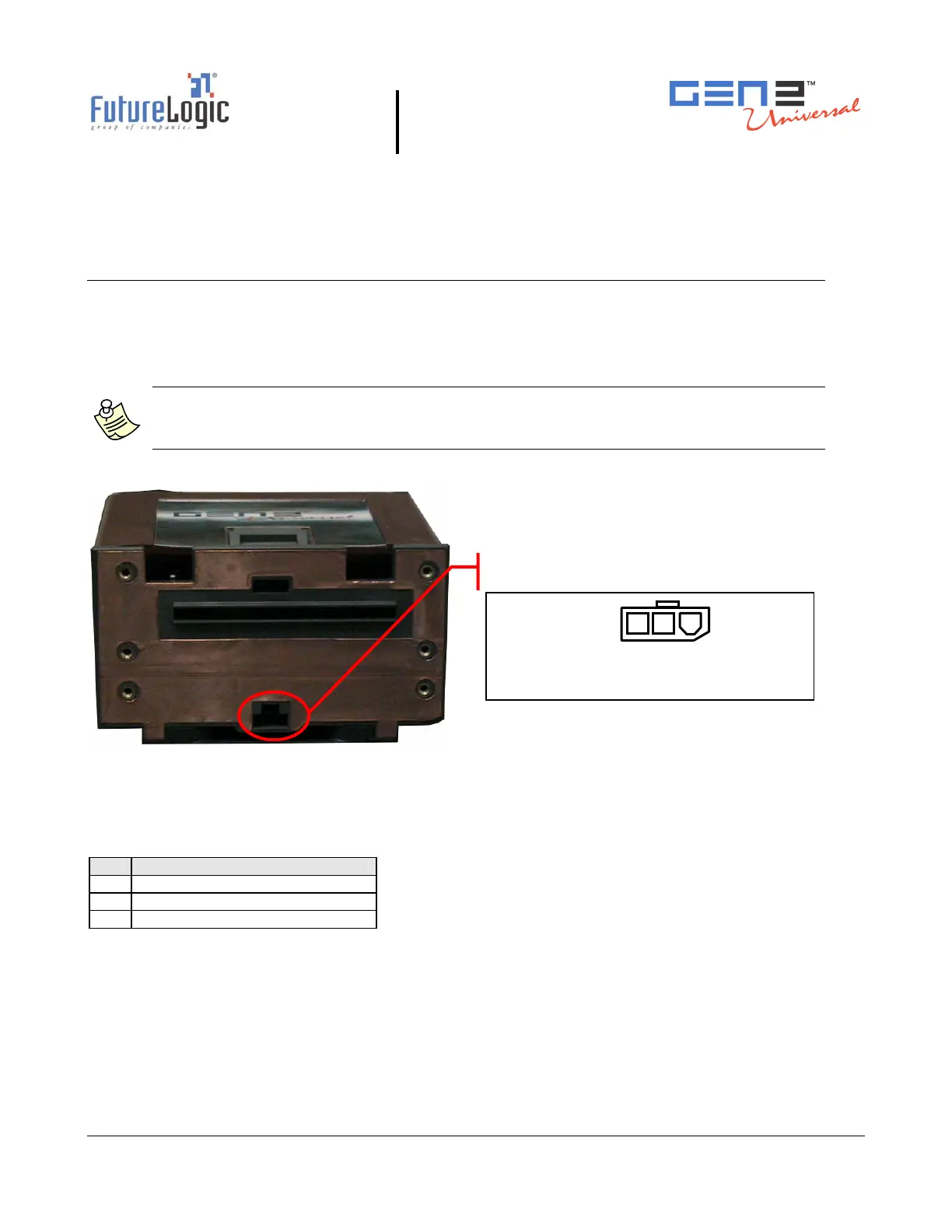

Figure 4-1 Front Bezel LED Control Port
Table 4-1 lists information on the LED bezel port on the printer. This is an open drain
modulated high side drive 25VDC port capable of driving up to a maximum 1.5A.
Table 4-1 Front Bezel LED Control Port Pins
Pin Function
1 Switched 25VDC, 100mA Min
2 BGND
3 Frame (Chassis) Ground
Connector: Molex Micro-Fit 43640-0301
Mate: Molex Micro-Fit 43645-0300
Bezel LED Control Port
1
2
