PSA-66-ST2NU (GEN2 Universal Printer)
USB/Netplex Interface Cable

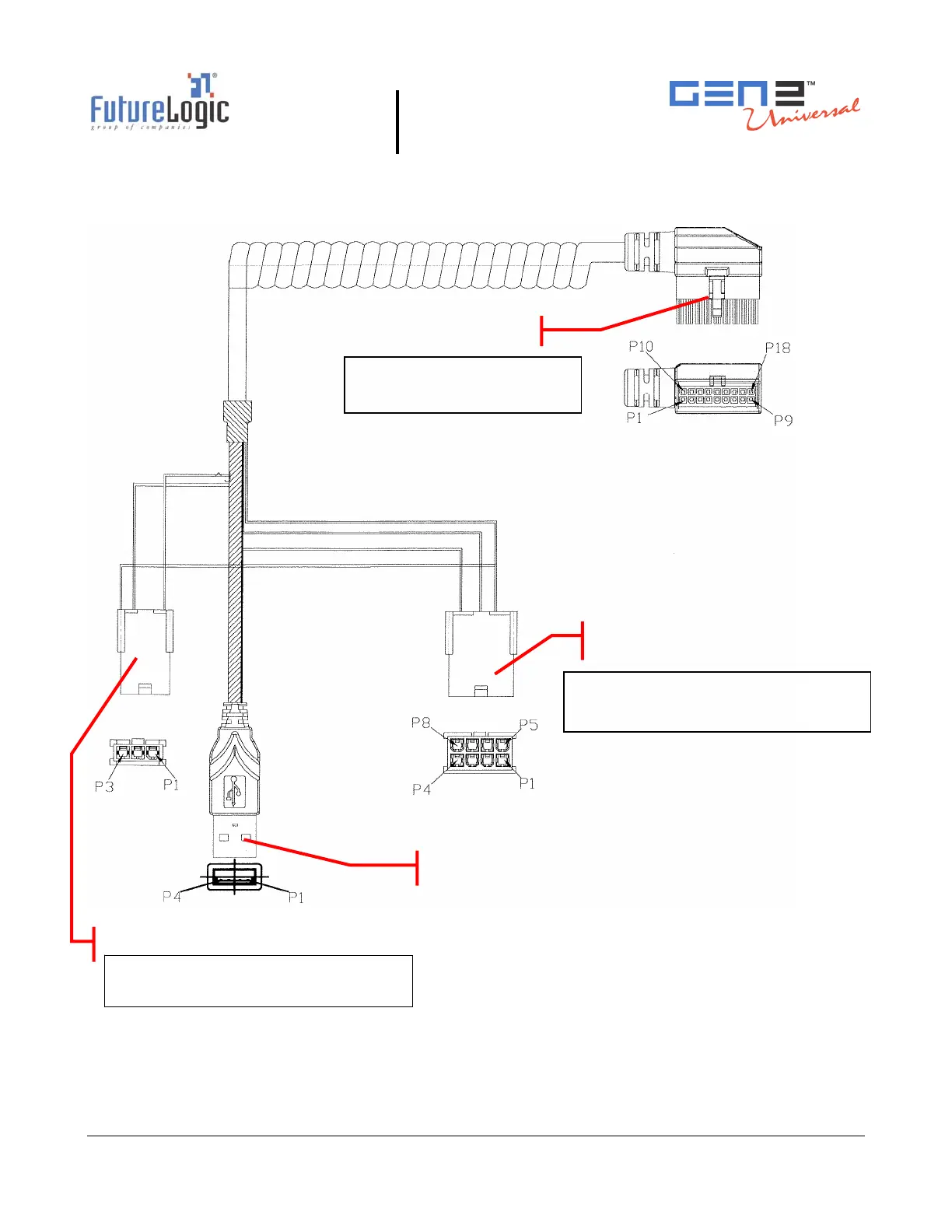

Figure 4-2 USB/Netplex Interface Cable
Connector: Molex 43025-1800
Mate: Molex 43045-1812
Base Port
Connector: Molex Mini-Fit Jr. 39-01-3089
Mate: Molex Mini-Fit Jr. 39-01-2085
Netplex Port
Connector: Molex Mini-Fit Jr. 39-01-4037
Mate: Molex Mini-Fit Jr. 39-01-4031
Bezel LED Control Port
USB Port (Series A)
USB/Netplex Cable P/N 150-00109-100
