Original User Manual FUXTEC FX-PS152 / FX-PS162
16

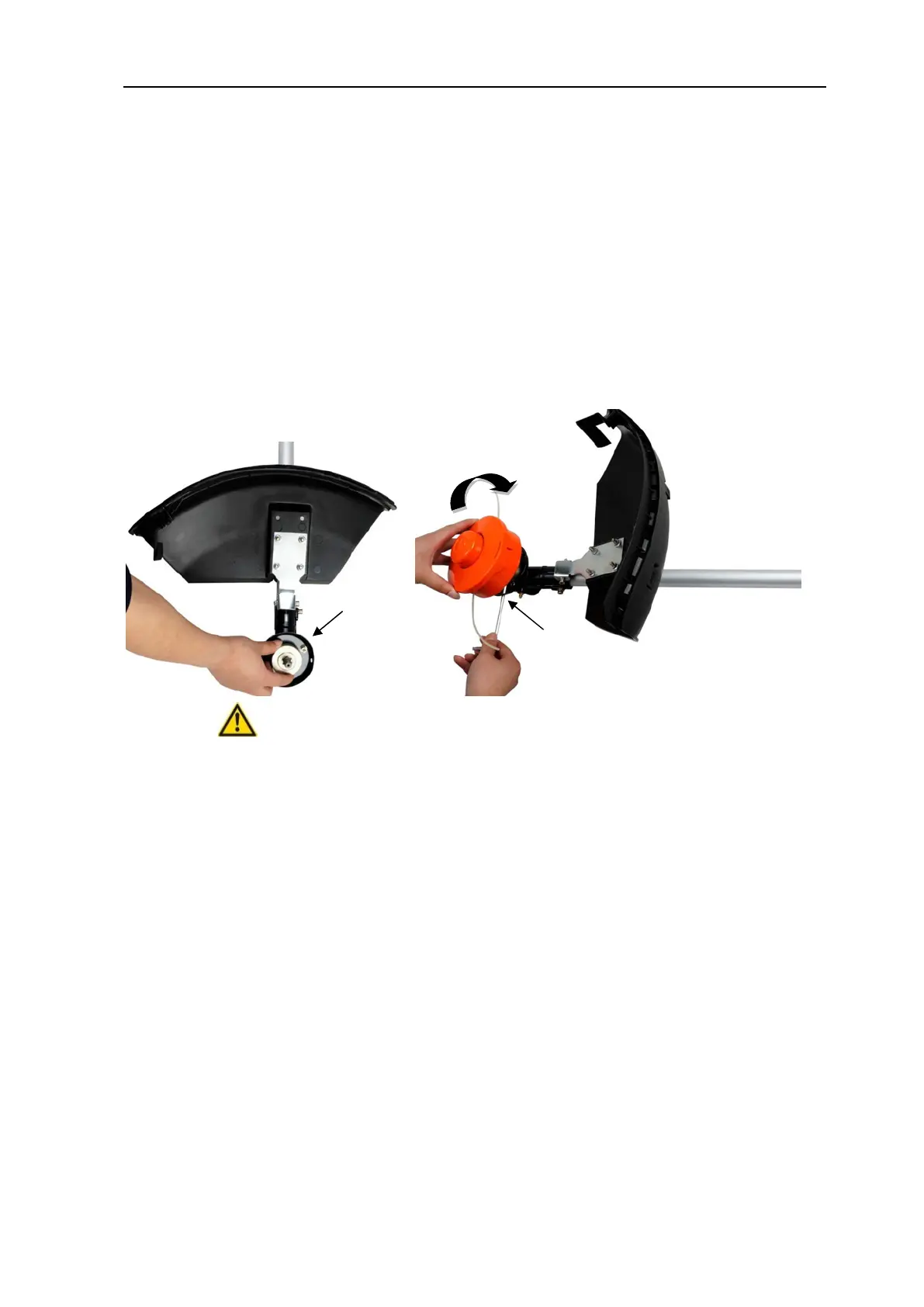

Installation of the lawn trimmer (thread spool)
Step one:
Insert the key (1) into the hole in the gearhead so that the gear shaft is locked. Unscrew
and remove the nut. Since it is a safety nut, please make sure that there is a left-hand
thread here.
Step 2:
mount the lower spacer (here point 2, the same washer as above when mounting the knife
2) and install the thread spool on the gear shaft. The remaining accessories, such as the
upper spacer washer/washer or the silver ring, are not required for mounting the thread
spool! Then tighten it by hand.
Warning!
Ensure that all components are correctly assembled and installed and that all screws are
tightened.
FUEL AND 2-STROKE OIL
Use unleaded gasoline with 2-stroke engine oil in a 40:1 ratio. During the first few
operations, a mixture ratio of 25:1 can be selected to initially lubricate all device parts
optimally.
WARNING: Never use pure gasoline in your engine. This will cause permanent engine
damage and voids the manufacturer's warranty for this product. Never use a fuel mixture
that has been stored for more than 90 days.
WARNING: This must be a premium oil for 2-stroke air-cooled engines. We recommend
the original FUXTEC 2T-oil "Made in Germany."
FUEL MIXTURE
Mix fuel with 2-stroke oil in a container provided for this purpose. Note the following
2
1

FUXTEC FX-PS152 Specifications

General

Type	String trimmer
Head type	Nylon line
Handle type	U-type handle
Engine power	3 hp
Product color	Black, Orange
Rotational speed	7100 RPM
Number of strokes	2
Fuel tank capacity	1.2 L
Vibration emission	9.661 m/s²
Automatic line feed	Yes
Engine displacement	52 cm³
Sound pressure level	99.5 dB
Cutting diameter (max)	440 mm
Sound power level guaranteed	113 dB
Sound power level uncertainty	3 dB
Power source	Gasoline

Weight and Dimensions

Weight	7500 g
