Charging port
Backup

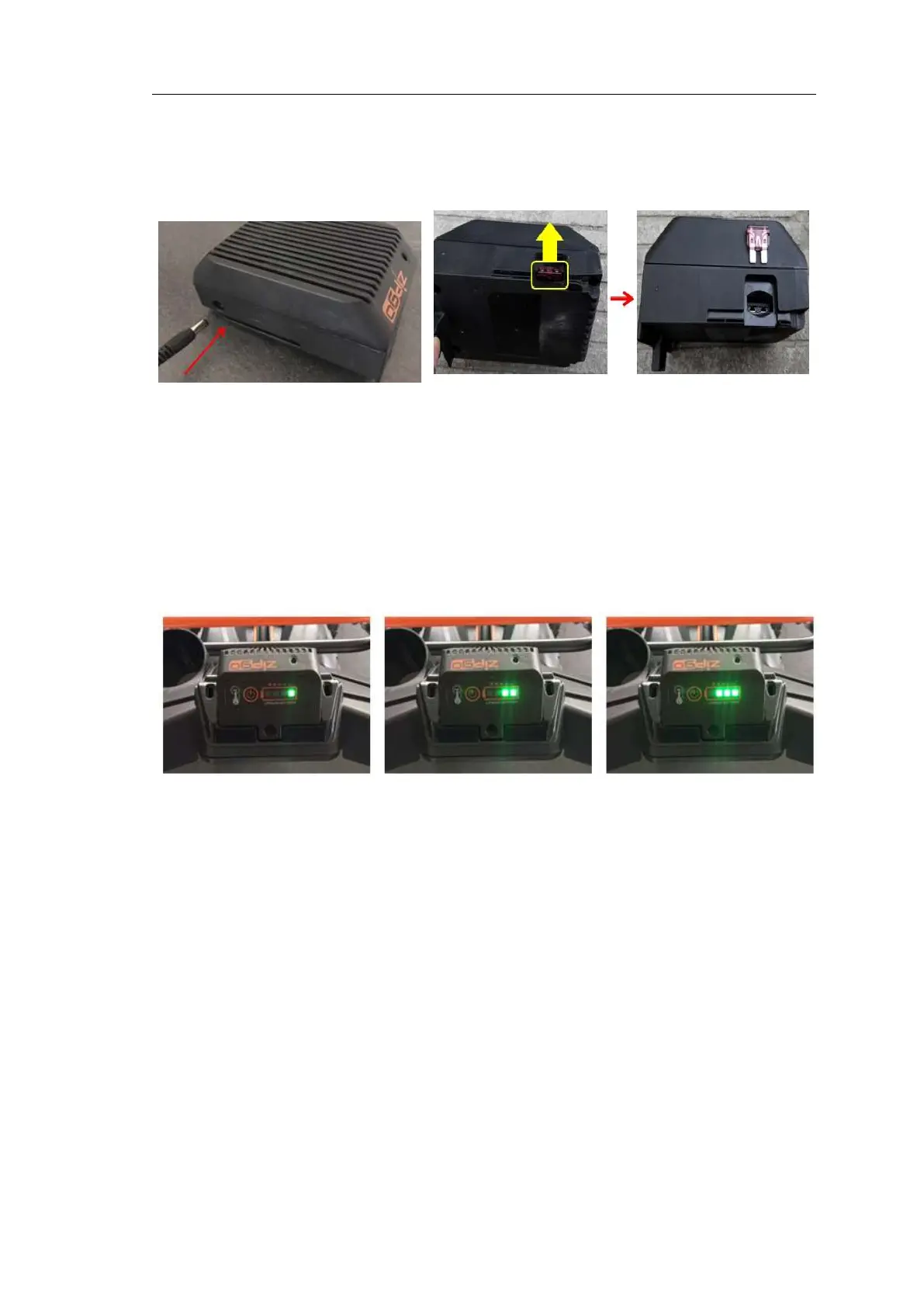

Battery Mount Model FX-RM5196eS
1. Slide the battery into the holder at the rear end of the motor
2. If necessary, charge the battery using the AC charging connector provided. This should only be necessary if the
mower has not been moved for a long time
3. If the engine does not start, check the fuse on the side of the battery
The LED lights indicate the battery's state of charge; the following notes on LED indicators should be observed:
 LED lights up red -> state of charge low
 LED flashes red -> battery alarm: fuse defect /overheating/check plug
 LED is green -> charge status is ok
 LED flashes green -> battery is charged during operation
Battery charge level:
4 LED green 100%
3 LED green 70 ~ 100%
2 LED green 40 ~ 70%
1 LED green 10 ~ 40%
1 LED red 0 ~ 10%
8. Starting / stopping the engine
Start (except FX-RM5196eS next page)
Make sure that the engine is filled with sufficient oil and gasoline before you start it.
Pull the brake lever (upper lever) against the handle and pull the starter cable slightly until resistance is felt. Then pull the
starter cable smoothly until the engine starts. On the 4646eco model, please press the primer pump 3-5 times before pulling
the starter cable to fill the carburetor with gasoline.
NOTE:
Do not operate the wheel drive lever at the same time. Only when the engine has started, and you want to use the self-
propulsion do you operate the lower lever.
Due to a protective layer on the engine, a slight smoke may be produced when you use the device for the first time. This is a
standard procedure. Pull the brake lever towards the push handle. Do not let the pull starter snapback.
