Original-Bedienungsanleitung FUXTEC Benzin-Rasenmäher FX-RM5170 / RM5170eS
42
Mounting the control panel (FX-RM5170eS)

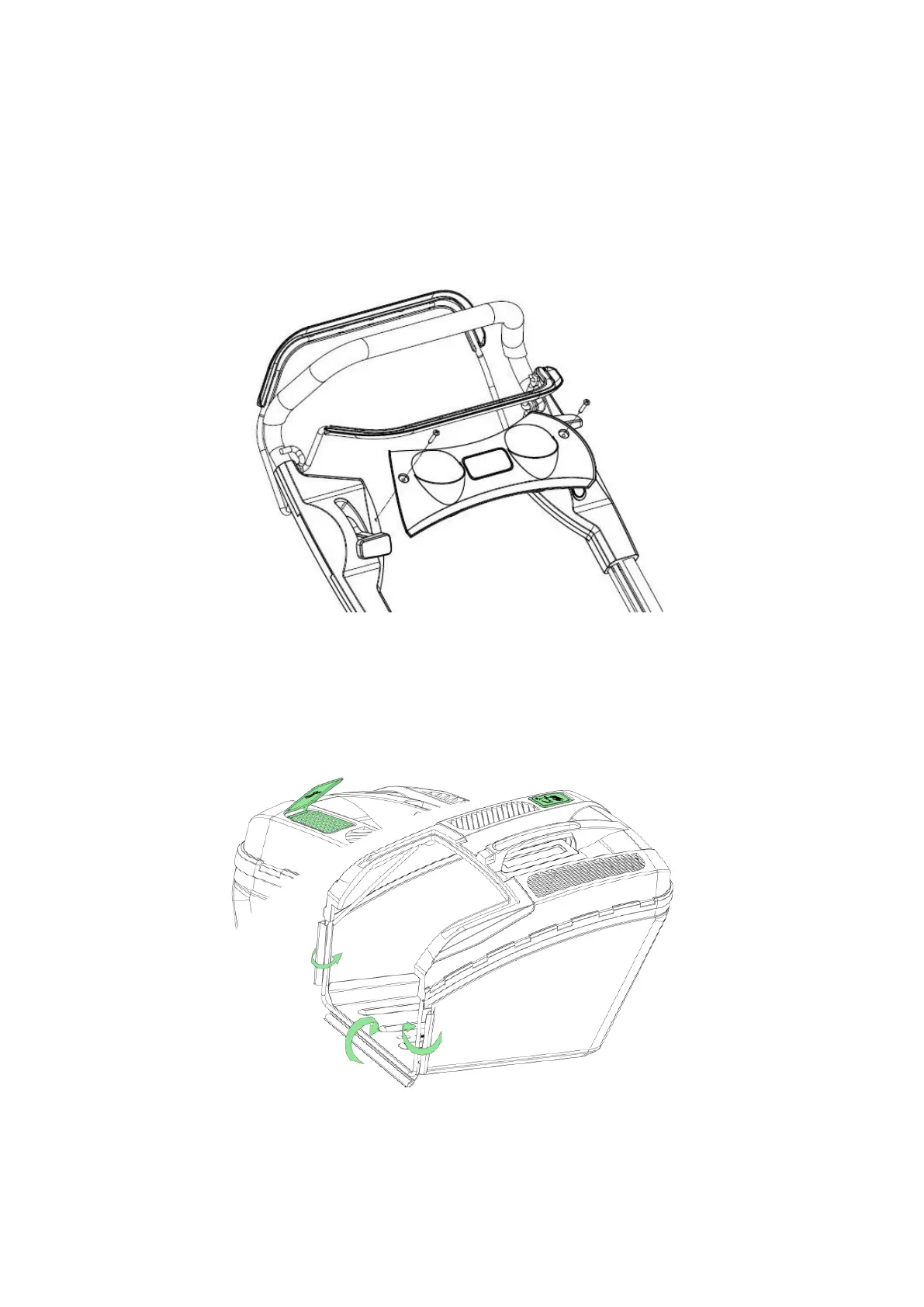

Take the control panel out of the box and fix it with the two screws supplied (see the following
picture).
Mounting the grass collector
Put the plastic edges of the basket on the frame and fix the clips, as shown below.
The grass collector box contains a level indicator that shows whether the container is full of grass and
needs to be emptied (see the following picture).
