Original-Bedienungsanleitung FUXTEC Benzin-Rasenmäher FX-RM5170 / RM5170eS
44

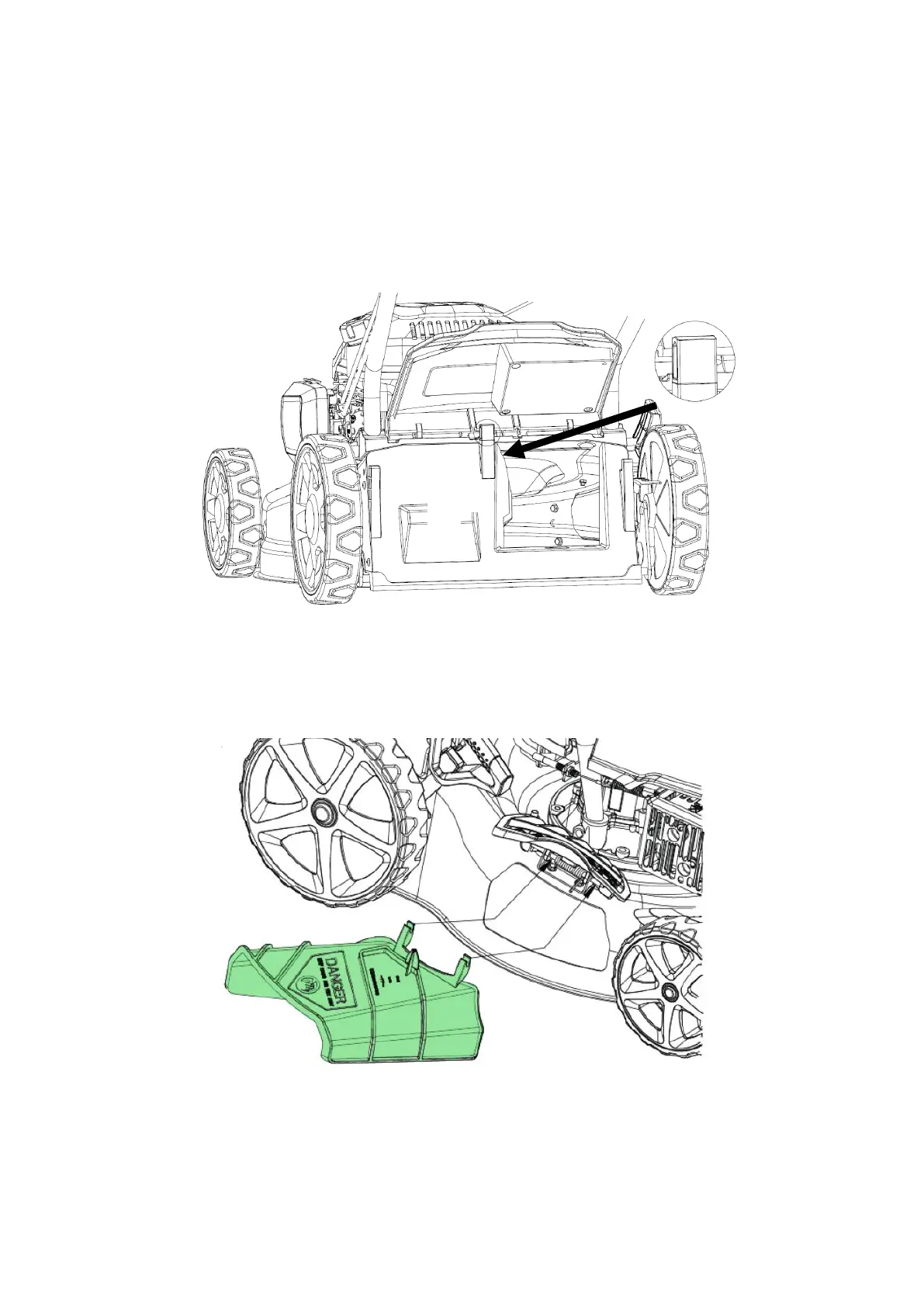

Supports/wedge for lifting and holding the tailgate
Remove the wedge/support from position 1 and install it in position 2.
Raise the rear ejector guard and install the support/wedge to hold the tailgate higher on the ejector
guard.
With the help of the support/wedge, heavy, damp grass can be ejected more efficiently from the
cutting area to the rear.
Side ejection chute
To use the side discharge, lift the cover and hook in the side discharge chute (see picture).
IMPORTANT NOTES:
Not every model has a side discharge.
If you want to mulch, the side discharge must be uninstalled beforehand.
