- 8 -
Working Temperature
and Humidity
－10℃～+50℃＜85%RH
Storage Temperature
and Humidity
－15℃～+55℃＜90%RH
Suitable for Safety
Regulations
IEC61010-1、IEC1010-2-31、IEC61557-1,5、IEC60529(IP54)
pollution grade 2、CAT Ⅲ 300V
V. Structure

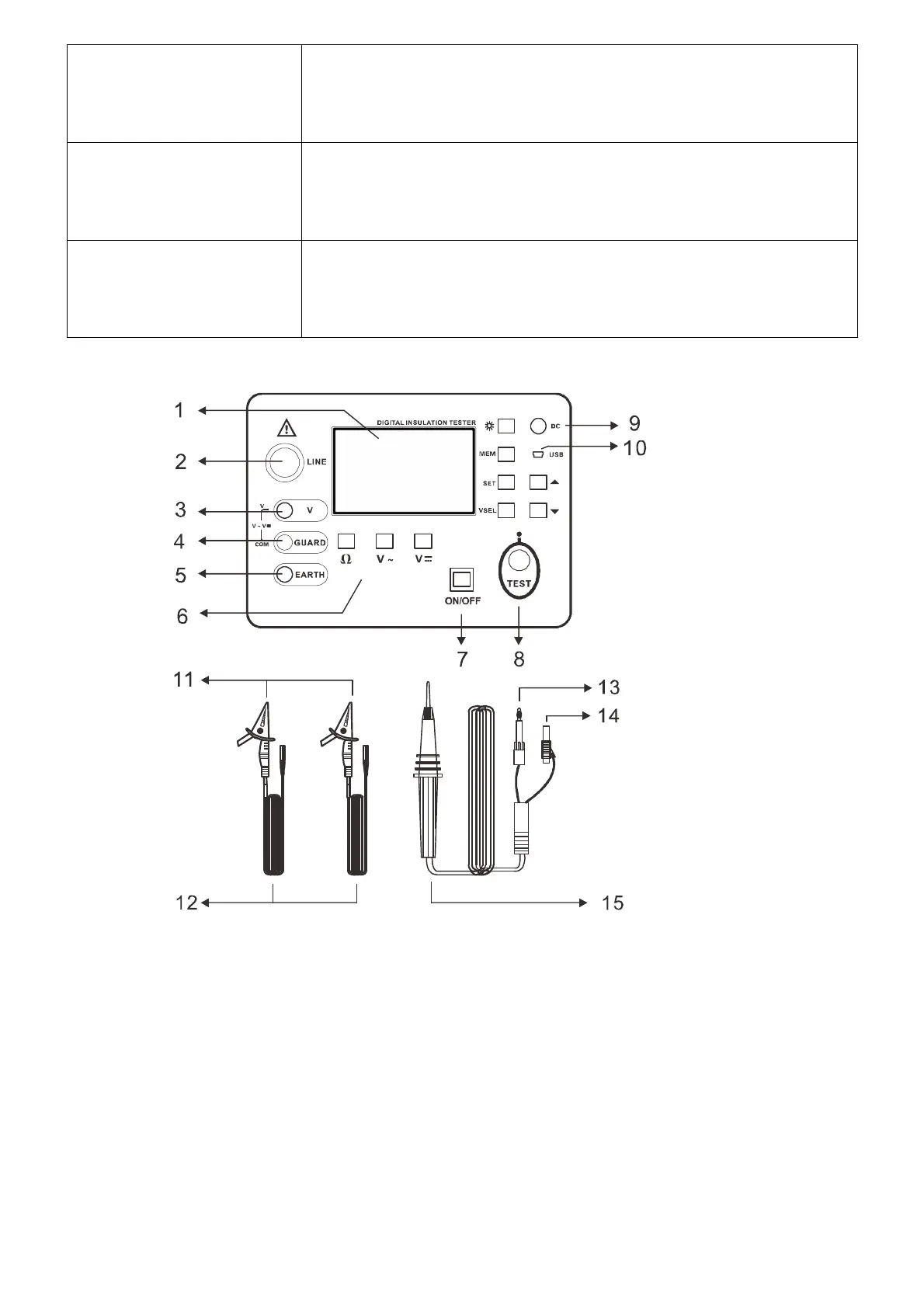

1. LCD display screen 2. LINE interface 3. V interface
4. GUARD interface 5. EARTH interface 6. Function button area
7. Power on/off button 8. Test button 9. changer interface
10.USB interface 11. Security Alligator Clip
12.Test line（green , black each 1PC）
13．High voltage test terminal banana plug into LINE interface
14.Shielded cable connector plugged into GUARD interface (no connection
required without this connector)
15.High voltage test line
