G-U ELTRAL KS 30/40 RADIO CONTROL User Manual

6
Chain drive
Installation and Operating instructions
ELTRAL KS30/40 RADIO CONTROL

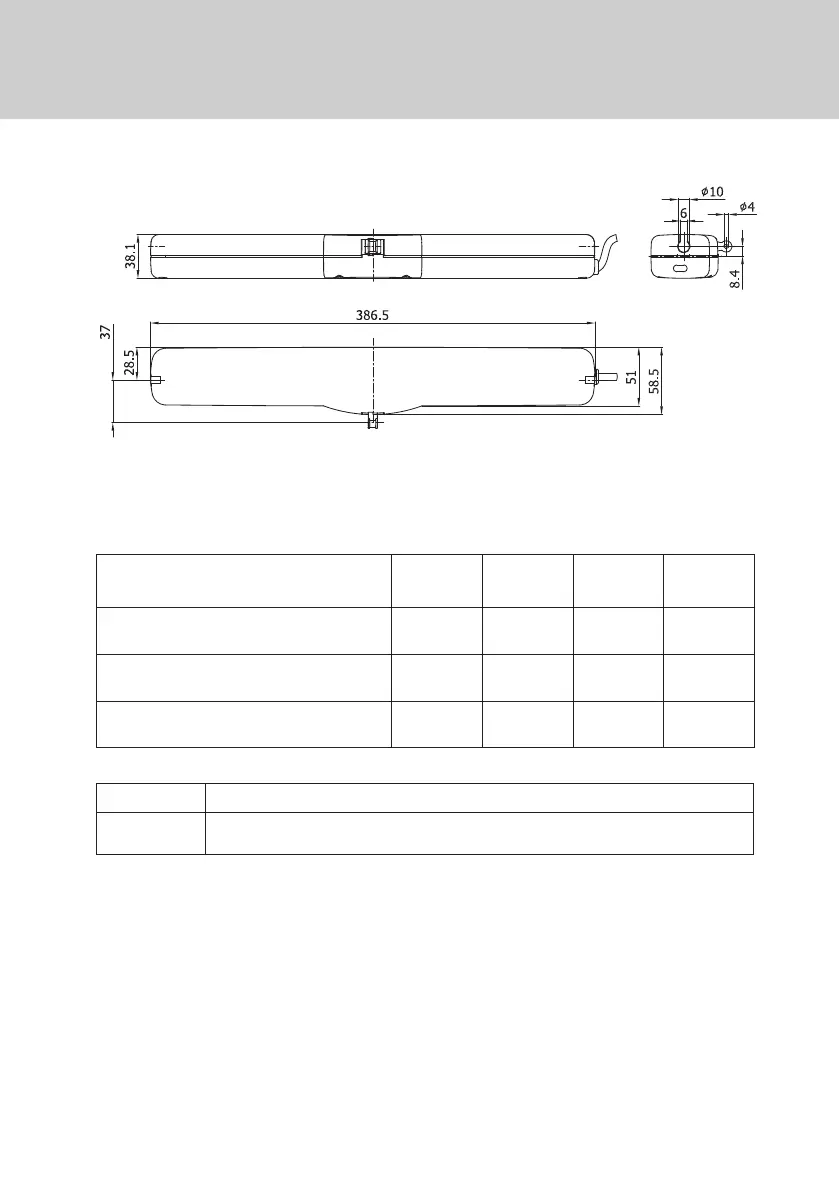

Dimensioned drawing
For the suitable sash heights of the various installation options, refer to the following table or
the diagrams in chapter Page 18.
Min. sash height
Installation method
Travel
100 mm
Travel
200 mm
Travel
300 mm
Travel
400 mm
Tilt-Only sashes (inwards), installation
on frame
250 mm 600 mm 1100 mm 1500 mm
Tilt-Only sashes (inward), installation
on sash
200 mm 400 mm 650 mm 900 mm
Top-Hung sashes (outward),
installation on frame
150 mm 250 mm 350 mm 450 mm
NOTE Smaller sash heights


Please contact us if smaller sash heights are required.
min.
