10
Chain drive
Installation and Operating instructions
ELTRAL KS30/40 RADIO CONTROL

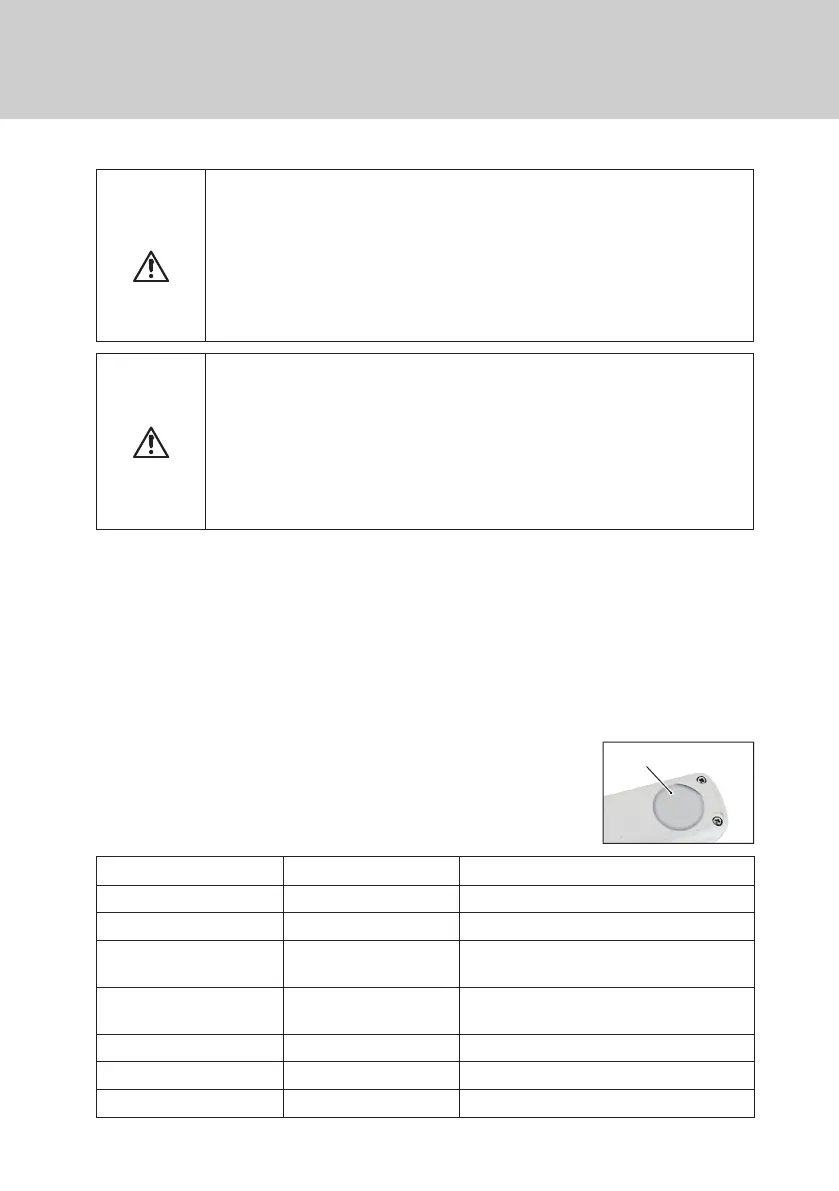

9 Electrical installation
DANGER
Risk of electric shock
Only approved electricians are permitted to carry out electrical installation
work on site.
For electrical installation on site, observe the VDE regulations (German
Electrical Engineers Association) and the requirements of the local
electricity supplier.
Disconnect all components from the mains before carrying out any
work on the installation or the control unit.
DANGER
Risk of damaging the motor beyond repair
The motor requires a 110/230 V AC connection. Other voltages will destroy
the motor.
Connect the motor accordingly.
Do not lay the motor connection cable together with a mains cable.
Never connect 24 V DC drives to a 230 V mains power supply. Danger
to life!
Low-voltage lines and power lines must be laid separately.
A two-core (230 V) connecting cable is required to connect the motor (see "Technical data").
Follow the electrical connection diagram in section "16 Connection diagram" on page 16.
For cable lengths, cable types and cable cross-sections observe the details given in the
connection diagram and under "Technical data".
Ensure that the cables are protected against shearing, kinking or twisting. If necessary
use cable ducts.
Observe the connection assignment, the permitted drive voltage (see type label), the
minimum and maximum power specifi cations (see technical data) and the mounting and
installation instructions, and strictly comply with these.
10 Operation
Meaning of LED fl ashing signals
The LED display can be seen when the cover is removed. This shows
the different operating statuses of the drive.
For the meaning of the LED fl ashing signals, refer to the following table.
Flashing signal Flashing frequency Meaning
Off Drive in inactive state, no alarm triggered
Light up continuously Function not available
Flashing for 10 seconds 1x per second Device is ready to receive a valid radio
control code
Light up for 2 seconds Light up continuously Device has stored the remote control
correctly
Flashing for 2 seconds 2x per second Device has not saved the remote control
Continuous fl ashing 2x per second Rain sensor active
Flashing for 5 seconds 2x per second Deleting the remote control memory
To reverse the running direction, the drive must be de-energized for at least 1 s.
Cover
