STEP 2

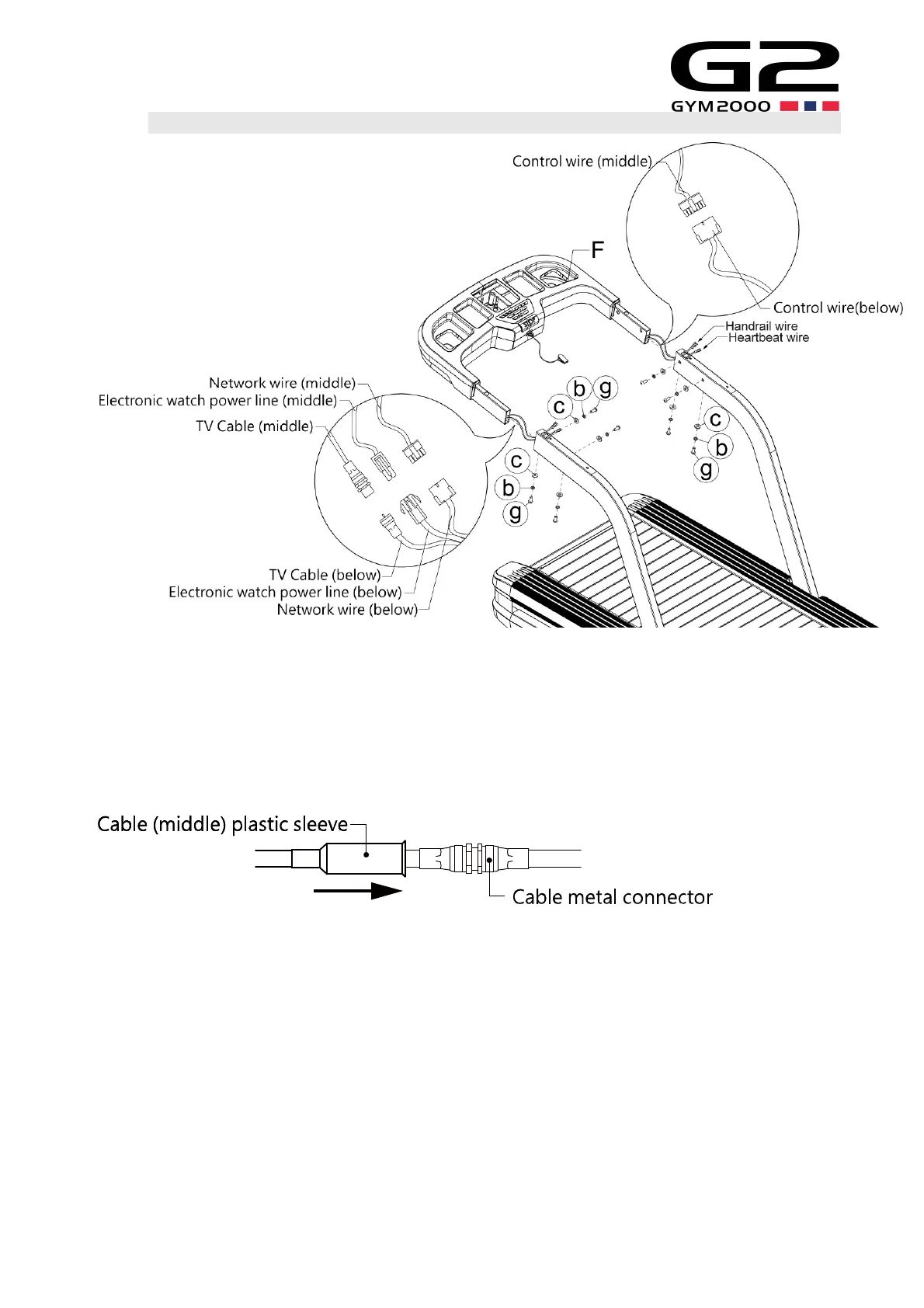

Put the water bottle shelf （F）on the left and right upright tubes, and then connect the wires from the upright tubes with the wires in the
water bottle shelf. Pull the handrail and the heart pulse wires in the water bottle shelf out from the upper holes on the left and right
tubes.
※
After connecting Cable, the Cable (middle) plastic sleeve shall be inserted into the Cable metal connector.
Lock with screw (g) and washer (b, c) but not tightly. Confirm that the water cup frame (F) is locked with all the screws of the left and
right treadmill’s hand-stand pipes and then use the tool to lock all the screws.
Please be careful not to clip the wire when assembling
