STEP 3

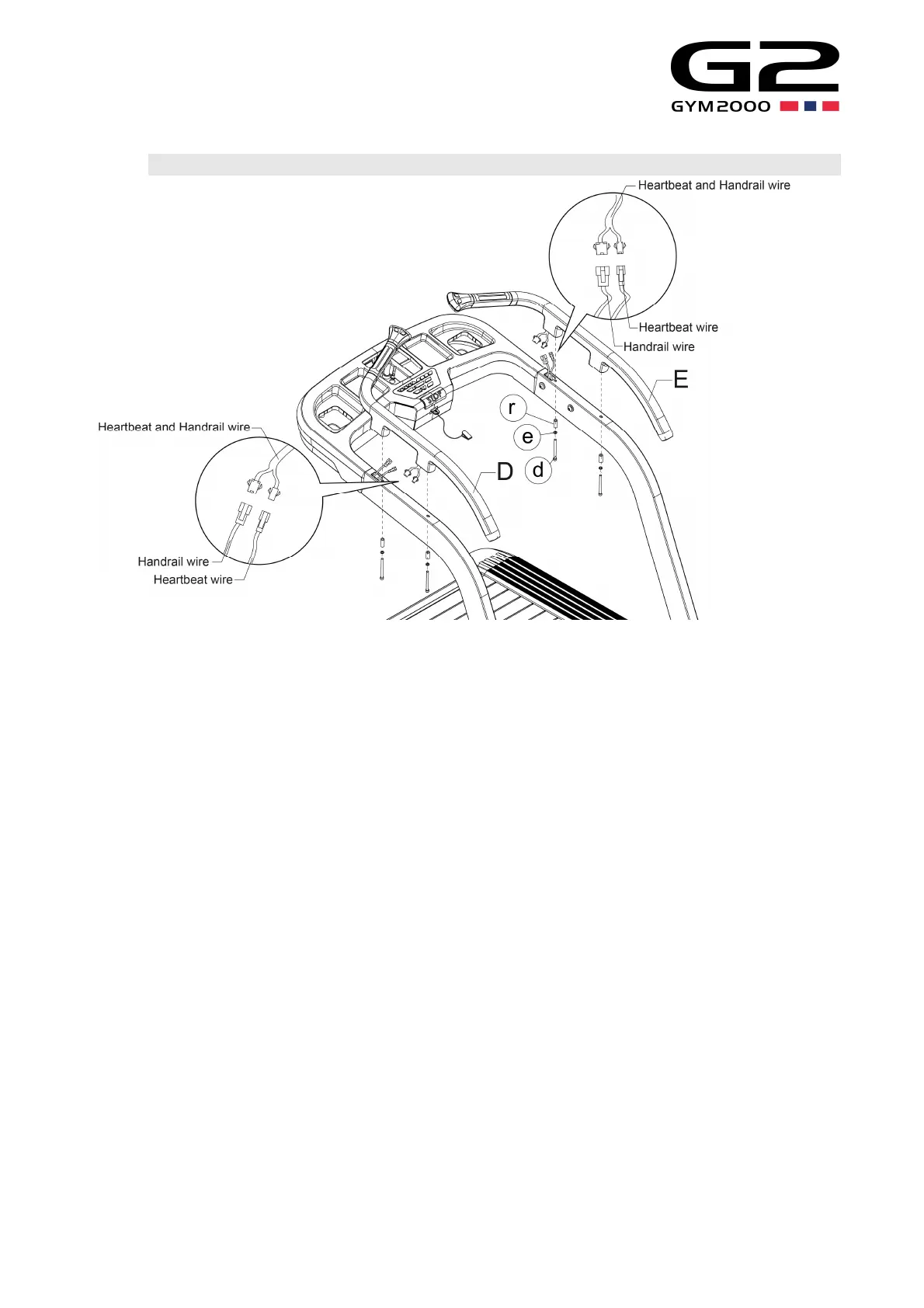

Connect the wires in the water bottle shelf with the left and right upright tubes （D、E）. After arranging, insert into the upright tubes
（D、E）.
Use screw (d), spring washer (e), Bushing (r) to lock the left and right handrail pipes (D, E) tightly as shown in the figure and fix them
on the left and right treadmill’s hand-stand pipes.
※
Please be careful not to clip the wire when assembling
