STEP 4

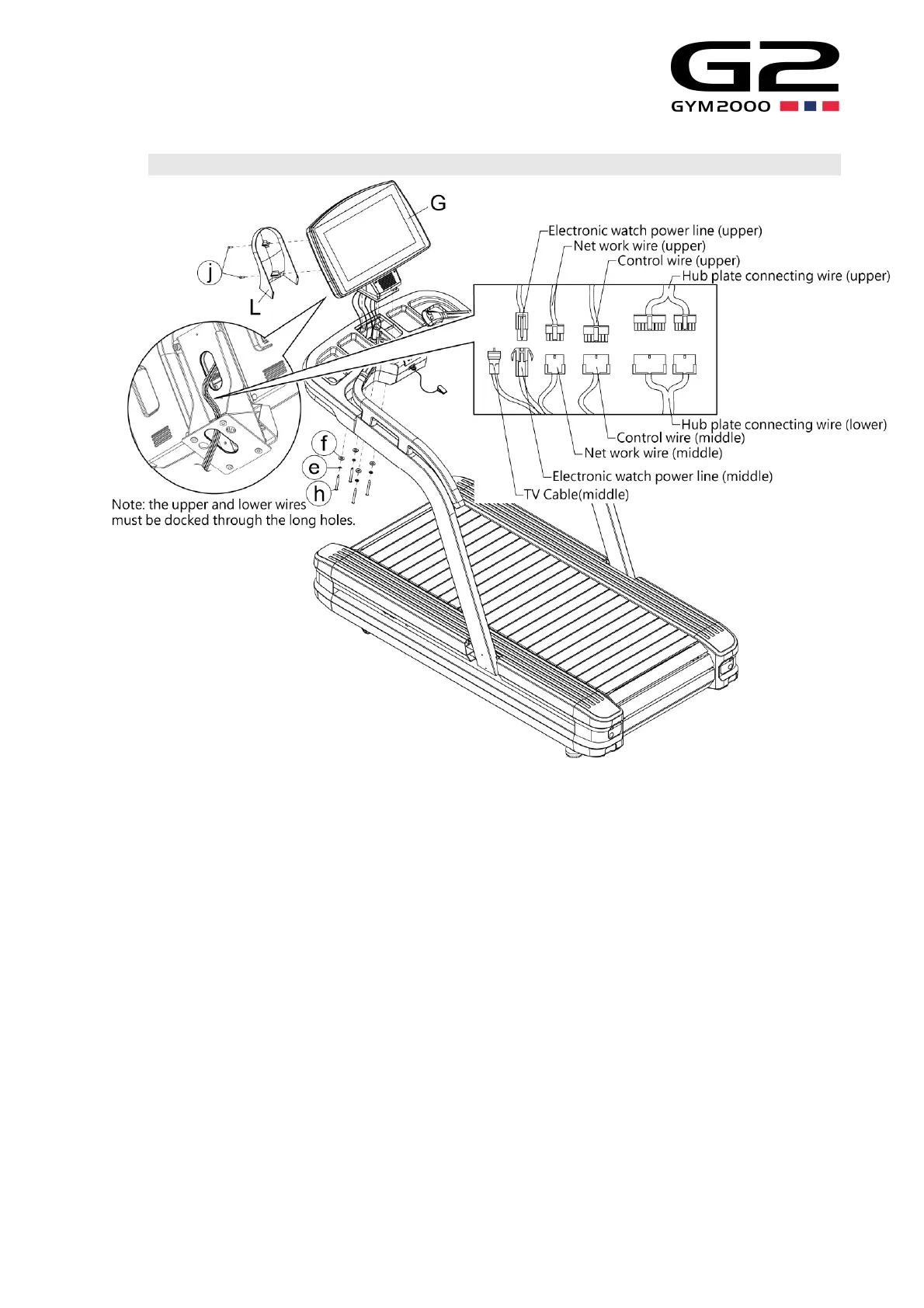

Put the Electronic meter (G) on the water cup frame previously assembled and connect the wire of the water cup frame to the wire of
the Electronic meter. Use the screw (h) and washer (e, f) to lock Electronic meter tightly and fix it on the water cup frame.
Cover the Electronic meter decorative cover (L) and lock it tightly with the screw (j), and pay attention that the cover should not be
pressed on the wire.
※
Please be careful not to clip the wire when assembling.
※
Cable is reserved for TV system, which is not needed in this model.
