3E3888 Gallagher S400 Solar Energizer User Manual

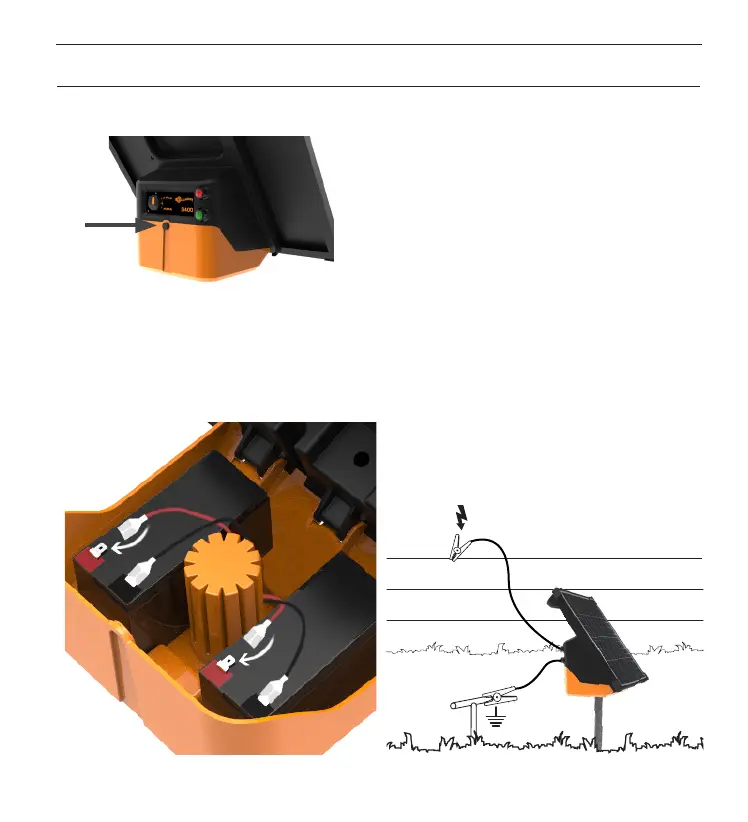

1. Open the energizer
2. Connect the baery
Note: Before connecng the baeries
ensure the power switch is in the O
posion.
3. Close cover and ghten screw
4. Install energizer
The solar panel should face towards
the equator. i.e. in the northern
hemisphere, panel faces south, in
the southern hemisphere, panel
faces north. Avoid placing in a shady
area.
5. Connect leads
a) Connect green terminal to earth
stake at least 3  (90cm) into
ground.
b) Connect red terminal to fence
line.
6. Switch energizer ON
INSTALLATION INSTRUCTIONS
3’ Earth Rod
GREEN
RED

Gallagher S400 Specifications

General

Brand	Gallagher
Model	S400
Category	Power Supply
Language	English
