TECHNICAL DATA
Power Supply: 230VAC / 50-60Hz
Frequency: 868.30 MHz
Transmitter range: 20 m indoor/200 m outdoor
Protection: IP55
Dimensions: 133x35x25 mm
QCX09 control unit for shutters and awnings is provided with a redio receiver (868.30 MHz) and a
facility for a pushbutton and a wind sensor. It is in a water resistant box with an internal antenna.
The receiver can record up to 31 different codes to identify as many transmitters.
The shutter/awning is controlled by a transmitter and/or an external standard switch (normally open).
You can also install a wind sensor GAPOSA (option) which closes the awning automatically in case of
strong wind.
Max. distance between wind sensor and QCX09 is 20 m.
CAUTION: Please don’t use these transmitters in areas with risks of radio disturbs over the norm
(i.e. airports or radio repeaters). These transmitters may also be disturbed by telecommunication
and/or transceiver systems with the same frequency.

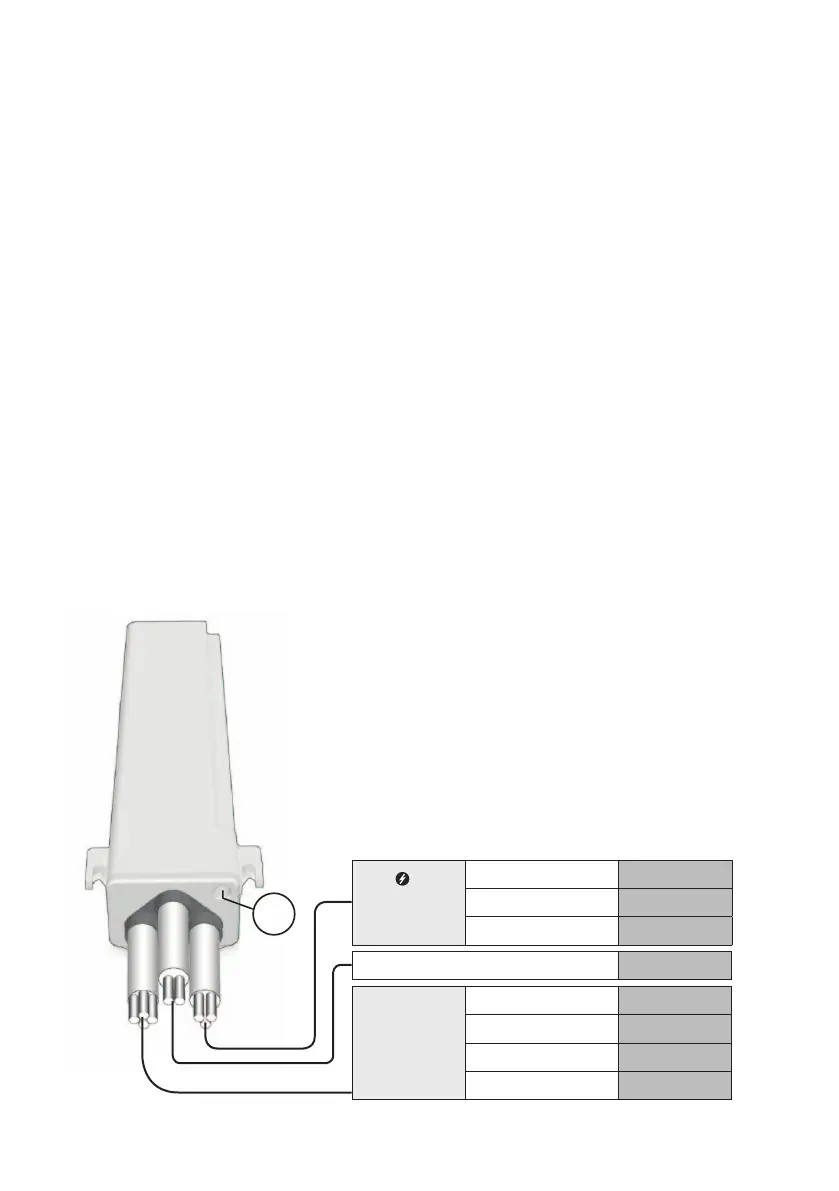

ELECTRICAL CONNECTION (Fig. 1)
Check that the power supply corresponds to the label data. Use the 3-pole cable for the net power
supply, the 4-pole cable to connect the motor and the 2-pole cable for the pushbutton connection.
WARNING! Never remove the fixing screw (A) from the cover of the output wires.
For more protection when installed outdoor, we recommend installation in vertical with cables exit
facing downwards.
A
MOTOR CABLE
Max 500 W
Direction of rotation 1 Marrone
Common Blu
Direction of rotation 2 Nero
Ground Giallo/Verde
Switch button
Brown / Blue
POWER SUPPLY
Ground
Yellow/Green
Neutral
Blue
Phase
Brown
230V~ 50/60Hz
Fig. 1
ELECTRICAL CONNECTION
To Next Page
