CHAPTER 7: VECTOR

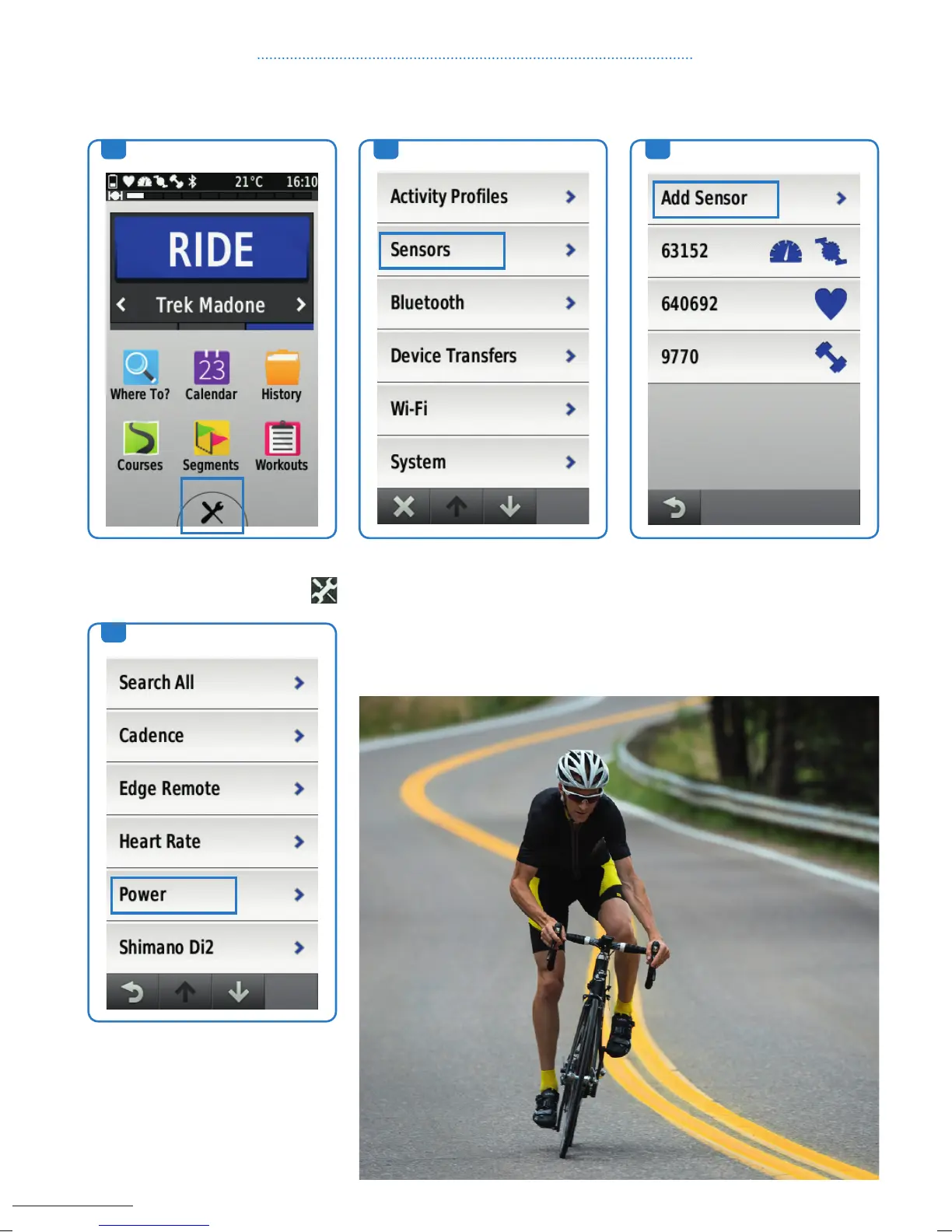

PAIRING VECTOR WITH EDGE
®
1000
When the sensor is paired with your EDGE
®
device, the sensor status
is connected. You can customize a data field to display Vector data.
1.
4.
2. 3.
1. Turn on the EDGE
®
device.
From the home screen, select
4. Select Power. Rotate the
crank arm a few times.
2. Select Sensors. 3. Select Add Sensor.
150217_Garmin_Quickguide_BIKE_GPS_Devices_RZ.indd 54 17.02.15 16:55

Garmin Edge 510 Specifications

General

Display diagonal	- \
Display resolution	176 x 220 pixels
Product color	Black
Battery life (max)	20 h
Operating temperature (T-T)	-20 - 55 °C
Manual	Yes

Weight and Dimensions

Depth	24 mm
Width	52 mm
Height	86 mm
Weight	80 g
