APPENDIX A
Some CAS messages can be display in more than one alert level group. For example, a message might display
as both a warning and a caution, but cannot appear more than once at any given time. If the received signals
justify multiple priorities for a certain message, the message is displayed for the higher priority condition.
When graduating to a higher priority, the message flashes and requires new acknowledgment. When degrading
to a lower priority condition, the message moves to the top of the appropriate grouping, but does not require
new acknowledgment.

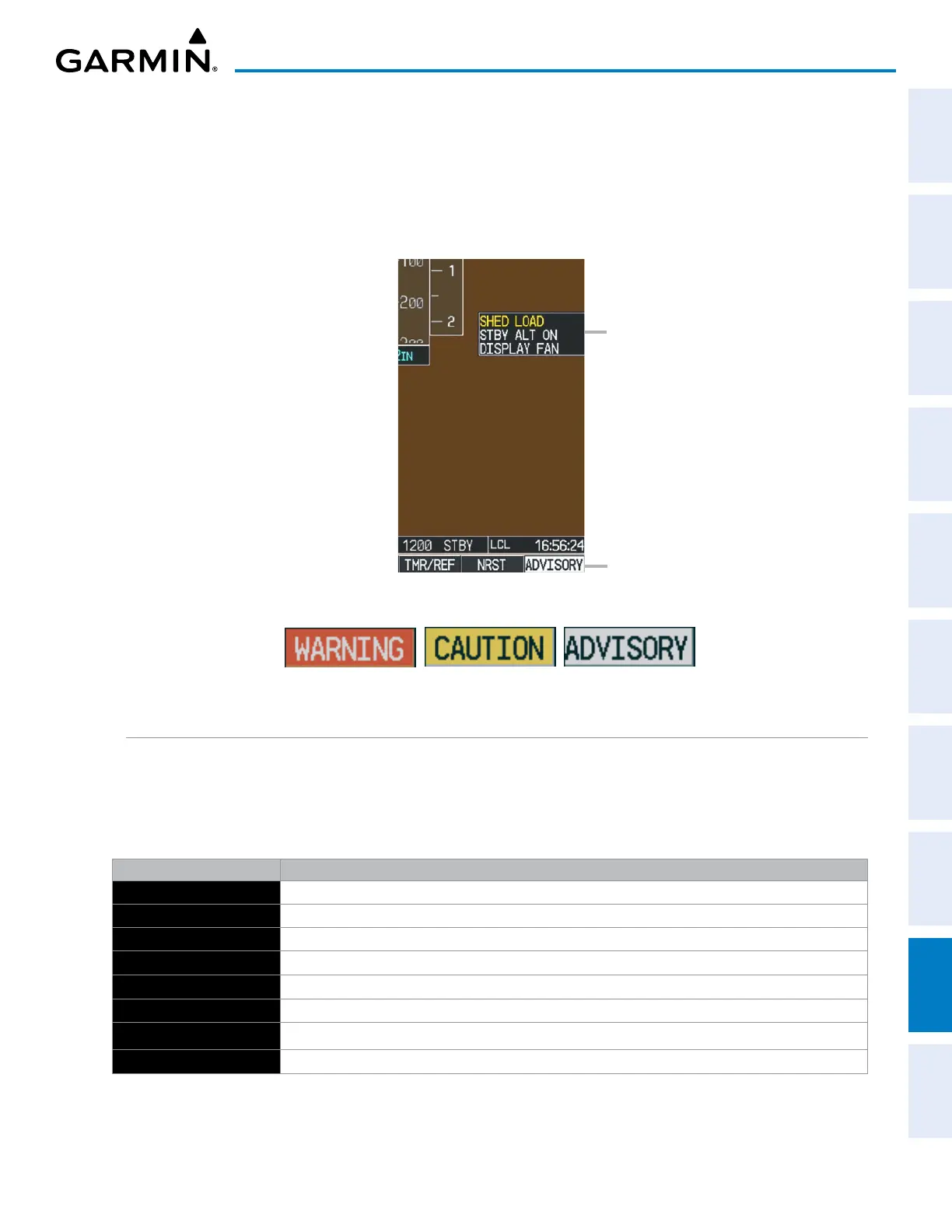

Figure A-3 Annunciation Window
CAS
Window
Softkey
Annunciation
Figure A-4 Warning, Caution, and Advisory Softkey Annunciations
CAS ANNUNCIATIONS
Red annunciation window text signifies warnings, amber signifies cautions, white signifies advisories, and
green signifies safe. See the current version of the pertinent flight manual for a list of CAS annunciations and
for recommended pilot action.
WARNING MESSAGES
Warning Messages Description
ALTNTR INOP
No output from main alternator.
CO LVL HIGH Carbon monoxide level is high
EMER BAT LOW
Emergency battery is voltage is low.
ESS BUS LOW
Essential bus voltage is less than 24.5V.
NO STBY ALT
No output from standby alternator.
OIL PRES LO
Oil pressure is below 25 psi.
OIL PRES HI
Oil pressure is above 115 psi.
STARTER ENGD
Starter is engaged.
