Page 4-4 400 SERIES INSTALLATION MANUAL
Rev Q 190-00140-02
4.1.3 P4006 (GNS 430 Only)

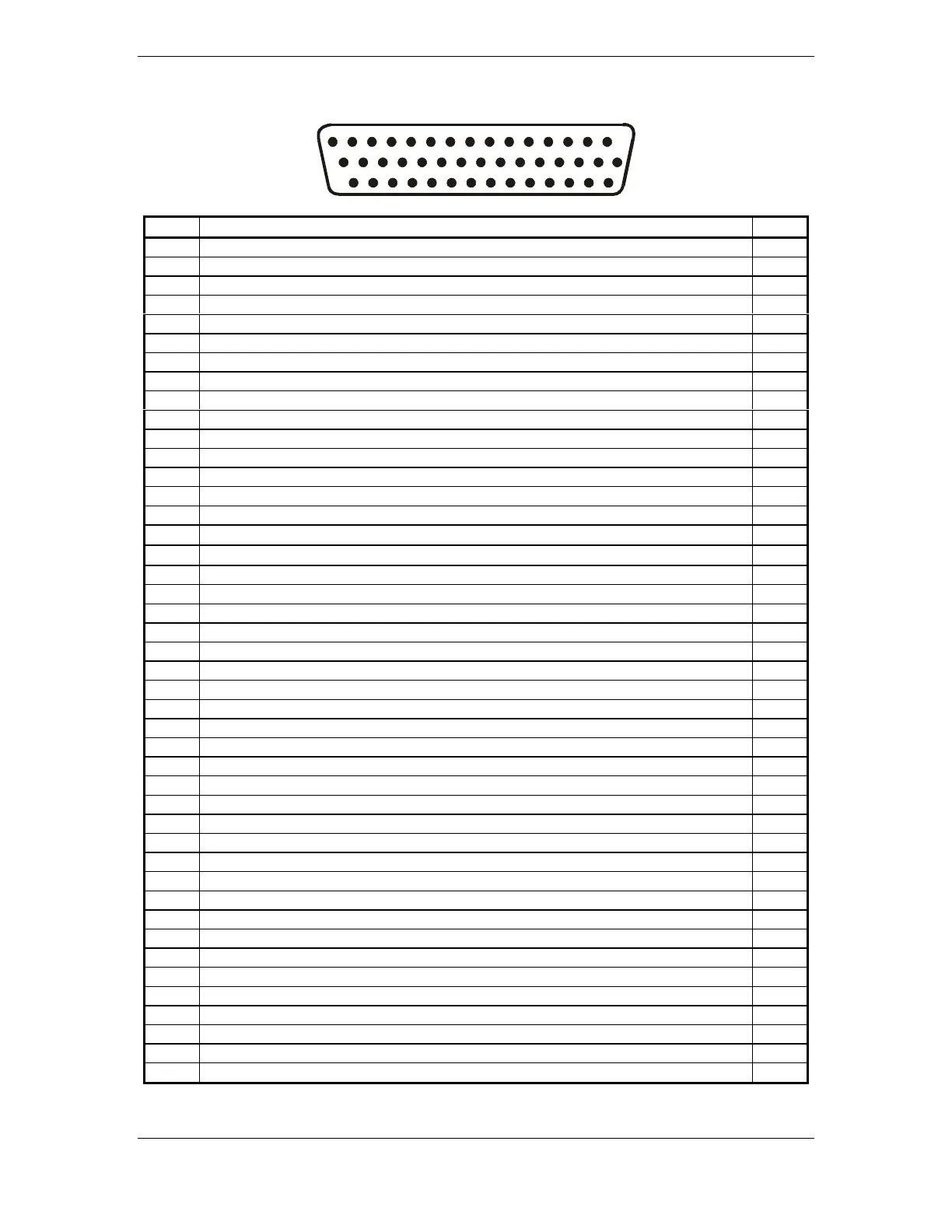

View of J4006 connector from back of unit
123456789101112131415
161718192021222324252627282930
313233343536373839
404142
43
44
Pin Pin Name I/O
1 VOR/LOC +TO Out
2 VOR/LOC +FROM (VOR/LOC COMMON) Out
3 VOR/LOC +FLAG Out
4 VOR/LOC -FLAG (VOR/LOC COMMON) Out
5 VOR/LOC +LEFT Out
6 VOR/LOC +RIGHT (VOR/LOC COMMON) Out
7 RESERVED --
8 VOR/LOC COMPOSITE OUT Out
9 VOR OBS ROTOR C Out
10 VOR OBS ROTOR H (GROUND) Out
11 VOR OBS STATOR E/G (VOR/LOC COMMON) In
12 VOR OBS STATOR F In
13 VOR OBS STATOR D In
14 PARALLEL DME - 8MHZ Out
15 VOR/LOC SUPERFLAG Out
16
500: VOR/ILS AUDIO HI
Out
17
500: VOR/ILS AUDIO LO
Out
18 SERIAL DME CLOCK Out
19 SERIAL DME DATA Out
20 SER DME - CHAN REQ/PAR DME - 4MHZ I/O
21 SER DME - RNAV MODE/PAR DME - 2MHZ I/O
22 DME COMMON In
23 VOR/ILS ARINC 429 OUT B Out
24 VOR/ILS ARINC 429 OUT A Out
25 VOR OBI CLOCK Out
26 VOR OBI SYNC Out
27 VOR OBI DATA Out
28 VLOC REMOTE TRANSFER In
29 ILS ENERGIZE Out
30 GLIDESLOPE +FLAG Out
31 GLIDESLOPE +DOWN/-FLAG (GLIDESLOPE COMMON) Out
32 GLIDESLOPE +UP Out
33 PARALLEL DME - 1MHZ Out
34 RESERVED --
35 VOR/ILS ARINC 429 IN B In
36 VOR/ILS ARINC 429 IN A In
37 PARALLEL DME - 800KHZ Out
38 GLIDESLOPE SUPERFLAG Out
39 PARALLEL DME - 400KHZ Out
40 PARALLEL DME - 200KHZ Out
41 AIRCRAFT GROUND --
42 PARALLEL DME - 100KHZ Out
43 PARALLEL DME - 50KHZ Out
44 AIRCRAFT POWER In
