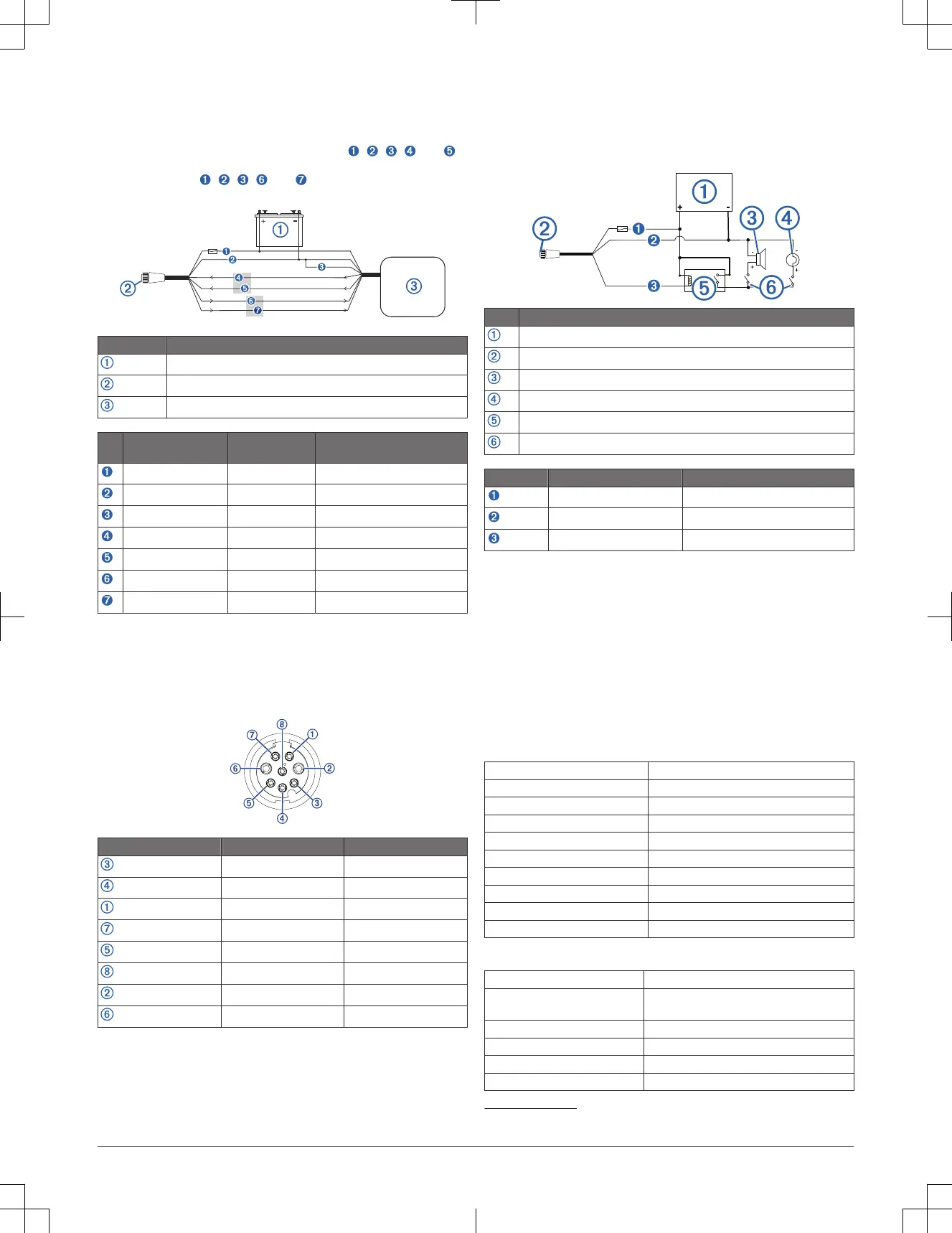

NMEA 0183 Device Connections
This diagram illustrates two-way connections for both sending and receiving
data. You can also use this diagram for one-way communication. To receive
information from a NMEA 0183 device, refer to items
, , , , and
when connecting the Garmin device. To transmit information to a NMEA 0183
device, refer to items , , , , and when connecting the Garmin
device.
Item Description
Power source
Power/NMEA 0183 cable
NMEA 0183 device
Item Garmin Wire Function Garmin Wire
Color
NMEA 0183 Device Wire
Function
Power Red Power
Power ground Black Power ground
Data ground Black Data ground
Rx/A (In +) Brown Tx/A (Out +)
Rx/B (In -) Violet Tx/B (Out -)
Tx/A (Out +) Blue Rx/A (In +)
Tx/B (Out -) Gray Rx/B (In -)
If the NMEA 0183 device has only one input (receive, Rx) wire (no A, B, +, or
-), you must leave the gray wire unconnected.
If the NMEA 0183 device has only one output (transmit, Tx) wire (no A, B, +, or
-), you must connect the violet wire to ground.
NMEA 0183 and Power Cable Pinout
Pin Number Wire Function Wire Color
NMEA 0183 Tx/A (Out +) Blue
NMEA 0183 Rx/A (In +) Brown
NMEA 0183 Tx/B (Out -) Gray
NMEA 0183 Rx/B (In -) Violet
Alarm Yellow
Accessory on Orange
Ground (shield) Black
VIN Red
Lamp and Horn Connections
The device can be used with a lamp, a horn, or both, to sound or flash an alert
when the chartplotter displays a message. This is optional, and the alarm wire
is not necessary for the device to function normally. When connecting the
device to a lamp or horn, observe these considerations.
• The alarm circuit switches to a low-voltage state when the alarm sounds.
• The maximum current is 1 A, and a relay is needed to limit the current from
the chartplotter to 1 A.
• To manually toggle visual and audible alerts, you can install single-pole,
single-throw switches.
Item Description
Power source
Power cable
Horn
Lamp
Relay (1 A coil current)
Toggle switches to enable and disable lamp or horn alerts
Item Wire Color Wire Function
Red Power
Black Ground
Yellow Alarm
Composite Video Considerations
This chartplotter allows video input from composite video sources using the
port labeled CVBS IN. When connecting composite video, you should observe
these considerations.
• The CVBS IN port uses a BNC connector. You can use a BNC to RCA
adapter to connect a composite-video source with RCA connectors to the
CVBS IN port.
• Video is shared across the Garmin Marine Network, but it is not shared
across the NMEA 2000 network.
Specifications
All Models
Temperature range From -15° to 50°C (from 5° to 122°F)
Material Polycarbonate plastic and die-cast aluminum
Water rating IEC 60529 IPX7
1
Input voltage From 10 to 32 Vdc
Fuse 6 A, 125 V fast-acting
NMEA 2000 LEN @ 9 Vdc 2
NMEA 2000 draw 75 mA max.
Compass-safe distance 65 cm (25.5 in.)
Memory card 2 SD
®
card slots; 32 GB max. card size
Wireless frequency, transmit power 2.4 GHz @ 15.26 dBm maximum
10x2 Models
Dimensions (W x H x D) 31.8 x 18.5 x 6.9 cm (12.5 x 7.3 x 2.7 in.)
Display size (W x H) 22.4 x 12.5 cm (8.8 x 4.9 in.)
10.1 in. diagonal
Weight 1.85 kg (4.1 lb.)
Max. power usage at 10 Vdc 32.4 W
Typical current draw at 12 Vdc 1.9 A
Max. current draw at 12 Vdc 2.7 A
1
The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more
information, go to www.garmin.com/waterrating.
4
