INSTALLATION INSTRUCTIONS
GPSMAP 2106/2110 & GPS 17

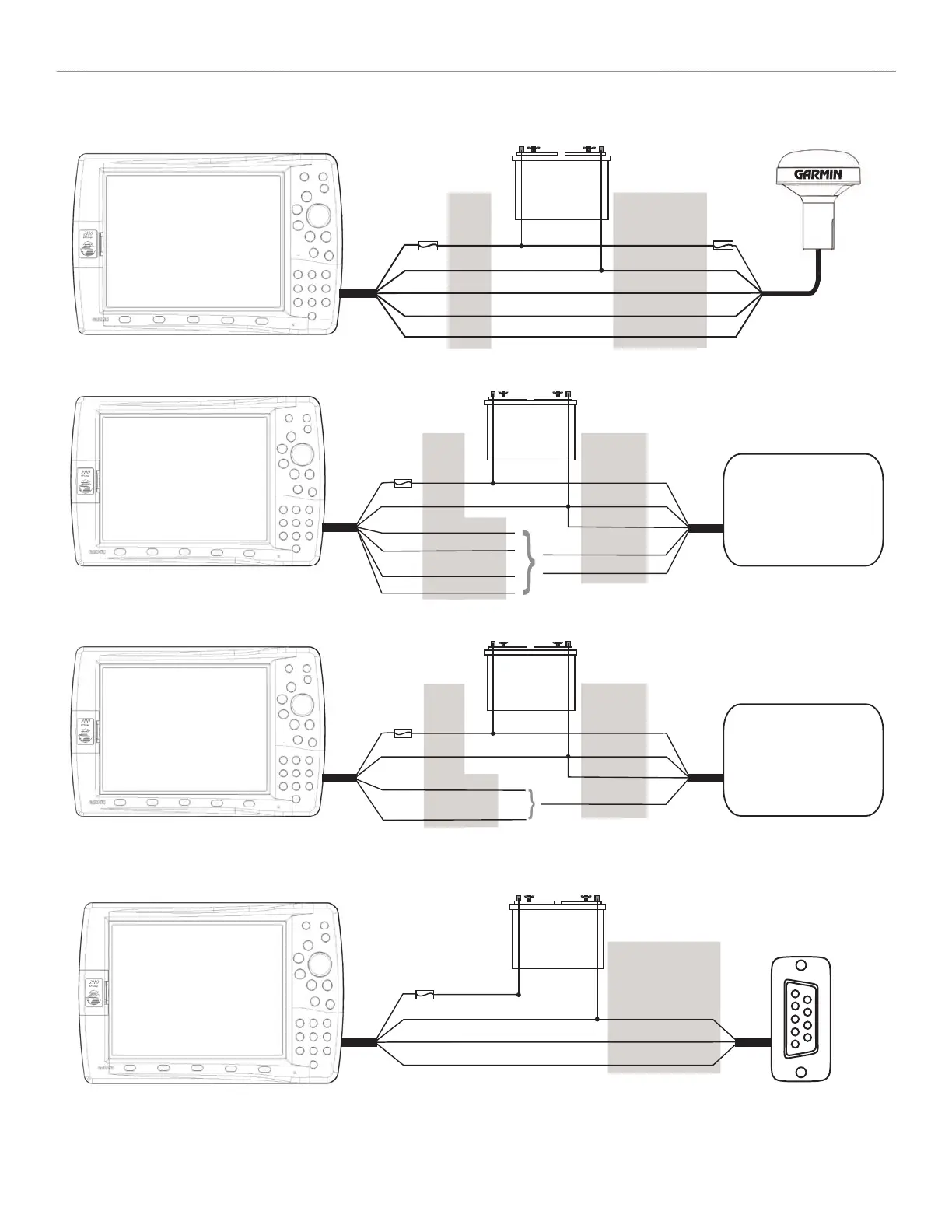

GPSMAP 2106/2110 and GPS 17 Basic Wiring
WIRE
COLOR
GPS 17
GPS/WAAS SENSOR
BLACK (GROUND)
YELLOW (ON)
RED (POWER)
BLUE (DATA IN)
BLACK
ORANGE
RED
GREEN
WHITE


+
-
WHITE (DATA OUT)
WIRE
COLOR
BATTERY
10-33 VOLTS DC
3 A
FUSE
1 A
FUSE




+
-
































GPSMAP 2106/2110 and NMEA Device with Sonar Output or VHF Radio with DSC
+
-

























GPSMAP 2106/2110 and NMEA Device/AUTOPILOT










+
-











8










GPSMAP 2106/2110 with a PC Serial Port

Garmin GPSMAP 2110 Specifications

General

Sport (fitness, running)	No
Marine (chartplotters, sounders)	Yes
Routes quantity	50
Number of waypoints	3000
Form factor	Plug-in
Display resolution	640 x 480 pixels

Weight and Dimensions

Depth	83 mm
Width	333 mm
Height	224 mm
Weight	2270 g
