49
GETTING START-
ED
Using the GOTO
Key

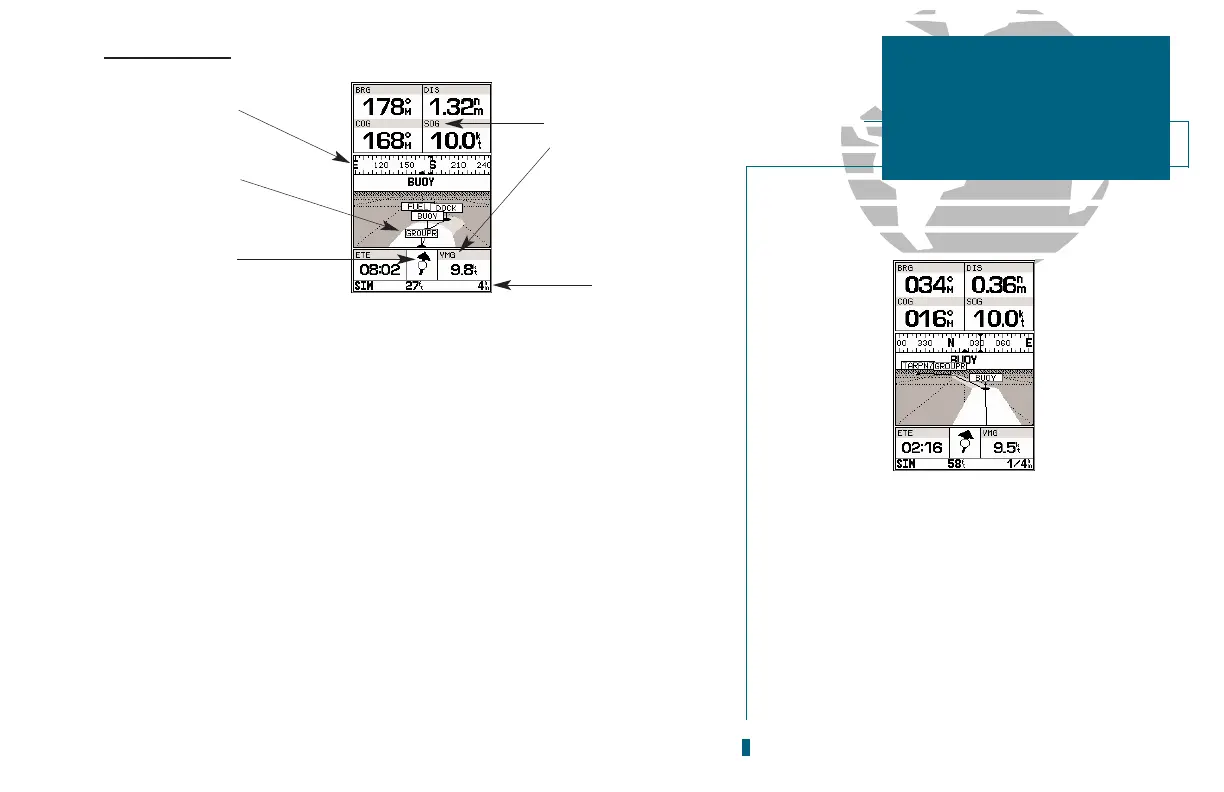

Navigation Page
Whenever a GOTO, MOB, TracBack or route has been turned on, the sounder
will provide digital and graphic steering guidance to the destination with the
Navigation Page. The top half of the Navigation Page features four user-selectable
data fields that display the bearing (BRG) and distance (DIS) to waypoint, along
with your current course (COG) and speed over ground (SOG). In addition, there
is a moving compass tape to indicate your direction. Two additional data fields at
the bottom of the page show the estimated time enroute (ETE) and velocity made
good (VMG) to your destination.
The middle section of the screen provides visual guidance to the waypoint on a
graphic highway display. The line down the center of the highway represents
your desired track, while a graphic indication of the distance and direction you
are off course is shown on a scale at the bottom-right of the page (the selected
scale represents the distance from side to side). The arrow pointer below the
highway always points to the destination waypoint relative to the direction you
are moving.
SECTION
5
NAVIGATION PAGE
Overview
Data
Fields
CDI
Scale
Graphic
Highway
Compass
Tape
Pointer to
Waypoint
The Navigation Page can be configured to show the
active waypoint, all route waypoints and or nearby
waypoints on the graphic highway.
19000138.10A.QXD 11/11/99 8:47 AM Page 49
