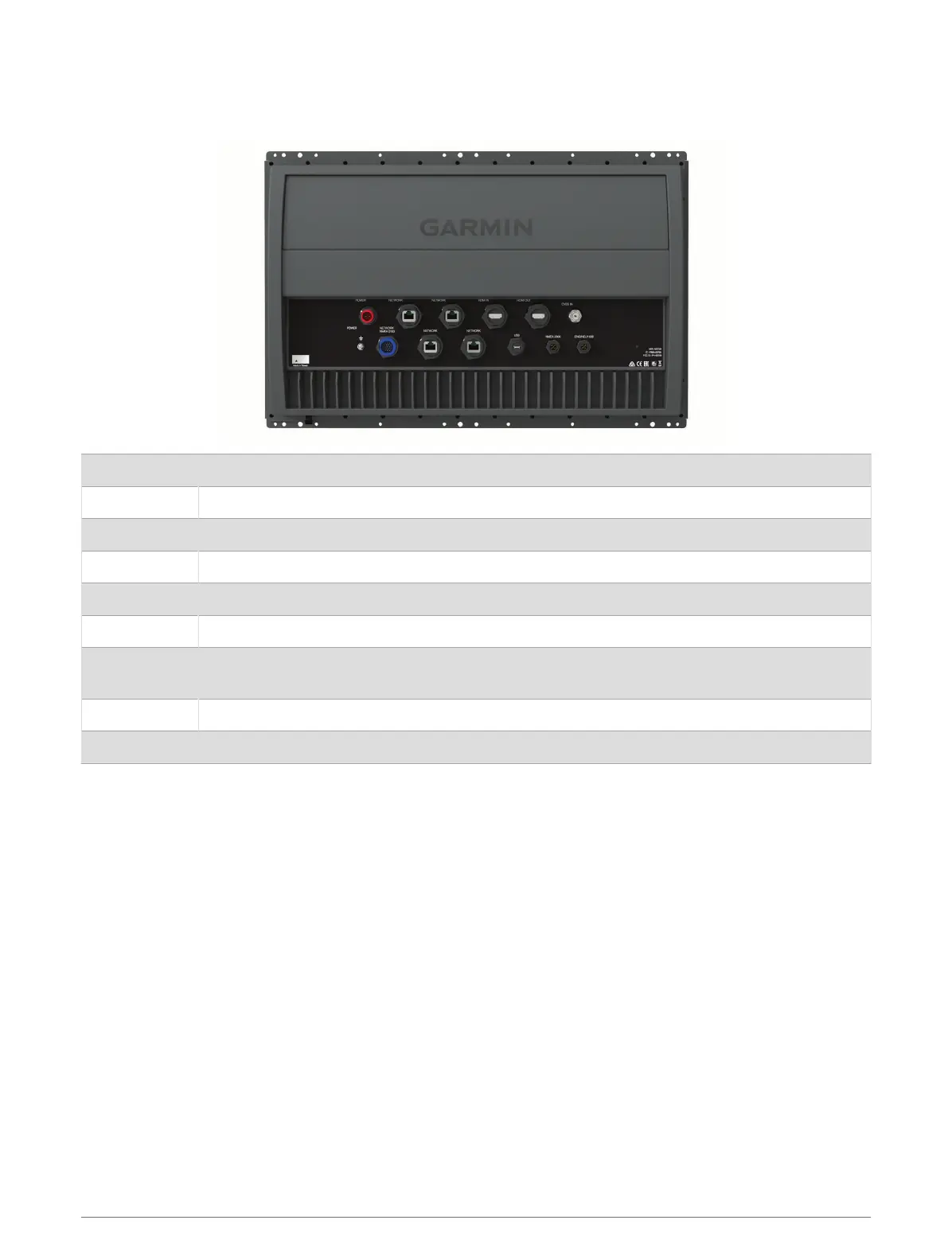

Connector View (8x17, 8x22, and 8x24 models)
The connectors and locations vary based upon the model. A GPSMAP 8622 model is shown below.
POWER Power
NETWORK Garmin Marine Network
HDMI IN HDMI in
HDMI OUT HDMI out
CVBS IN Composite video in
NMEA 0183 NMEA 0183 and audio out
USB
Micro-USB to connect a compatible Garmin card reader, or to connect and control a computer
using the chartplotter touchscreen
NMEA 2000 NMEA 2000 network
ENGINE/J1939 J1939 engine network
Introduction 5
