Connector Pinout Information
190-01499-02 GTX 3X5 Transponder TSO Installation Manual
Rev. 9 Page 5-5
5.2 ADS-B Board Connector - J3252 (GTX 345 Only)

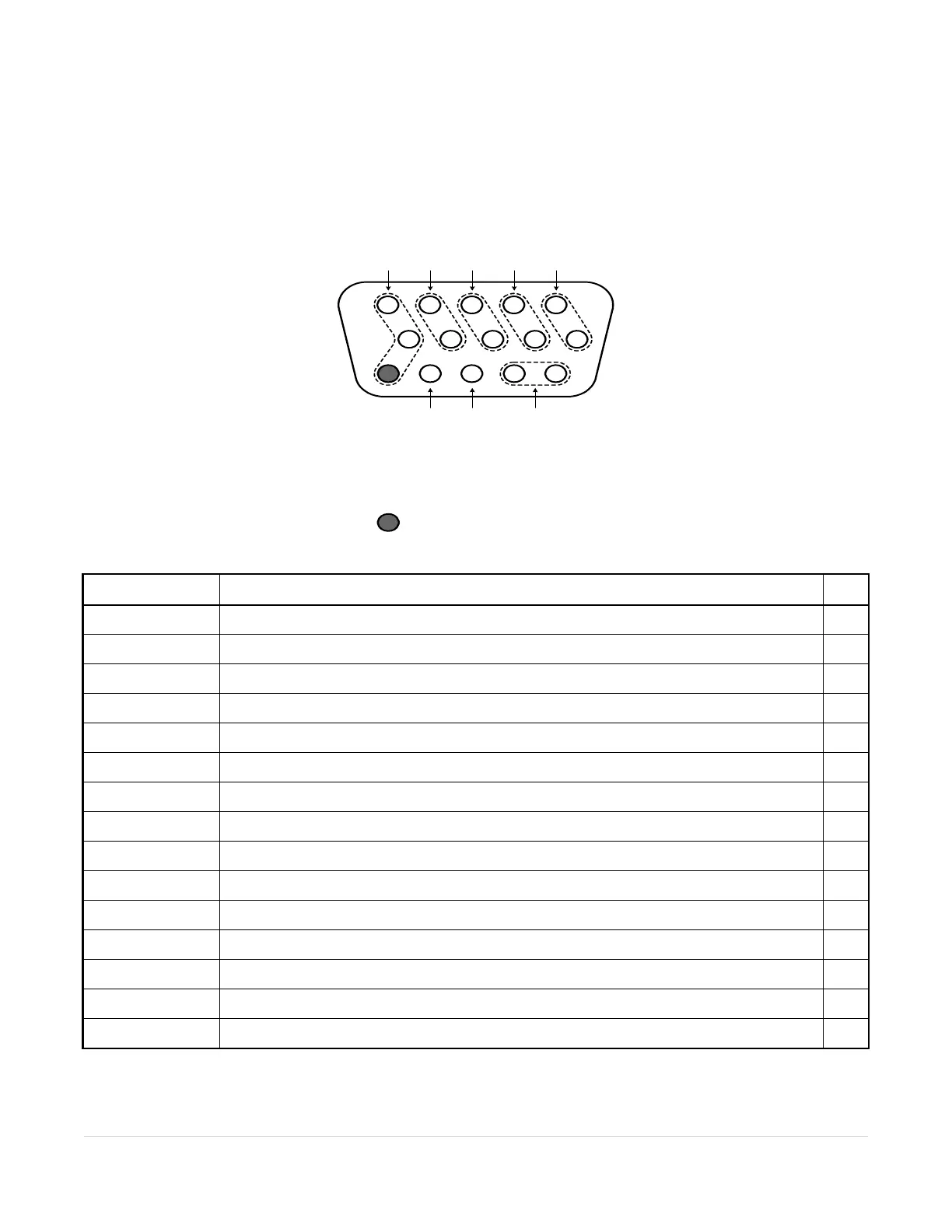

Table 5-2 J3252 Connector
An asterisk (*) following a signal name denotes the signal is an Active-Low discretes.
Pin Pin Name I/O
1 ETHERNET OUT 1B O
2 ETHERNET IN 1B I
3 ETHERNET OUT 2B O
4 ETHERNET IN 2B I
5 RS-232 OUT 4 O
6 ETHERNET OUT 1A O
7 ETHERNET IN 1A I
8 ETHERNET OUT 2A O
9 ETHERNET IN 2A I
10 RS-232 IN 4 I
11 RS-422 A O
12 RS-422 B O
13 CONFIGURABLE DISCRETE 11* I/O
14 CONFIGURABLE DISCRETE 12* I/O
15 RS-232 GND 4 --
P
NNT NN
PR PP
5
10
Ground
B
I/OI/O
A15
1
ETHERNET OUT 1
6
11
RS-232 OUT
ETHERNET OUT 2
ETHERNET IN 2
ETHERNET IN 1
Discrete I/O (11)
Discrete I/O (12)
RS-422
VIEW IS LOOKING AT THE BACK
OF THE UNIT
To Next Page
