DETECTOR ASSEMBLY
4
Garrett Metal Detectors ACE 200
™
5

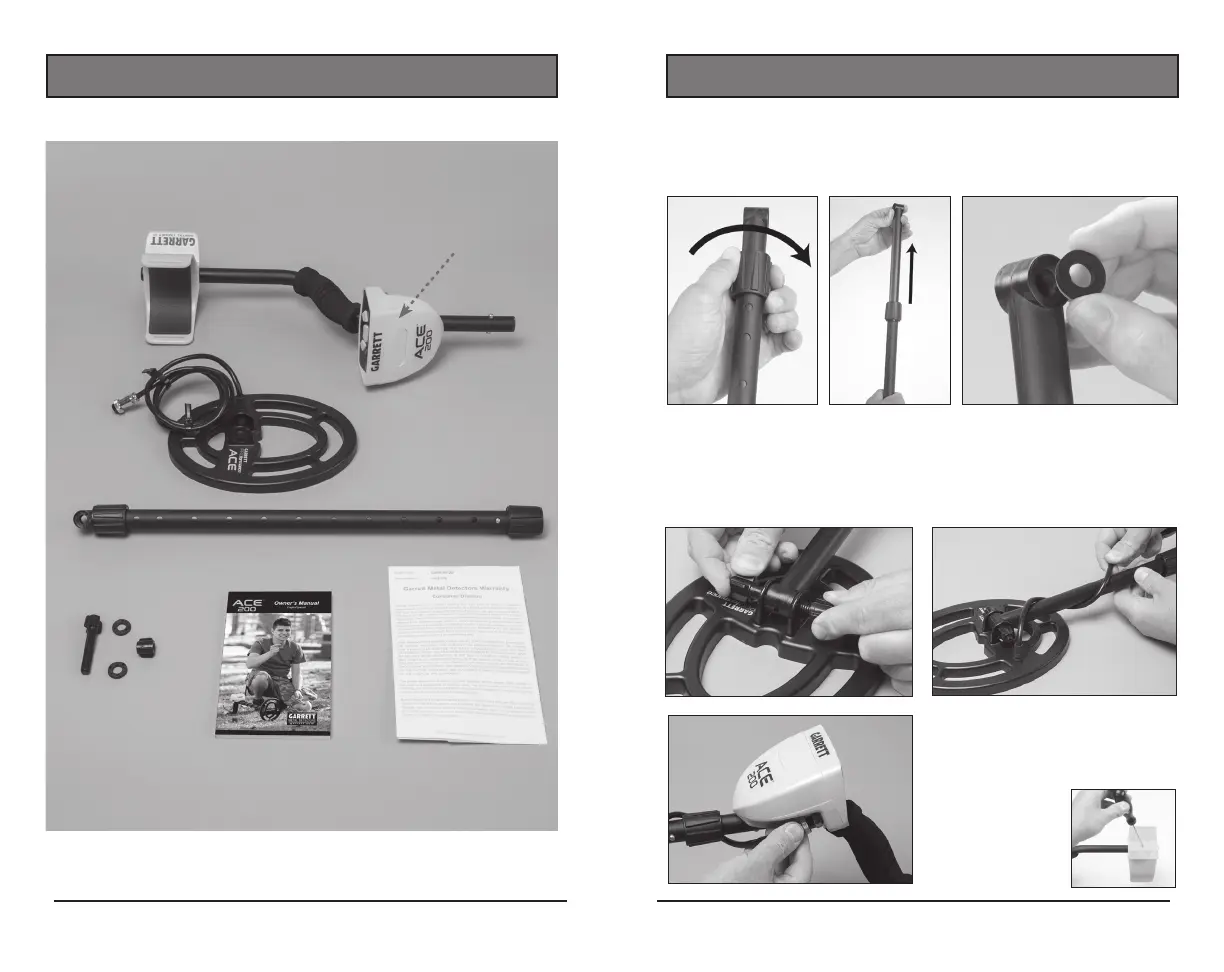

ACE 200 CONTENTS
If any part is missing, please contact Garrett Customer Service.
Nut, bolt,
mounting washers
Batteries
installed
Control housing with
S-shaped stem
Searchcoil
Upper, lower
stem (connected)
Warranty card
Manual
Loosen lower camlock and extend lower stem. Insert mounting
washers, connect searchcoil to stem as shown, and hand-
tighten wing nut.
Loosen upper camlock, insert S-stem with control housing,
adjust lower stem to comfortable length, and hand-tighten
the camlocks. Wrap cable snugly around the stem with the
first turn of the cable over the stem.
Note: The arm cuff can be
adjusted by removing the screw
on the bottom and moving it to
the other hole.
