Installation and Operation Manual
Argos - Pressure Regulating Valve
MI-23
Elaborado Verificado / Aprovado CSQ Data Revisão Página
JJ
VBL JM 13/02/19 07 16 de 32

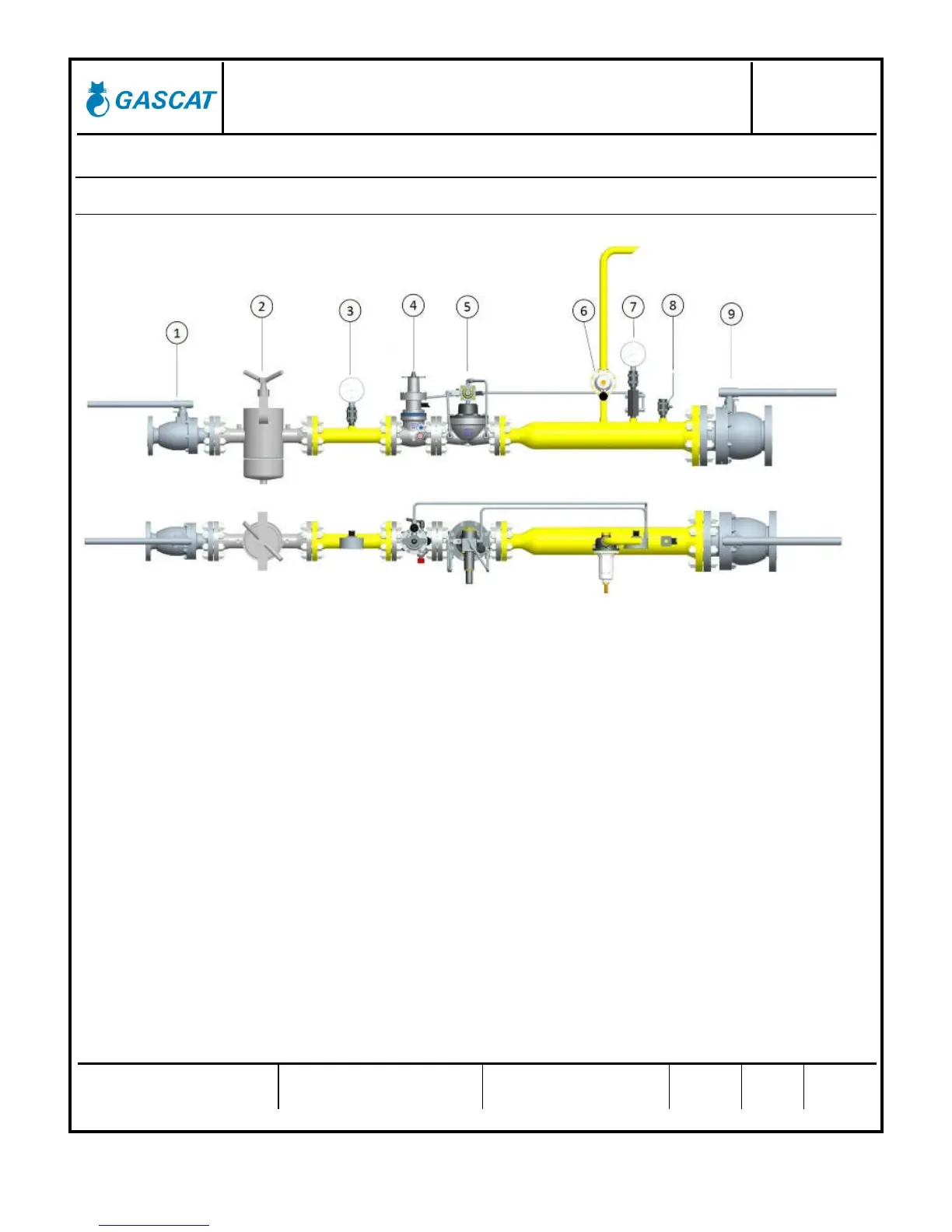

4.5 RECOMMENDED INSTALLATION SCHEME
4.5.1 SINGLE REGULATOR
1 – Inlet ball valve (or similar)
2 – Cartridge filter Metrius with 5 micron
3 – Inlet pressure gauge
4 – Slam shut valve with fail close actuator model GIPS-FC
5 – Pressure regulator model ARGOS
6 – Partial pressure relief valve CH Relief
7 – Outlet pressure gauge
8 – Vent valve
9 – Outlet ball valve (or similar)
Notes:
1) The position of sensing line can be inferior than 5 times if the project of installation had been analised and
approved by GASCAT engineering.
2) Other option of insllation is the utilization of a pipe in parallel to connect all sensing lines close of respective
equipment. Some advantages of this configuration are:
a. More practicity during maintenance.
b. Pneumatic signal with better quality (stable).
c. Reduction of damages in the tubings during maintenance and transport.
